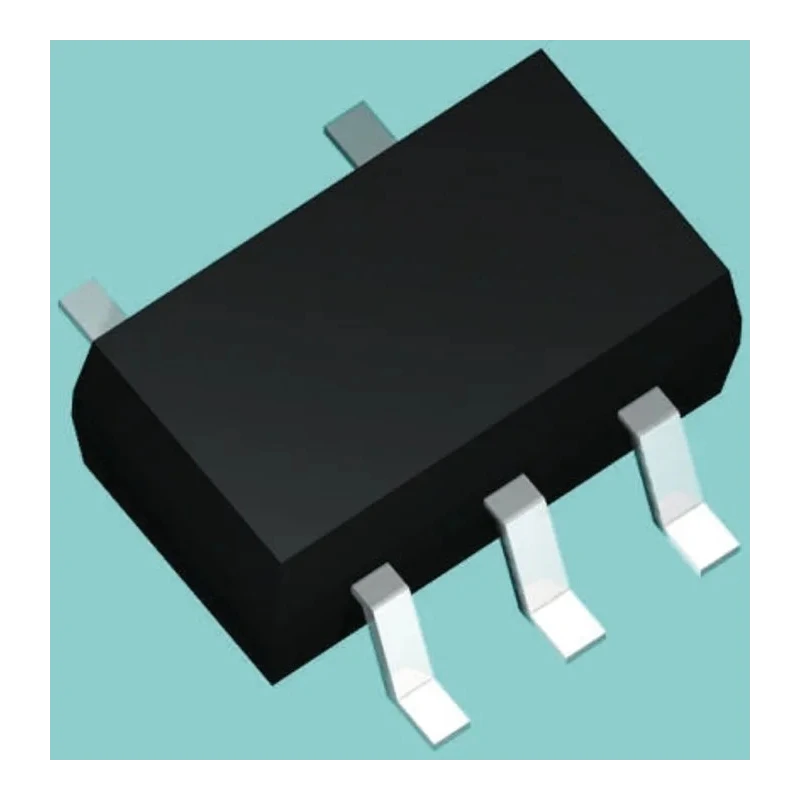

ROHM 4-Element ESD Protection Diode 30 W Surface Mount 5-Pin UMD RSA6.1ENTR
Specifications
| Country of Origin | India |
|---|---|
| Brand | ROHM |
| Height | 0.9mm |
| Length | 2mm |
| Model | RSA6.1ENTR |
| Width | 1.25mm |
| Mount Type | Surface |
| Maximum Operating Temperature | 150°C |
| Package Type | UMD |
| Minimum Operating Temperature | -55°C |
| Pin Count | 5 |
| Number of Elements per Chip | 4 |
| Diode Configuration | Common Anode |
| Minimum Breakdown Voltage Vbr | 6.1V |
| Peak Pulse Power Dissipation Pppm | 30W |
| Test Current It | 1mA |
| Maximum Reverse Leakage Current | 1μA |
Key Features
- High reliability transient voltage suppressor for ESD protection.
- Common anode diode configuration for efficient circuit protection.
- Operates between -55°C and 150°C for wide temperature range applications.
- Compact dimensions (2 mm length, 1.25 mm width, 0.9 mm height) suitable for PCB mounting.
- Low maximum reverse leakage current of 1 μA ensures minimal power loss.
- Bi-directional ESD protection enhances device safety against electrostatic discharge.
- Test current rating of 1 mA ensures stable operation.
- No automotive certification, ideal for general electronic component protection.
Product Description
ROHM RSA6.1ENTR is a 4-element ESD Protection Diode specifically engineered for surface mounting with a compact 5-pin UMD package. It supports a peak pulse power dissipation of 30 W, making it suitable for transient voltage suppression in various electronic devices.
This diode configuration features a common anode design, which offers bi-directional ESD protection to safeguard sensitive components from electrostatic discharge events effectively. The device operates across a wide temperature range from -55°C to 150°C, suitable for diverse industrial and commercial environments.
With precise dimensions of 2 mm in length, 1.25 mm in width, and 0.9 mm in height, it fits well on printed circuit boards requiring reliable, space-efficient transient voltage suppression components. The maximum reverse leakage current is limited to 1 μA, which minimizes power drain and enhances overall circuit efficiency.
The RSA6.1ENTR is ideal for use in industrial electronics, telecommunications equipment, automotive electronics (non-certified), consumer electronics, and other applications where protection against voltage spikes is critical. Its robust design ensures high reliability in transient voltage suppression.
Key features include a test current capacity of 1 mA and compact surface mount packaging designed for increased production efficiency. This product respects no special automotive standards but provides solid protection in standard industrial and commercial uses.
High reliability transient voltage suppressor for ESD protection. Common anode diode configuration for efficient circuit protection. Wide operating temperature range from -55°C to 150°C. Compact surface mount 5-pin UMD package footprint.
Low leakage current for energy efficiency. Suitable for industrial, telecommunications, and consumer electronics applications.
Explore further ROHM semiconductor components and related electronic protection devices at EnvMart for comprehensive product solutions catering to your electronic circuit protection requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The RSA6.1ENTR has a peak pulse power dissipation of 30 W, making it suitable for transient voltage suppression applications.
This model operates within a temperature range of -55°C to 150°C, suitable for various industrial and commercial environments.
The maximum reverse leakage current for this diode is 1 μA, which helps minimize power loss in the circuit.
The RSA6.1ENTR features a common anode diode configuration, providing bi-directional ESD protection for sensitive components.
This model has compact dimensions of 2 mm in length, 1.25 mm in width, and 0.9 mm in height, making it suitable for PCB mounting.
The test current rating for this diode is 1 mA, ensuring stable operation during use.
The RSA6.1ENTR is packaged in a 5-pin UMD surface mount package, designed for increased production efficiency.
While this model can be used in automotive electronics, it does not have automotive certification and is more suited for general electronic component protection.
This ESD protection diode is ideal for use in industrial electronics, telecommunications equipment, and consumer electronics, where protection against voltage spikes is critical.
The RSA6.1ENTR consists of 4 elements per chip, providing effective transient voltage suppression.
The minimum breakdown voltage (Vbr) for the RSA6.1ENTR is 6.1V, ensuring reliable operation under specified conditions.
The RSA6.1ENTR is manufactured in India, contributing to its overall reliability in electronic applications.
