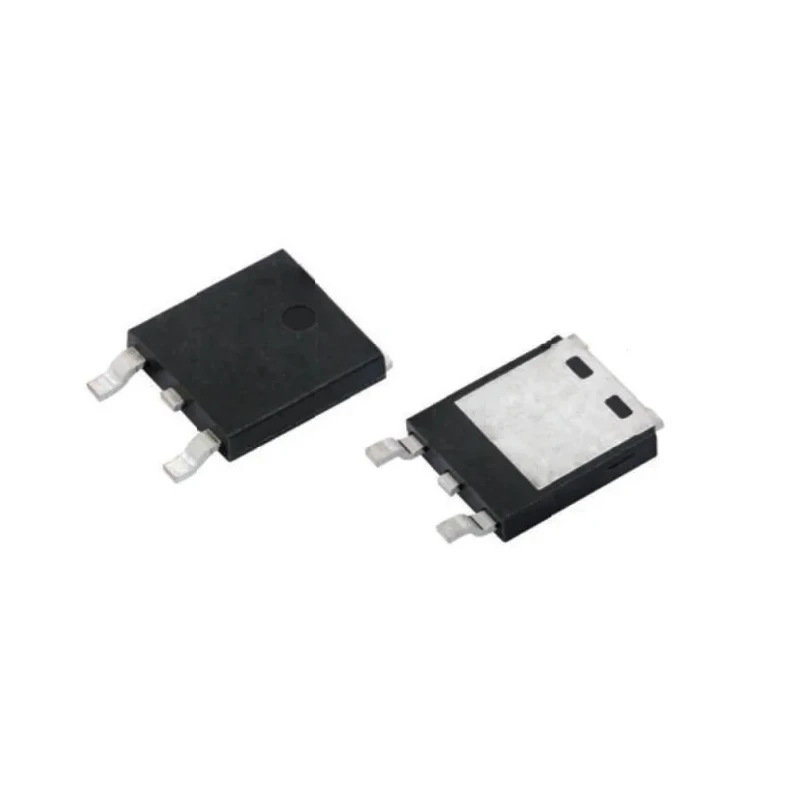

Vishay 150 V 10 A Schottky Barrier Rectifier Surface Mount TO-252 Package V10PWM153HM3/I

Free Delivery in India | Lowest Global Shipping Charges

Vishay 150 V 10 A Schottky Barrier Rectifier Surface Mount TO-252 Package V10PWM153HM3/I

Name: Vishay 150 V 10 A Schottky Barrier Rectifier Surface Mount TO-252 Package V10PWM153HM3/I
Brand: Vishay
SKU: 406073
Price: 0.73 USD
Availability: InStock



Category Schottky Barrier Rectifier Brand Vishay Condition New

Specifications

Country of Origin	India
Brand	Vishay
Model	V10PWM153HM3/I
Mount Type	Surface
Series	eSMP
Maximum Operating Temperature	150°C
Package Type	TO-252
Minimum Operating Temperature	-65°C
Standards/Approvals	RoHS
Automotive Standard	AEC-Q101
Maximum Continuous Forward Current If	10A
Peak Reverse Repetitive Voltage Vrrm	150V
Diode Configuration	Single
Rectifier Type	Schottky
Peak Non-Repetitive Forward Surge Current Ifsm	180A
Maximum Forward Voltage Vf	0.61V

Key Features

Utilizes Trench MOS Barrier Schottky technology for low forward voltage drop.
Suitable for low voltage, high frequency DC/DC converters.
Supports continuous forward current up to 10 A with peak surge capability of 180 A.
Operates over a wide temperature range from -65°C up to 150°C.
Complies with RoHS and is AEC-Q101 automotive qualified.
Low profile design with typical height of 1.3 mm ideal for automated placement.
Single diode configuration ensuring high efficiency and low power loss.
Designed for freewheeling diode and polarity protection applications.

Product Description

Vishay V10PWM153HM3/I Schottky Barrier Rectifier is a high current density surface-mount device utilizing Trench MOS Barrier Schottky (TMBS) technology. It is designed primarily for low voltage, high frequency DC/DC converters, freewheeling diodes, and polarity protection circuits.

This rectifier supports a maximum continuous forward current of 10 A and a peak reverse repetitive voltage of 150 V, making it ideal for demanding power management and switching applications. Its low forward voltage drop of 0.61 V significantly reduces power loss and improves efficiency.

Operating temperature ranges from -65°C to 150°C enable use in harsh industrial and automotive environments. Its low profile of approximately 1.3 mm and surface-mount TO-252 package facilitate automated PCB assembly processes.

Key technical advantages include compliance with RoHS standards and automotive qualification to AEC-Q101, ensuring reliability and safety in automotive and industrial applications.

This Vishay Schottky Barrier Rectifier is typically employed in industrial electronics, automotive systems, and power supply design requiring high efficiency and thermal stability.

Utilizes Trench MOS Barrier Schottky technology for efficiency. Handles continuous 10 A forward current with 150 V reverse voltage. Automotive-standard compliant and RoHS certified. Low profile surface mount package suitable for automated manufacturing.

Wide operating temperature range from -65° to 150°C. Ideal for DC/DC converters, freewheeling diodes, and polarity protection. Explore more semiconductor components and Schottky Diodes & Rectifiers on EnvMart to meet your industrial power conversion and control needs.
