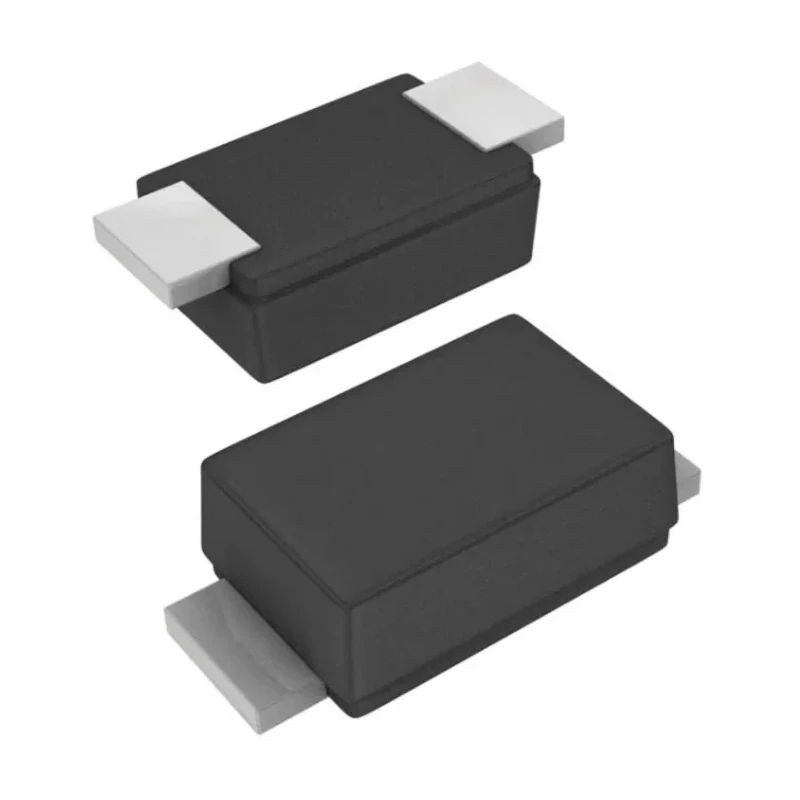

Vishay 60 V 2 A Surface Mount Schottky Barrier Rectifier DO-219AB Package SS2FH6HM3/H
Specifications
| Country of Origin | China |
|---|---|
| Brand | Vishay |
| Model | SS2FH6HM3/H |
| Mount Type | Surface |
| Series | eSMP |
| Maximum Operating Temperature | 175°C |
| Package Type | DO-219AB |
| Minimum Operating Temperature | -55°C |
| Standards/Approvals | UL 94 V-0, RoHS, AEC-Q101 |
| Pin Count | 2 |
| Automotive Standard | AEC-Q101 |
| Maximum Continuous Forward Current If | 2A |
| Peak Reverse Repetitive Voltage Vrrm | 60V |
| Diode Configuration | Single |
| Rectifier Type | Schottky |
| Peak Reverse Current Ir | 3μA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 40A |
| Maximum Forward Voltage Vf | 0.78V |
Key Features
- Designed for high frequency inverters and DC/DC converter applications.
- Features a surface mount DO-219AB package with 2 pins.
- Maximum continuous forward current of 2 A and peak forward surge current of 40 A.
- Low leakage current and ideal for automated placement processes.
- Operating temperature range from -55°C to 175°C.
- Complies with UL 94 V-0, RoHS, and AEC-Q101 automotive standards.
- Single diode configuration with maximum forward voltage of 0.78 V.
- Peak reverse repetitive voltage of 60 V and peak reverse current of 3 μA.
Product Description
Vishay SS2FH6HM3/H is a high-performance Schottky barrier rectifier designed for surface mount applications. It is housed in a low profile DO-219AB package, ideal for modern automated assembly processes.
This rectifier supports a maximum continuous forward current of 2 amperes and features a peak forward surge current capability of 40 amperes, making it suitable for demanding power conversion and polarity protection circuits.
The device operates over a wide temperature range from -55°C to 175°C, ensuring reliability in harsh industrial, automotive, and electronic conditions. Its low forward voltage drop of 0.78 volts contributes to efficient power management and minimal power loss.
Typical uses include high frequency inverters, freewheeling diodes, DC/DC converters, and various automotive electronic systems requiring compliance with AEC-Q101 standards. The Schottky diode configuration helps achieve fast switching and low noise performance.
Designed for high frequency inverters and DC/DC converter applications. Surface mount DO-219AB package with 2 pins for compact PCB designs. 2 A maximum continuous forward current and 40 A surge current capability. Extended operating temperature range from -55°C to 175°C.
Compliant with automotive AEC-Q101 and RoHS standards. Low forward voltage of 0.78 V for efficient conduction. Ideal for industrial, automotive, and electronic device protection circuits.
This Vishay Schottky Barrier Rectifier is manufactured in China and backed by quality standards including UL 94 V-0 flammability rating. Its robust specifications make it a reliable component for engineers designing power electronic circuits requiring low forward voltage and fast recovery times.
Explore Vishay products and other semiconductor devices to find suitable components for industrial electronics, automotive applications, and consumer electronics at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current of this model is 2 A.
The peak reverse repetitive voltage rating is 60 V.
It operates over a temperature range from -55°C to 175°C.
The maximum forward voltage drop is 0.78 V.
The peak forward surge current capability is 40 A.
This rectifier has a pin count of 2 and is housed in a DO-219AB package.
It complies with the AEC-Q101 automotive standard.
This model complies with UL 94 V-0 and RoHS standards.
The peak reverse current is 3 μA.
It supports surface mounting.
It is designed for high frequency inverters, DC/DC converters, and automotive electronic systems.
It is manufactured in China.
