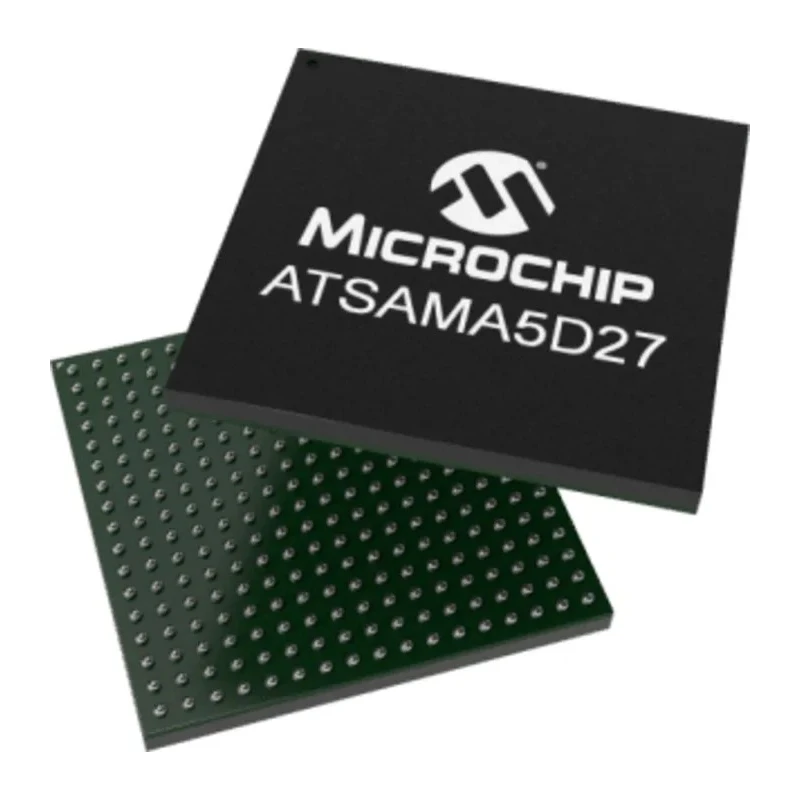

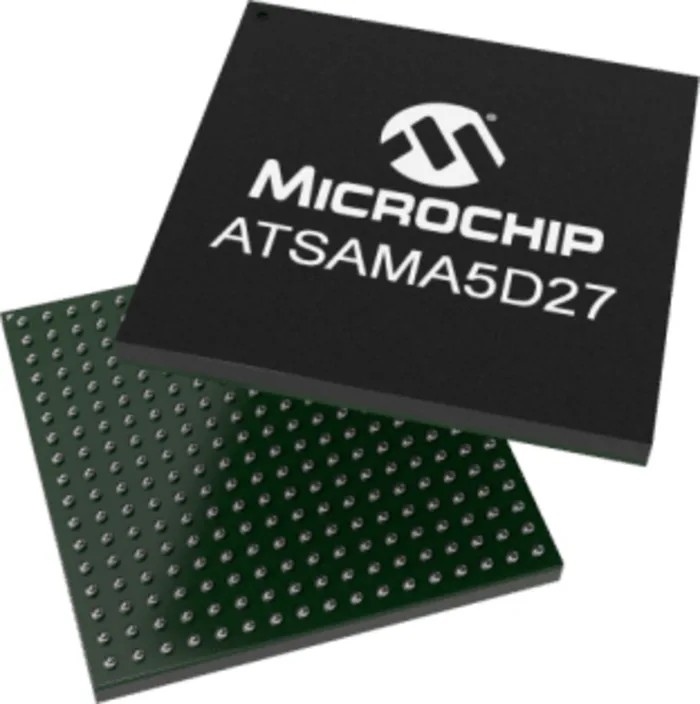

Microchip ARM Cortex A5 32 bit Microprocessor SAMA5D2 500 MHz 289-Pin LFBGA ATSAMA5D27C-CU

Free Delivery in India | Lowest Global Shipping Charges

Microchip ARM Cortex A5 32 bit Microprocessor SAMA5D2 500 MHz 289-Pin LFBGA ATSAMA5D27C-CU

Name: Microchip ARM Cortex A5 32 bit Microprocessor SAMA5D2 500 MHz 289-Pin LFBGA ATSAMA5D27C-CU
Brand: Microchip
SKU: 419675
Price: 20.22 USD
Availability: InStock



Category Microprocessor Brand Microchip Condition New

Specifications

Country of Origin	India
Brand	Microchip
Height	1.4mm
Length	14mm
Model	ATSAMA5D27C-CU
Mount Type	Surface
Series	SAMA5D2
Maximum Operating Temperature	85°C
Number Of Cores	1
Package Type	LFBGA
Minimum Operating Temperature	-40°C
Standards/Approvals	RoHS
Pin Count	289
Maximum Supply Voltage	3.6V
Minimum Supply Voltage	1.2V
Device Core	ARM Cortex A5
Maximum Clock Frequency	500MHz
Instruction Set Architecture	ARM

Key Features

Built around ARM Cortex A5 core for efficient 32-bit processing.
Maximum clock frequency of 500 MHz for high-performance computing.
Supports a wide operating voltage range from 1.2V to 3.6V.
Features 289-Pin LFBGA surface mount package design.
Operating temperature range from -40°C to 85°C for industrial applications.
Includes a 128KB L2 cache and ARM NEON SIMD engine for enhanced processing.
Integration of peripherals like EMAC, USB ports, CAN, SDIO, UARTs, and TFT LCD controller.
Ultra-low power consumption ensures longer battery life in embedded systems.

Product Description

Microchip ATSAMA5D27C-CU is a high-performance ARM Cortex A5 32-bit microprocessor designed under the SAMA5D2 series. Operating at a maximum clock frequency of 500 MHz, this microprocessor supports a range of industrial and embedded applications requiring efficient computing power coupled with ultra-low power consumption.

The device features a robust ARM Cortex A5 core, an integrated ARM NEON SIMD engine, 128KB L2 cache, and a floating-point unit, boosting its data processing capabilities. It supports multiple memory interfaces including DDR3, LPDDR3, and QSPI Flash, enabling flexible system design.

Connectivity is enhanced via integrated peripherals such as Ethernet MAC (EMAC), up to three high-speed USB ports, two CAN ports, multiple UARTs (up to 10), SDIO/SD/MMC interfaces, and a TFT LCD controller with touch capabilities. The inclusion of audio PLL, class D amplifier, and CMOS sensor interface makes it suitable for multimedia and sensor applications.

This microprocessor is housed in a 289-pin LFBGA surface mount package with a compact 14mm length and 1.4mm height, simplifying PCB layout. The device's minimum supply voltage is 1.2V and maximum is 3.6V, providing flexibility for various power environments. It operates reliably between -40°C and 85°C, supporting demanding industrial temperatures.

The SAMA5D2 series emphasizes ultra-low power consumption, allowing extended battery life in portable and embedded solutions. Its 0.8mm ball pitch package reduces PCB complexity, suitable for compact designs.

Being RoHS compliant, it meets environmental safety standards. The microprocessor is ideal for industrial automation, embedded control, consumer electronics, and IoT devices. Built around ARM Cortex A5 core facilitating efficient 32-bit data processing.

High maximum clock speed at 500 MHz for demanding applications. Rich connectivity options including multiple USB ports, CAN, Ethernet, UARTs, and SD interfaces. Low power architecture extends battery life in portable devices.

Compact LFBGA package aiding miniaturized PCB design. Wide voltage and temperature operating ranges for industrial use. Explore more Microchip Microprocessors and semiconductor solutions at EnvMart for advanced embedded system requirements.
