Microchip CAN Controller 8 Mbps, 14-Pin SOIC MCP2517FD-H/SL

Free Delivery in India | Lowest Global Shipping Charges

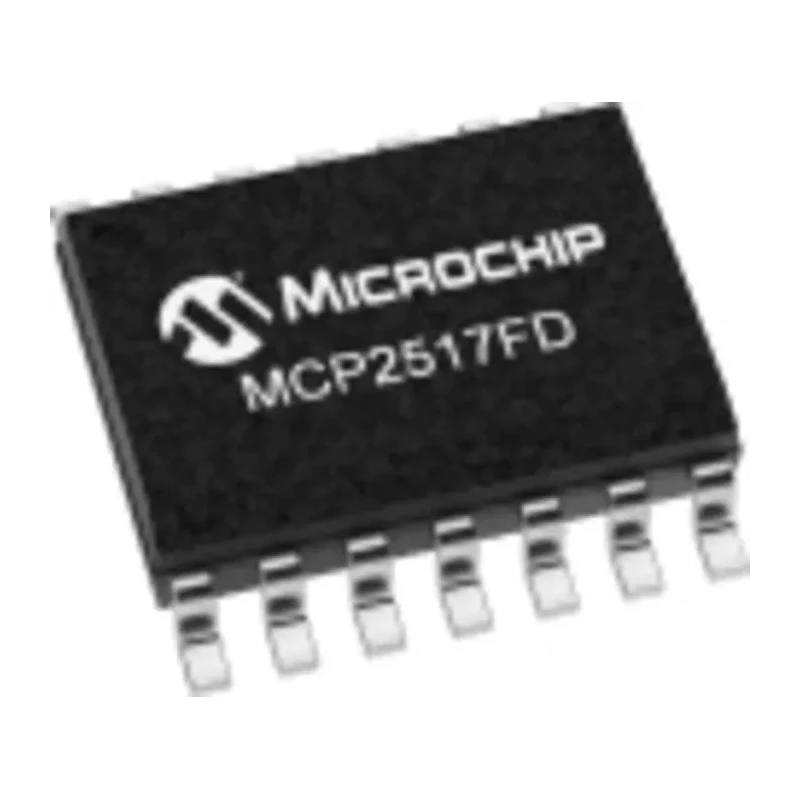

Microchip CAN Controller 8 Mbps, 14-Pin SOIC MCP2517FD-H/SL

Name: Microchip CAN Controller 8 Mbps, 14-Pin SOIC MCP2517FD-H/SL
Brand: Microchip
SKU: 98752
Price: 3.49 USD
Availability: InStock



Category CAN Interface ICs Brand Microchip Condition New

Specifications

Country of Origin	United States
Brand	Microchip
Height	1.5mm
Temperature range	-40C to +150C
Length	8.65mm
Model	MCP2517FD-H/SL
Width	3.9mm
Mount Type	Surface
Series	MCP2517FD-H/SL
Maximum Operating Temperature	150°C
Package Type	SOIC
Sub Type	CAN Controller
Minimum Operating Temperature	-40°C
Interface Type	CAN FD
Pin Count	14
Maximum Supply Voltage	5.5V
Minimum Supply Voltage	2.7V
Supply Current	20mA
Maximum Data Rate	8Mbps
Number of Transceivers	1
Packages	VDFN14 (Wettable Flanks), SOIC14
Active Current Max	12mA @ 5.5V, 40 MHz CAN Clock
Sleep Current	10uA, Typical
VDD	2.7V-5.5V
Microchip MCP2517FD-H/SL, CAN Controller 8Mbit/s CAN 2.0B, 14-Pin SOICBrand	Microchip
Microchip MCP2517FD-H/SL, ARCNET ControllerBrand	Microchip

Key Features

Supports CAN 2.0B and CAN FD protocols efficiently.
Maximum arbitration bit rate up to 1 Mbps ensures reliable communication.
Operates on supply voltage range of 2.7V to 5.5V.
Low active current max of 12mA at 5.5V with 40 MHz CAN clock.
Equipped with 31 configurable FIFOs for transmit or receive functions.
Includes 32 flexible filter and mask objects for superior filtering capability.
Temperature range from -40°C to 150°C for harsh environment use.
Compact surface mount SOIC14 package for space-saving PCB layouts.

Product Description

Microchip MCP2517FD-H/SL is a highly efficient CAN Controller designed for use in industrial, automotive, and embedded system applications requiring robust CAN FD communication. This external CAN FD Controller provides a cost-effective solution for microcontrollers lacking CAN FD peripherals or needing additional channels via SPI interface.

The device supports classical CAN 2.0B and CAN Flexible Data Rate, allowing data transmission speeds up to 8 Mbps, suitable for high-speed automotive and industrial network communications.

Its architecture includes 31 FIFOs configurable as transmit or receive buffers, 32 flexible filters and mask objects providing advanced message filtering capability, and a 32-bit time stamp for event synchronization.

Operating voltage ranges from 2.7V to 5.5V with an active current of 12mA at 5.5V and 40 MHz CAN clock, making it power efficient for embedded system designs. The MCP2517FD-H/SL operates reliably over a wide temperature range of -40°C to 150°C, ideal for challenging industrial and automotive environments.

Its surface-mount SOIC14 package offers a compact footprint for efficient PCB layouts, with package dimensions of 8.65mm length, 3.9mm width, and 1.5mm height. Additional features include bus health diagnostics and error counters enabling continuous network monitoring and fault detection, enhancing system reliability.

Supports CAN 2.0B and CAN FD protocol standards. Up to 8 Mbps data bit rate and 20 MHz SPI clock speed. 31 configurable FIFOs and 32 filter/mask objects for flexible message handling. Wide operating temperature range allows use in automotive and industrial applications.

Low power consumption with active and sleep modes.

This controller is ideal for applications including automotive networking, industrial automation, embedded control systems, and other communications networks demanding reliable and high-speed CAN interfaces.

Explore the Microchip range of CAN Controllers on EnvMart for advanced connectivity solutions tailored to industrial and automotive needs.

Explore more products in our CAN Interface ICs category.

Looking to purchase in bulk?

Purchase item in bulk quantity
Get best price for your business

Comments (0)

No customer reviews for the moment.

Frequently Asked Questions

The MCP2517FD-H/SL supports a maximum data rate of 8 Mbps, suitable for high-speed communications in automotive and industrial networks.

It operates on a supply voltage range of 2.7V to 5.5V, making it versatile for various embedded system applications.

This model has dimensions of 8.65mm in length, 3.9mm in width, and 1.5mm in height, designed for compact PCB layouts.

The MCP2517FD-H/SL is equipped with 31 configurable FIFOs for transmit or receive functions, allowing flexible message handling.

It operates reliably over a wide temperature range of -40°C to 150°C, making it suitable for harsh industrial and automotive environments.

This model comes in a surface mount SOIC14 package, which is compact and ideal for space-saving PCB designs.

It supports both CAN 2.0B and CAN Flexible Data Rate (CAN FD) protocols, ensuring compatibility with various communication standards.

The maximum active current is 12mA at 5.5V with a 40 MHz CAN clock, contributing to its power efficiency in embedded designs.

Yes, it includes 32 flexible filter and mask objects, providing advanced message filtering capabilities for improved communication efficiency.

The typical sleep current for this model is 10µA, which helps in reducing power consumption during inactive periods.

This CAN controller has a pin count of 14, making it suitable for various compact applications.

It is suitable for automotive networking, industrial automation, embedded control systems, and other communications networks requiring reliable CAN interfaces.
