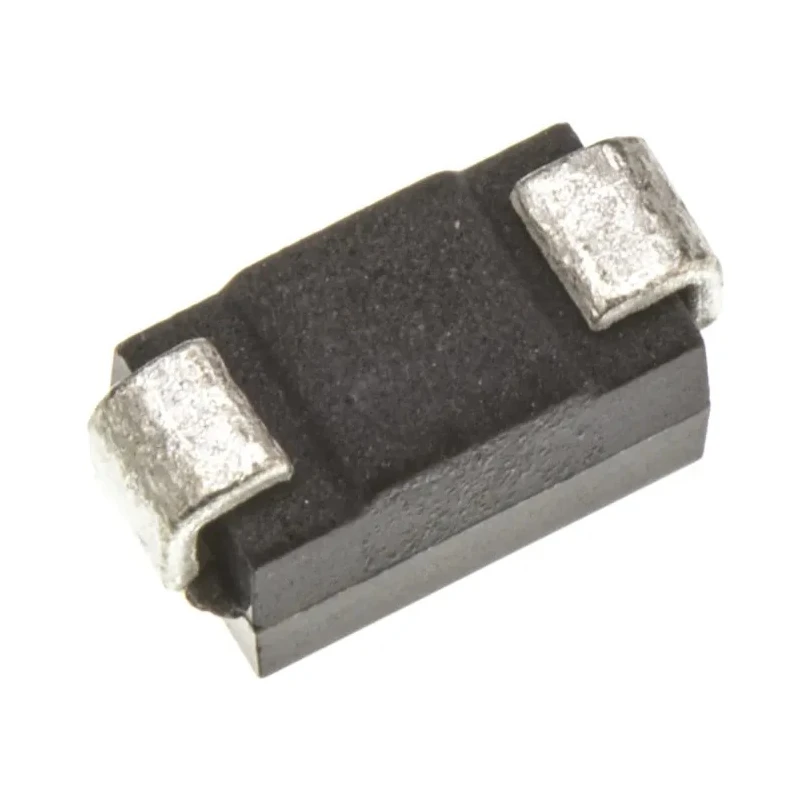

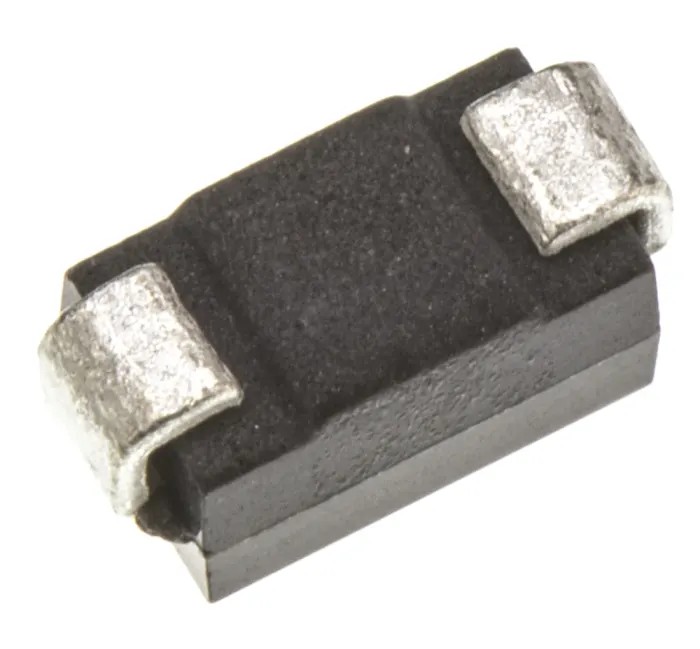

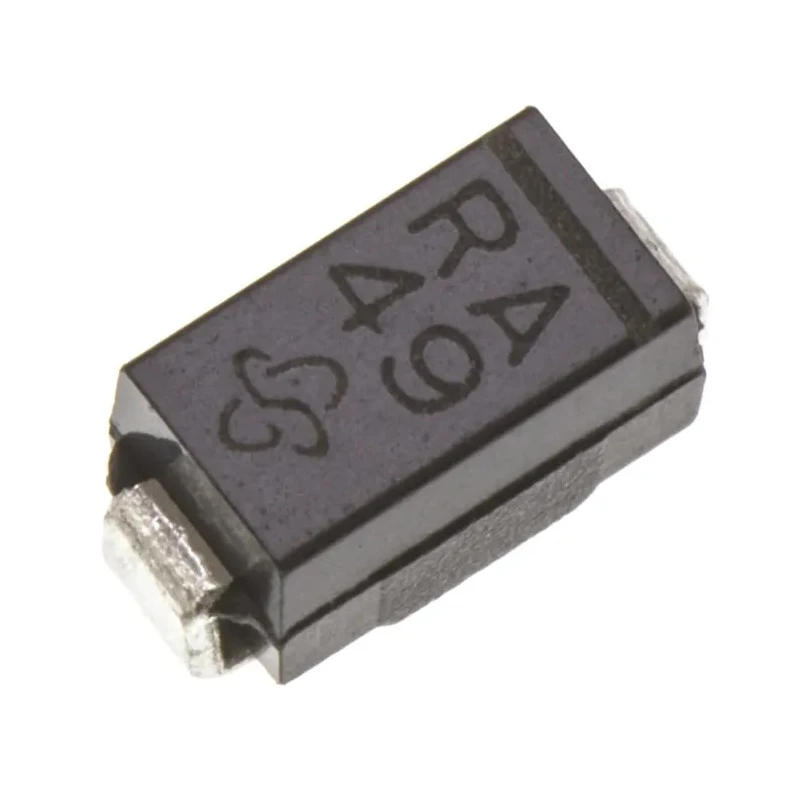

Vishay High-Efficiency Surface Mount Switching Diode 50 V 1 A DO-214BA RGF1A-E3
Specifications
| Country of Origin | India |
|---|---|
| Brand | Vishay |
| Height | 2.74mm |
| Length | 4.75mm |
| Model | RGF1A-E3 |
| Width | 2.9mm |
| Mount Type | Surface |
| Series | RGF1A |
| Maximum Operating Temperature | 175°C |
| Package Type | DO-214BA |
| Minimum Operating Temperature | -65°C |
| Standards/Approvals | RoHS |
| Pin Count | 2 |
| Automotive Standard | AEC-Q101 |
| Maximum Continuous Forward Current If | 1A |
| Peak Reverse Repetitive Voltage Vrrm | 50V |
| Diode Configuration | Single |
| Rectifier Type | Switching |
| Peak Reverse Current Ir | 5μA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 30A |
| Maximum Forward Voltage Vf | 1.3V |
| Peak Reverse Recovery Time trr | 150ns |
Key Features
- Surface mount device suitable for easy PCB integration.
- Maximum continuous forward current rating of 1 ampere.
- Peak reverse voltage of 50 volts ensuring robust voltage tolerance.
- Fast recovery time of 150 nanoseconds for efficient switching.
- Temperature range from -65°C to 175°C for high reliability.
- Low forward voltage of 1.3 volts reduces power loss.
- Complies with RoHS standards and automotive AEC-Q101 certification.
- Compact dimensions with length 4.75mm, width 2.9mm, and height 2.74mm.
Product Description
Vishay RGF1A-E3 is a high-efficiency switching diode designed for surface mount applications with a robust DO-214BA package type. It operates at a maximum continuous forward current of 1 ampere and can withstand a peak reverse repetitive voltage up to 50 volts. This diode features a low forward voltage drop of 1.3 V, which helps reduce power dissipation, and a peak reverse recovery time of 150 nanoseconds suitable for high-speed switching circuits.
Constructed for durability, it supports a wide operating temperature range from -65°C to 175°C and meets strict industry standards including RoHS compliance and automotive AEC-Q101 qualification. Its compact size (4.75 mm length, 2.9 mm width, and 2.74 mm height) makes it ideal for space-constrained PCB layouts.
This diode series finds extensive applications in industrial, automotive, and consumer electronics as a fast recovery rectifier, avalanche rectifier, and in switching circuits requiring efficient power handling and thermal stability.
Surface mount construction for reliable PCB assembly. 1 amp forward current capacity suitable for moderate power applications. High peak reverse voltage rating ensures circuit protection. Low forward voltage drop minimizes heat generation.
Fast recovery time supports high-frequency switching circuits. Wide temperature range boosts application versatility. Complies with RoHS and automotive AEC-Q101 standards. Compact DO-214BA package dimensions enable dense circuit design.
Overall, the Vishay RGF1A-E3 diode is an industrial-grade component designed to deliver stable and efficient switching performance for electronic engineers and system designers. Explore related Vishay Schottky Diodes and rectifiers in EnvMart for comprehensive semiconductor solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current rating of this diode is 1 ampere.
This model can withstand a peak reverse repetitive voltage of up to 50 volts.
The compact dimensions of this diode are 4.75 mm in length, 2.9 mm in width, and 2.74 mm in height.
The forward voltage drop of the RGF1A-E3 is 1.3 volts, which helps reduce power loss.
The peak reverse recovery time for this diode is 150 nanoseconds, making it suitable for high-speed switching applications.
It can operate in a temperature range from -65°C to 175°C, providing high reliability in various conditions.
Yes, it complies with RoHS standards and has automotive AEC-Q101 certification.
This model is designed for surface mounting, which facilitates easy PCB integration.
The diode configuration is single, suitable for various applications.
The peak non-repetitive forward surge current rating is 30 amperes.
The peak reverse current for the RGF1A-E3 is 5 microamperes.
This diode is suitable for applications in industrial, automotive, and consumer electronics, particularly as a fast recovery rectifier and in switching circuits.
