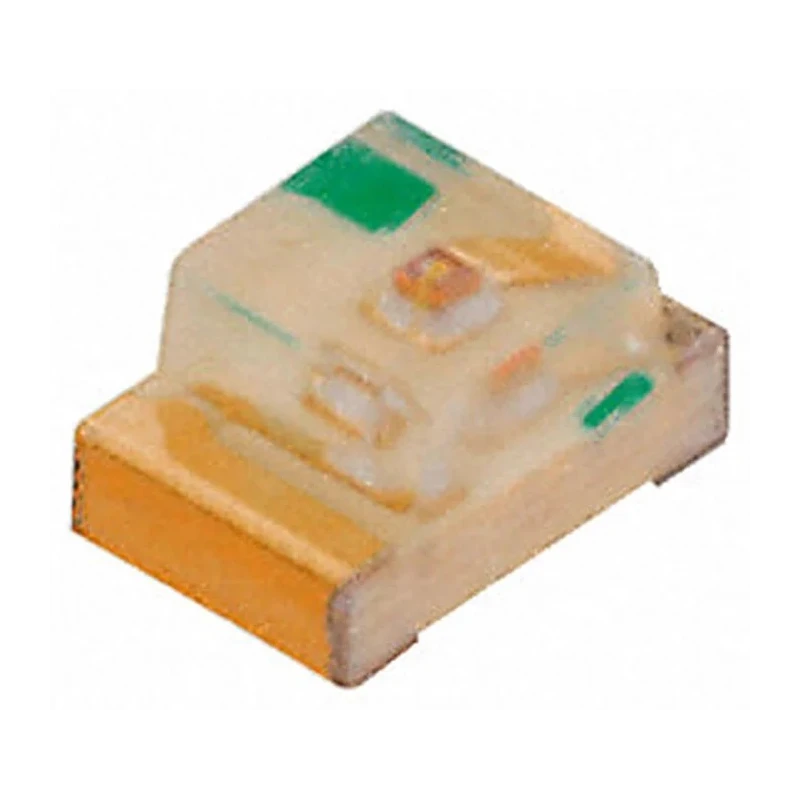

Kingbright 940 nm Infrared Light Emitting Diode Surface Mount 2012 Package KP-2012F3C
Specifications
| Country of Origin | China |
|---|---|
| Brand | Kingbright |
| Dimensions | 2 x 1.25 x 1.1 mm |
| Model | KP-2012F3C |
| Packaging | Tape & Reel |
| Mount Type | Surface |
| Number Of Leds | 1 |
| Viewing angle | 120° |
| Package Type | 2012 |
| Standards/Approvals | CIE 127-2007 |
| Number of Pins | 2 |
| Lens Shape | Rectangular |
| Maximum Supply Voltage | 1.6V |
| Peak Wavelength | 940nm |
| LED Material | GaAs |
| Angle of half intensity | 120° |
| Radiant Intensity | 3mW/sr |
Key Features
- Features 2012 (0805) footprint for surface mount technology.
- Rectangular GaAs LED chip with 120° viewing angle ensures broad IR emission.
- Maximum supply voltage of 1.6V allows low power operation.
- Single LED with two pins for easy integration on printed circuit boards.
- Packaged on tape and reel for manufacturing efficiency.
- Complies with CIE 127-2007 standard for IR LEDs.
- Designed primarily for electronic components, power connectors, and display applications.
Product Description
Kingbright KP-2012F3C is a 940 nm infrared LED housed in a 2012 surface mount chip LED package. It provides a radiant intensity of 3 mW/sr with a wide 120° viewing angle, making it suitable for diverse electronic and optoelectronic uses such as sensing, security systems, and remote controls. The device utilizes a rectangular GaAs LED chip with two pins, enabling convenient surface mounting on PCBs with the industry-standard 2012 (0805) footprint.
The LED operates at a maximum supply voltage of 1.6 volts, supporting efficient low voltage circuits. The packaging on tape and reel format is optimized for automated assembly lines, enhancing production throughput and minimizing handling damage. This LED meets the CIE 127-2007 standards ensuring consistent performance in infrared light emission applications.
Common industrial applications of the KP-2012F3C include electronic components, power connectors, and display systems. Its small size of 2 x 1.25 x 1.1 mm and robust surface mount design offers space-saving and durable solutions in commercial and manufacturing environments.
2012 (0805) SMD footprint for easy surface mount PCB assembly. Infrared wavelength of 940 nm for sensors and remote operation. Radiant intensity of 3 mW/sr for effective IR illumination. Wide viewing angle of 120 degrees for broad coverage.
Low maximum supply voltage of 1.6 V for power efficient designs. GaAs LED material for reliable infrared emission. Packaged in tape and reel for streamlined manufacturing.
Choose Kingbright KP-2012F3C for reliable, high-quality infrared LED solutions tailored to electronic and industrial optoelectronic applications. Explore more LED and electronic components with EnvMart for your projects and production needs.
Explore more products in our Diodes category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The peak wavelength of this infrared LED is 940 nm, which is suitable for various sensing and remote control applications.
The KP-2012F3C has a radiant intensity of 3 mW/sr, providing effective infrared illumination for its intended applications.
This model measures 2 x 1.25 x 1.1 mm, making it compact for surface mount applications.
The maximum supply voltage for the KP-2012F3C is 1.6 volts, enabling low power operation in electronic circuits.
It is packaged on tape and reel, which is optimized for automated assembly lines to enhance production efficiency.
The KP-2012F3C features two pins, facilitating easy integration onto printed circuit boards.
This model has a wide viewing angle of 120°, allowing for broad coverage in its applications.
It complies with the CIE 127-2007 standard for infrared LEDs, ensuring consistent performance.
This model is designed for surface mounting, utilizing the 2012 (0805) footprint for easy assembly.
The LED is made from Gallium Arsenide (GaAs), which is known for its reliable infrared emission.
This infrared LED is commonly used in electronic components, power connectors, and display systems.
The angle of half intensity for the KP-2012F3C is also 120°, which complements its wide viewing angle.
