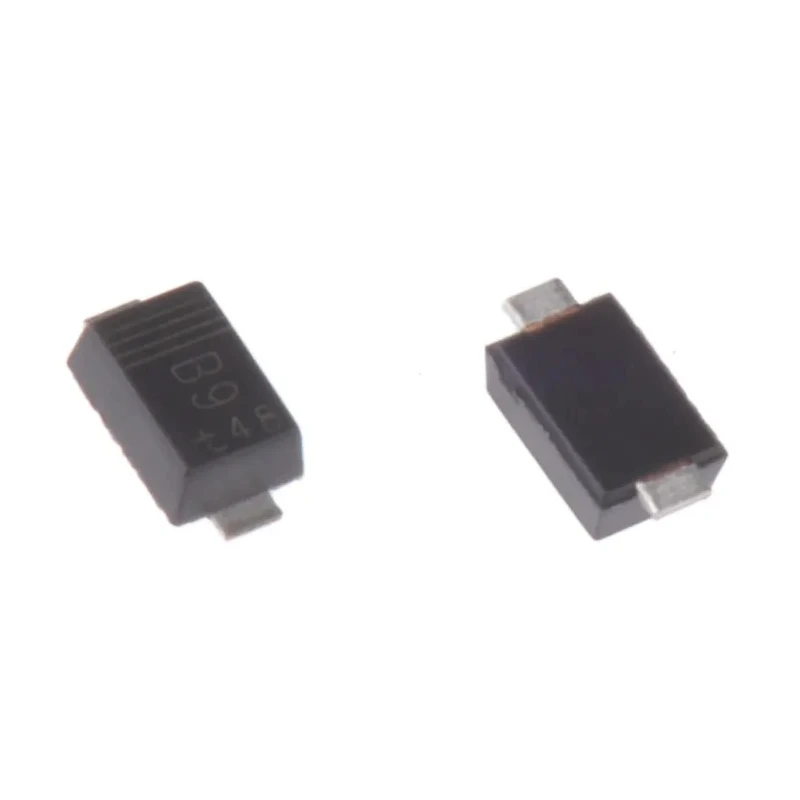

Nexperia Schottky Diode 30 V 2 A Surface Mount 2-Pin SOD-123 PMEG3020ER,115
Specifications
| Country of Origin | India |
|---|---|
| Brand | Nexperia |
| Height | 1.1mm |
| Length | 2.8mm |
| Model | PMEG3020ER,115 |
| Width | 1.9mm |
| Mount Type | Surface |
| Series | PMEG3020ER |
| Maximum Operating Temperature | 150°C |
| Package Type | SOD-123 |
| Minimum Operating Temperature | -55°C |
| Pin Count | 2 |
| Automotive Standard | AEC-Q101 |
| Maximum Continuous Forward Current If | 2A |
| Peak Reverse Repetitive Voltage Vrrm | 30V |
| Diode Configuration | Single |
| Rectifier Type | Schottky |
| Peak Reverse Current Ir | 1.5mA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 50A |
| Maximum Forward Voltage Vf | 420mV |
| onsemi 60V 2A, Schottky Diode, 2-Pin SOD-123FL NTS260SFGBrand | onsemi |
Key Features
- This diode features a single diode configuration optimized for Schottky rectification.
- It has a peak reverse repetitive voltage of 30 volts and a continuous forward current of 2 amps.
- The device is housed in a low-profile SOD-123 package with dimensions 2.8mm length, 1.9mm width, and 1.1mm height.
- Operating temperature ranges from -55°C to 150°C, suitable for automotive applications compliant with AEC-Q101.
- The maximum forward voltage drop is 420mV ensuring low power loss and high efficiency.
- Peak non-repetitive forward surge current capacity is 50 amps, providing robustness against transient conditions.
- Low leakage current and negligible power switching losses make it ideal for power-sensitive electronic circuits.
- This diode is designed for use in industrial electronics, automotive systems, power supply rectifiers, and semiconductor applications.
Product Description
Nexperia PMEG3020ER,115 Schottky diode is a high-efficiency semiconductor component designed for surface mounting in electronic circuits. Rated at 30 volts maximum reverse voltage and 2 amps continuous forward current, this Schottky barrier diode offers low forward voltage drop and high operating temperature tolerance, making it suitable for demanding industrial and automotive environments.
The device package is SOD-123, measuring 2.8 mm in length, 1.9 mm in width, and 1.1 mm in height. Its single diode configuration ensures optimized rectification performance with minimal losses.
Operating temperature spans from -55°C to 150°C, aligning with automotive industry standard AEC-Q101 for robust reliability under harsh conditions. Peak forward surge current capability of 50 amps supports transient and surge protection requirements.
This diode exhibits low leakage current and negligible power switching losses, which enhances energy efficiency and thermal management in power supply circuits. This diode features a single diode configuration optimized for Schottky rectification.
It has a peak reverse repetitive voltage of 30 volts and a continuous forward current of 2 amps. The device is housed in a low-profile SOD-123 package with dimensions 2.8mm length, 1.9mm width, and 1.1mm height. Operating temperature ranges from -55°C to 150°C, suitable for automotive applications compliant with AEC-Q101.
The maximum forward voltage drop is 420mV ensuring low power loss and high efficiency. Peak non-repetitive forward surge current capacity is 50 amps, providing robustness against transient conditions. Low leakage current and negligible power switching losses make it ideal for power-sensitive electronic circuits.
This diode is designed for use in industrial electronics, automotive systems, power supply rectifiers, and semiconductor applications.
This Schottky diode is essential for industrial, automotive, and electronic manufacturing sectors, offering reliable diode performance and energy efficiency in compact form factors. EnvMart customers can explore the full range of semiconductor components suitable for power and control applications.
Explore more products in our Diodes category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum reverse repetitive voltage rating is 30 volts.
This model has a continuous forward current capacity of 2 amps.
The SOD-123 package measures 2.8 mm in length, 1.9 mm in width, and 1.1 mm in height.
The operating temperature range is from -55°C to 150°C.
The maximum forward voltage drop is 420mV.
The peak non-repetitive forward surge current capacity is 50 amps.
Yes, it is compliant with the AEC-Q101 automotive standard.
This diode features a single diode configuration optimized for Schottky rectification.
The peak reverse current is 1.5mA.
This model is designed for surface mounting.
It is designed for use in industrial electronics, automotive systems, power supply rectifiers, and semiconductor applications.
The diode is manufactured in India.
