DiodesZetex 40 V 1 A General Purpose Surface Mount Schottky Diode 2-Pin SOD-123 SBR1A40S1-7

Free Delivery in India | Lowest Global Shipping Charges

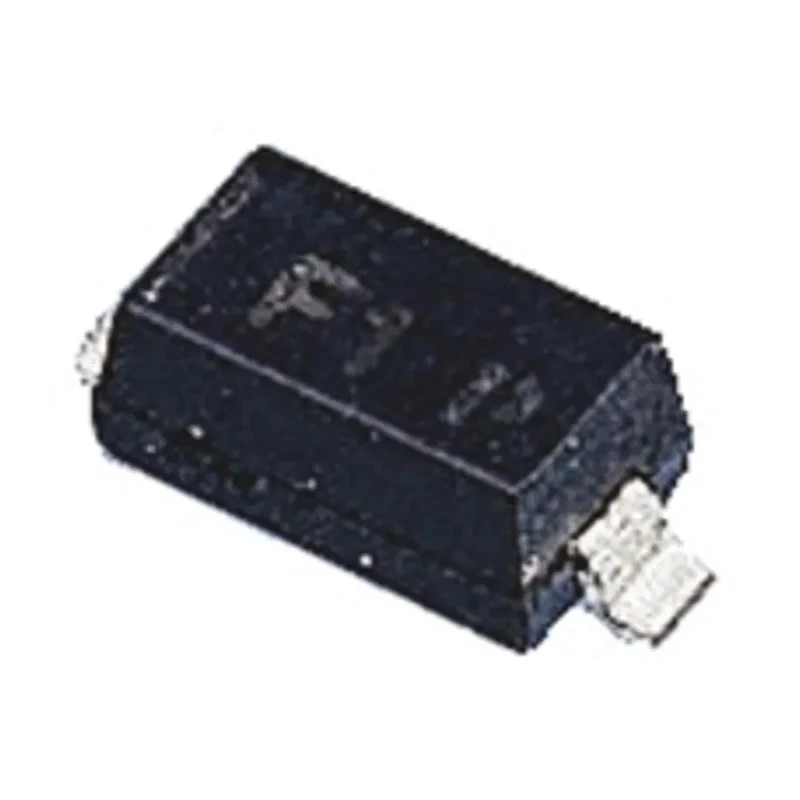

DiodesZetex 40 V 1 A General Purpose Surface Mount Schottky Diode 2-Pin SOD-123 SBR1A40S1-7

Name: DiodesZetex 40 V 1 A General Purpose Surface Mount Schottky Diode 2-Pin SOD-123 SBR1A40S1-7
Brand: DiodesZetex
SKU: 378061
Price: 0.23 USD
Availability: InStock



Category Diodes Brand DiodesZetex Condition New

Specifications

Country of Origin	India
Brand	DiodesZetex
Height	2.85mm
Length	2.85mm
Model	SBR1A40S1-7
Width	1.7mm
Mount Type	Surface
Maximum Operating Temperature	150°C
Package Type	SOD-123
Minimum Operating Temperature	-65°C
Standards/Approvals	FBI
Pin Count	2
Automotive Standard	AEC
Maximum Continuous Forward Current If	1A
Peak Reverse Repetitive Voltage Vrrm	40V
Diode Configuration	Single
Rectifier Type	General Purpose
Peak Reverse Current Ir	200μA
Peak Non-Repetitive Forward Surge Current Ifsm	20A
Maximum Forward Voltage Vf	520mV
DiodesZetex 40 V 1 A Diode Schottky 2-Pin SOD-123 1N5819HW1-7-FBrand	DiodesZetex

Key Features

Designed for surface mounting on printed circuit boards.
Provides a maximum continuous forward current of 1 ampere.
Peak reverse repetitive voltage rating of 40 volts ensures reliable blocking of reverse voltage.
Low forward voltage of 520 millivolts reduces power loss and increases efficiency.
Operating temperature range from -65°C to 150°C for high thermal stability.
The diode has a single diode configuration with general purpose rectification capabilities.
Compact SOD-123 package with dimensions 2.85 mm length, 2.85 mm height, and 1.7 mm width.
Features a peak non-repetitive forward surge current of 20 amperes.

Product Description

DiodesZetex SBR1A40S1-7 is a general purpose Schottky diode designed for surface mount applications. It operates at a maximum continuous forward current of 1 ampere and has a peak reverse repetitive voltage (Vrrm) of 40 volts. Its low forward voltage drop of 520 mV enhances power efficiency and thermal performance.

Housed in a compact 2-pin SOD-123 package, the diode measures 2.85 mm in length and height with a width of 1.7 mm, making it ideal for space-constrained electronic circuit designs.

This Schottky Barrier Rectifier (SBR) type diode ensures low forward voltage while maintaining thermal stability and high reliability, making it suitable for a wide range of industrial, automotive, and consumer electronic applications.

The diode withstands peak non-repetitive forward surge currents up to 20 amperes and functions reliably in extreme temperature conditions from -65°C to 150°C. It complies with automotive AEC standards, ensuring durability and performance in automotive environments.

Designed for surface mounting on PCBs to facilitate compact assembly. Low power dissipation due to low forward voltage. Suitable for general purpose rectification needs in electronic circuits. Compact SOD-123 package reduces board space and enhances thermal performance.

Meets automotive quality standards, ideal for automotive and industrial use. Wide operating temperature range for use in harsh environments. Capable of handling short surge currents, improving robustness.

This diode is commonly used in power supplies, voltage clamping, and switching power circuits within industrial manufacturing, automotive electronics, and other electronic equipment. With reliable performance and a compact form factor, it supports high-efficiency circuit design and improved device longevity.
