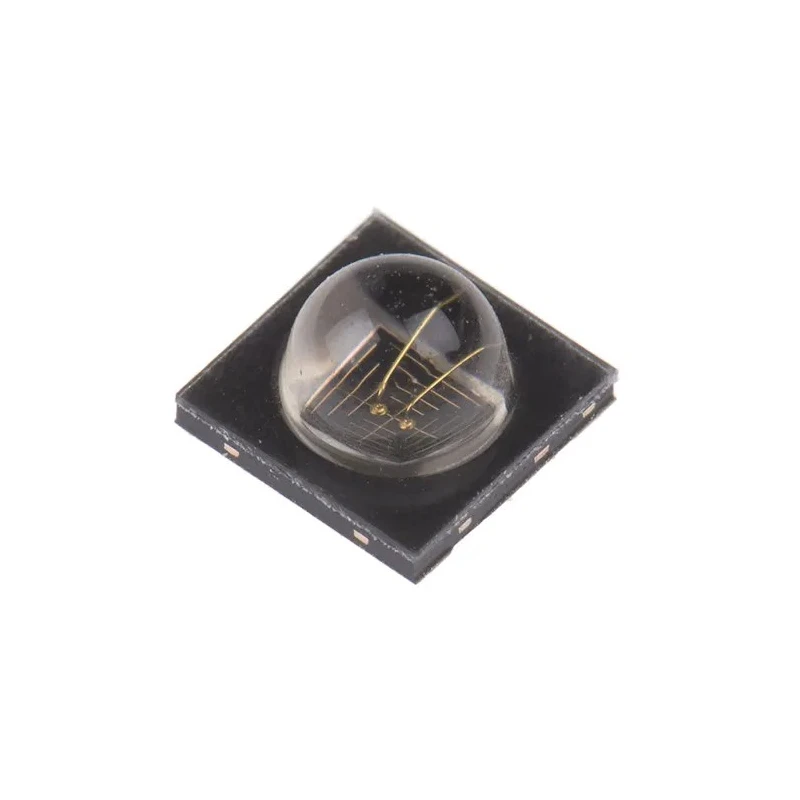

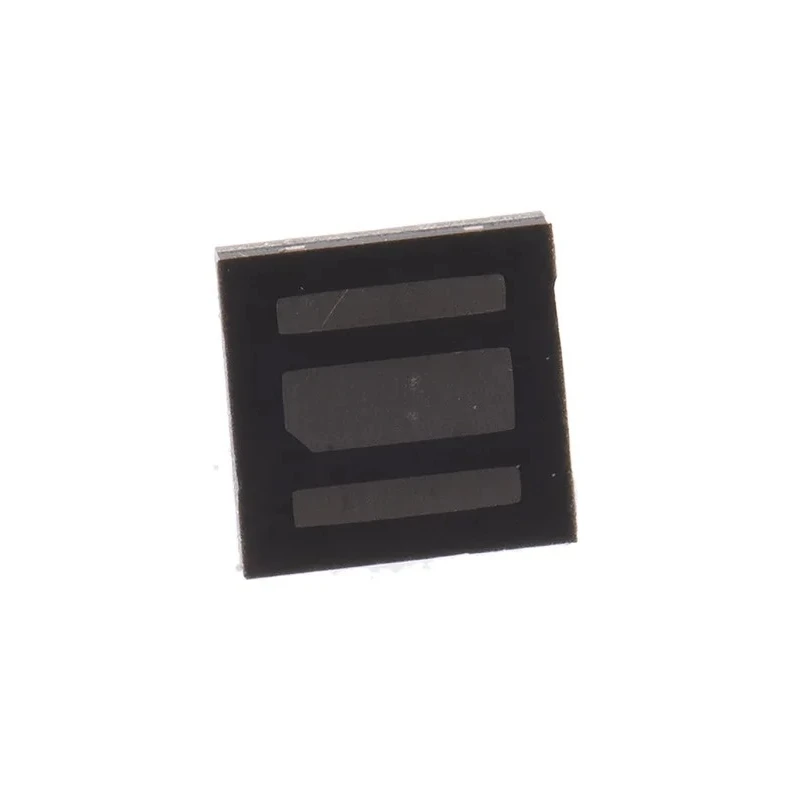

Vishay Surflight High Power 850 nm Infrared Emitting Diode Surface Mount Surface Package VSMY98545
Specifications
| Country of Origin | China |
|---|---|
| Brand | Vishay |
| Dimensions | 3.85 x 3.85 x 2.24 mm |
| Model | VSMY98545 |
| Packaging | Tape & Reel |
| Mount Type | Surface |
| Series | Surflight |
| Beam angle | 90° |
| Number Of Leds | 1 |
| Package Type | Surface Mount |
| Standards/Approvals | JEDEC |
| Number of Pins | 3 |
| Lens Shape | Dome |
| Peak Wavelength | 850nm |
| Radiant Flux | 660mW |
| Angle of half intensity | 45° |
| Radiant Intensity | 1600mW/sr |
Key Features
- This diode features a dome-shaped lens for optimized light emission.
- It operates at a peak wavelength of 850 nm, suitable for high power IR applications.
- The device has a radiant flux of 660 mW and radiant intensity of 1600 mW/sr.
- It includes a 45° angle of half intensity and a beam angle of 90° for diverse coverage.
- The diode comprises 1 LED and has 3 pins with surface mount type for easy installation.
- Packaged on tape and reel facilitating use in automated assembly.
- Complies with JEDEC standards ensuring reliability and quality.
- Part of Vishay’s Surflight series IR emitters featuring SurfLight™ technology.
Product Description
Vishay VSMY98545 is a high power infrared emitting diode designed for sophisticated electronic and optical applications. This surface mount device integrates a dome-shaped moulded lens housing a 42 mil chip, enabling efficient IR output specifically at a peak wavelength of 850 nm.
The diode delivers a radiant flux of 660 mW and intensities up to 1600 mW/sr, with a beam angle of 90° and an angle of half intensity of 45°, making it ideal for machine vision, camera illumination including 3D gaming, and IR illumination for CMOS cameras.
Using Vishay’s SurfLight™ technology, the VSMY98545 diode emits the majority of its light and power directly through the top surface, resulting in higher intensity output compared to standard IR emitters. This enhanced efficiency can reduce component count in designs and supports high-speed pulse operations.
Engineered to meet JEDEC standards, this diode offers reliability for industrial applications such as IR data transmission, automotive systems, industrial control, and CCTV camera illumination. It is supplied in a tape and reel package to ease pick-and-place manufacturing processes.
This diode features a dome-shaped lens for optimized light emission. It operates at a peak wavelength of 850 nm, suitable for high power IR applications. The device has a radiant flux of 660 mW and radiant intensity of 1600 mW/sr.
It includes a 45° angle of half intensity and a beam angle of 90° for diverse coverage. The diode comprises 1 LED and has 3 pins with surface mount type for easy installation. Packaged on tape and reel facilitating use in automated assembly.
Complies with JEDEC standards ensuring reliability and quality. Part of Vishay’s Surflight series IR emitters featuring SurfLight™ technology.
This product is suited for industrial use in electronic components manufacturing, optical electronics, and communication systems. Vishay’s Surflight infrared diodes deliver dependable performance with advanced emission technology for high efficiency and intensity in infrared applications.
Explore the broad range of electronic components and optoelectronics categories at EnvMart for advanced semiconductor Diodes and infrared LEDs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The VSMY98545 diode operates at a peak wavelength of 850 nm, making it suitable for high power infrared applications.
This model has a radiant flux of 660 mW, providing efficient infrared output for various applications.
The radiant intensity of this diode is 1600 mW/sr, which contributes to its effectiveness in high power IR applications.
The dimensions of this surface mount diode are 3.85 x 3.85 x 2.24 mm.
It is packaged on tape and reel, which facilitates automated assembly processes.
This diode features 3 pins, designed for surface mount installation.
The VSMY98545 has a beam angle of 90°, allowing for diverse coverage in applications.
The angle of half intensity for the VSMY98545 is 45°, which helps define its light emission characteristics.
This diode complies with JEDEC standards, ensuring reliability and quality for industrial applications.
It is suitable for applications such as machine vision, camera illumination, IR data transmission, and automotive systems.
The diode features a dome-shaped lens, which is designed for optimized light emission.
This model is part of Vishay's Surflight series of infrared emitters, utilizing SurfLight™ technology for enhanced efficiency.
