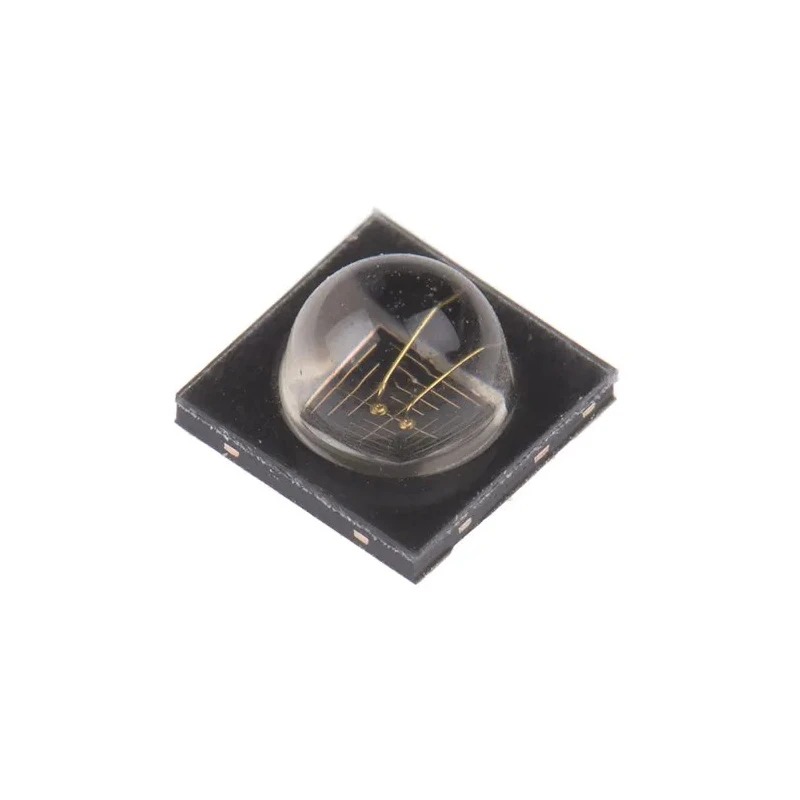

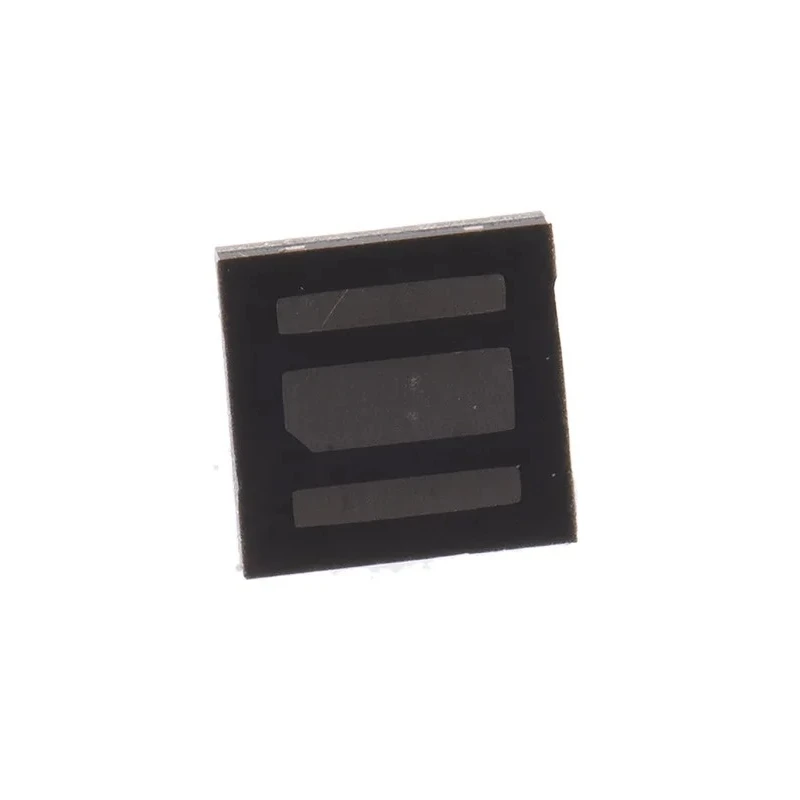

Vishay High Power Infrared Emitting Diode Surface Mount 850 nm Peak Wavelength VSMY98545
Specifications
| Country of Origin | China |
|---|---|
| Brand | Vishay |
| Dimensions | 3.85 x 3.85 x 2.24 mm |
| Model | VSMY98545 |
| Packaging | Tape & Reel |
| Mount Type | Surface |
| Series | Surflight |
| Beam angle | 90° |
| Number Of Leds | 1 |
| Package Type | Surface Mount |
| Standards/Approvals | JEDEC |
| Number of Pins | 3 |
| Lens Shape | Dome |
| Peak Wavelength | 850nm |
| Radiant Flux | 660mW |
| Angle of half intensity | 45° |
| Radiant Intensity | 1600mW/sr |
Key Features
- Operating wavelength at 850 nm ensuring efficient infrared emission.
- Compact surface mount design with dimensions 3.85 x 3.85 x 2.24 mm.
- High radiant flux of 660 mW and radiant intensity of 1600 mW/sr for superior performance.
- Beam angle of 90° and angle of half intensity of 45° to optimize light distribution.
- Equipped with a dome lens shape manufactured using SurfLight™ technology for enhanced top emission.
- Package type is tape and reel facilitating automated assembly processes.
- Designed for applications including machine vision, camera illumination, and IR communication.
- Compliant with JEDEC standards ensuring product quality and reliability.
Product Description
Vishay VSMY98545 is a high power infrared emitting diode featuring a peak wavelength of 850 nm. This infrared LED is enclosed in a compact surface mount package sized at 3.85 x 3.85 x 2.24 mm with a dome-shaped lens that incorporates the advanced SurfLight™ technology. The SurfLight™ design directs most of the emitted light through the top of the chip, providing exceptional radiant intensity and high efficiency.
With a radiant flux output of 660 mW and radiant intensity of 1600 mW/sr, the device delivers powerful infrared illumination with a beam angle of 90 degrees and an angle of half intensity of 45 degrees. This makes it suitable for precision applications such as machine vision systems, camera illumination especially in 3D gaming and CMOS cameras, and infrared data transmission.
The VSMY98545 series conforms to JEDEC standards and is built for reliable performance in demanding industrial, automotive, and security surveillance applications. Its tape and reel packaging supports high-speed automated manufacturing processes. The diode contains a 42 mil chip embedded within the dome lens to ensure high reliability and long service life.
Operating wavelength: 850 nm for effective infrared emission. High radiant flux and radiant intensity ensure bright and consistent output. Compact package and surface mount design facilitate easy integration. SurfLight™ technology enhances light emission efficiency and directionality.
Versatile application including machine vision, 3D gaming, automotive, and CCTV cameras. JEDEC compliant ensuring quality and industry-standard reliability. Tape and reel packaging suits automated production lines. Designed for industrial, laboratory, security, and automotive environments.
Explore more Vishay semiconductor products and enhance your infrared lighting and sensing solutions with EnvMart's wide selection of IR LEDs and electronic components.
Explore more products in our Diodes category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The peak wavelength of the VSMY98545 infrared emitting diode is 850 nm, which ensures efficient infrared emission.
This model has compact dimensions of 3.85 x 3.85 x 2.24 mm, making it suitable for space-constrained applications.
The radiant flux output of this infrared emitting diode is 660 mW, providing powerful infrared illumination.
The radiant intensity of the VSMY98545 is 1600 mW/sr, ensuring bright and consistent output.
This model features a beam angle of 90°, with an angle of half intensity of 45°, optimizing light distribution.
The diode is packaged in tape and reel format, which facilitates automated assembly processes.
This infrared emitting diode complies with JEDEC standards, ensuring product quality and reliability.
It is designed for applications including machine vision, camera illumination, and infrared communication.
This model has 3 pins, allowing for easy integration into various electronic circuits.
The diode features a dome-shaped lens, which is manufactured using SurfLight™ technology for enhanced top emission.
This infrared emitting diode is designed for surface mounting, making it suitable for compact applications.
The country of origin for this model is China.
