STMicroelectronics 60 V 5 A Schottky Barrier Diode Surface Mount DO-214AB 2-Pin STPS5L60S

Free Delivery in India | Lowest Global Shipping Charges

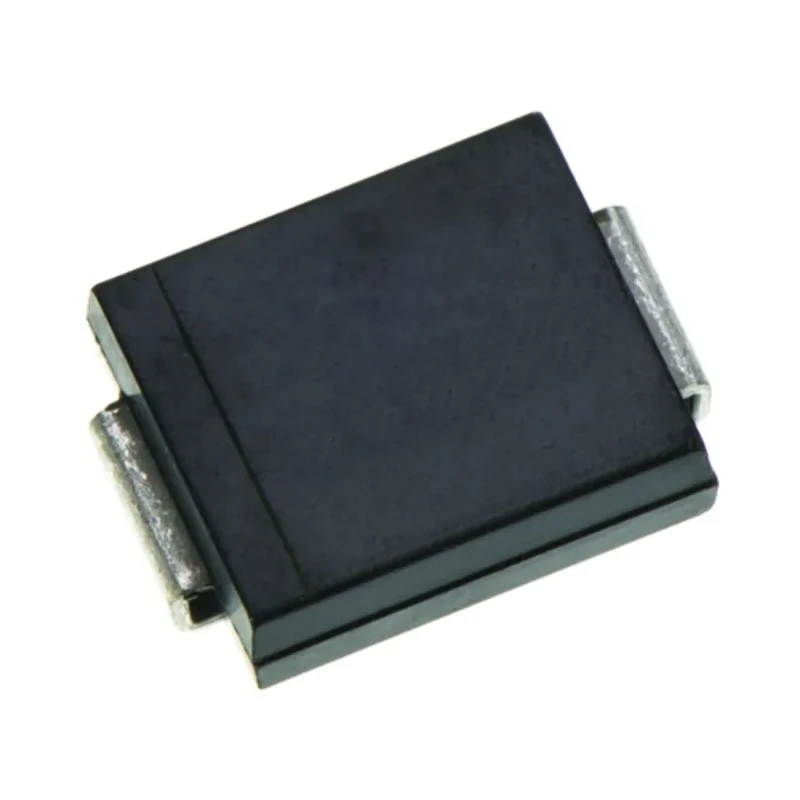

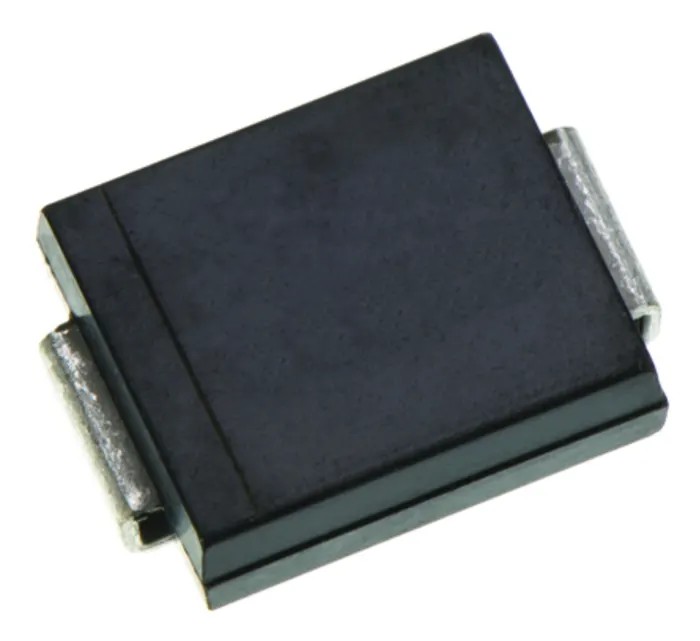

STMicroelectronics 60 V 5 A Schottky Barrier Diode Surface Mount DO-214AB 2-Pin STPS5L60S

Name: STMicroelectronics 60 V 5 A Schottky Barrier Diode Surface Mount DO-214AB 2-Pin STPS5L60S
Brand: STMicroelectronics
SKU: 384618
Price: 0.32 USD
Availability: InStock



Category Diodes Brand STMicroelectronics Condition New

Specifications

Country of Origin	India
Brand	STMicroelectronics
Height	2.45mm
Length	7.15mm
Model	STPS5L60S
Width	6.25mm
Mount Type	Surface
Series	STPS5L60
Maximum Operating Temperature	150°C
Package Type	DO-214AB (SMC)
Minimum Operating Temperature	-65°C
Pin Count	2
Maximum Continuous Forward Current If	5A
Peak Reverse Repetitive Voltage Vrrm	60V
Diode Configuration	Single
Rectifier Type	Schottky
Peak Reverse Current Ir	100mA
Peak Non-Repetitive Forward Surge Current Ifsm	150A
Maximum Forward Voltage Vf	0.42V

Key Features

Rated for a maximum continuous forward current of 5 amperes.
Operates at peak reverse repetitive voltage of 60 volts.
Low forward voltage drop of 0.42 volts for high efficiency.
Compact DO-214AB (SMC) package with two pins for surface mount technology.
Wide operating temperature range from -65°C to 150°C for reliability in harsh conditions.
Peak non-repetitive surge current capacity of 150 amperes for transient load handling.
Single diode configuration suitable for rectifier circuits.
Peak reverse current of 100 milliamperes ensuring low leakage.

Product Description

STMicroelectronics STPS5L60S is a high-performance Schottky barrier diode designed as a surface mount device in a DO-214AB (SMC) package with 2 pins. It supports a maximum continuous forward current rating of 5 A and a peak reverse repetitive voltage of 60 V, making it ideal for power rectification and switching tasks in various electronic designs.

The diode operates with a maximum forward voltage drop of just 0.42 V, contributing to efficient power conversion while minimizing energy loss. It can withstand a wide operational temperature range from -65°C up to 150°C, ensuring reliable performance even in demanding industrial, consumer electronics, and power management applications.

Its compact footprint - with dimensions of 7.15 mm length, 6.25 mm width, and 2.45 mm height - facilitates integration into densely packed PCB layouts. The device can tolerate non-repetitive surge currents up to 150 A, suitable for transient load conditions.

STPS5L60S features a single diode configuration with low peak reverse current leakage of 100 mA, offering stable electrical characteristics over its working range. Though it does not meet specific automotive standards or have formal approvals, it is well-suited for general electronic, power supply, and rectifier use cases.

Rated voltage of 60 V and continuous forward current of 5 A. Low forward voltage drop enhances efficiency in power conversion. Robust temperature tolerance from -65°C to 150°C. Compact surface mount packaging suitable for miniaturized designs.

High surge current capability for transient conditions. Reliable single diode configuration for discrete semiconductor applications. Limited reverse leakage current for stable switching performance. Commonly used in power supplies, switching regulators, and other industrial electronics.

This diode is a trusted component for applications in semiconductor electronics, power management systems, and discrete semiconductor assemblies. For users seeking efficient Schottky diode solutions with proven characteristics, the STMicroelectronics STPS5L60S is a reliable choice. Explore more semiconductor components in the relevant EnvMart categories.
