Nexperia High-Speed Switching Diode, Series, 200 mA, 6-Pin 100 V SOT-363 BAV99S,135

Free Delivery in India | Lowest Global Shipping Charges

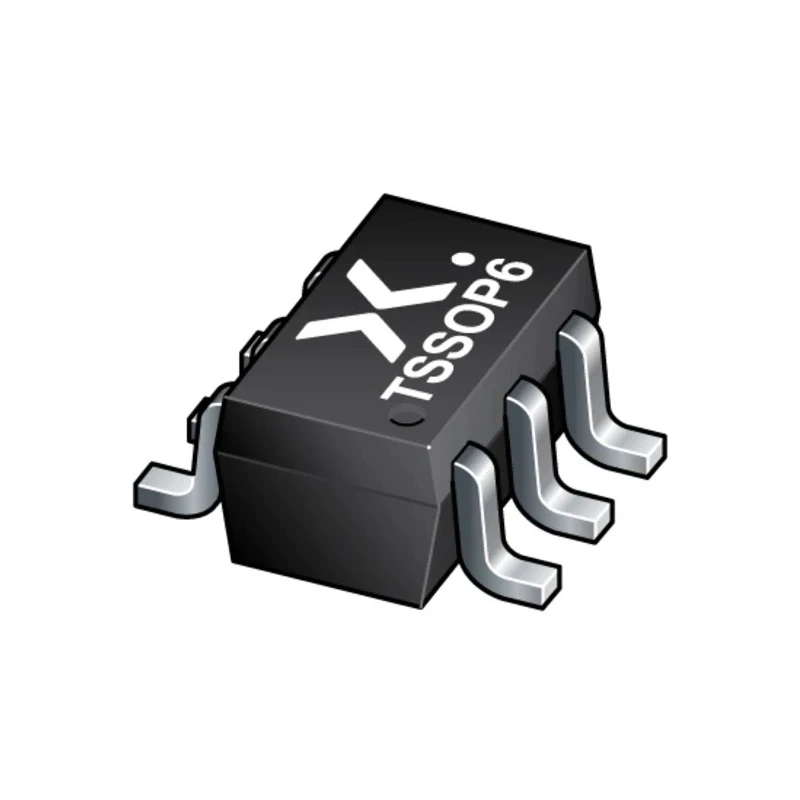

Nexperia High-Speed Switching Diode, Series, 200 mA, 6-Pin 100 V SOT-363 BAV99S,135

Name: Nexperia High-Speed Switching Diode, Series, 200 mA, 6-Pin 100 V SOT-363 BAV99S,135
Brand: Nexperia
SKU: 398574
Price: 0.07 USD
Availability: InStock



Category Diodes Brand Nexperia Condition New

Specifications

Country of Origin	India
Brand	Nexperia
Height	1mm
Length	2.2mm
Model	BAV99S,135
Width	1.35mm
Mount Type	Surface
Series	BAV99
Maximum Operating Temperature	150°C
Package Type	SOT-363
Sub Type	Switching Diode
Minimum Operating Temperature	-65°C
Pin Count	6
Automotive Standard	AEC-Q101
Maximum Power Dissipation Pd	250mW
Diode Configuration	Series
Peak Non-Repetitive Forward Surge Current Ifsm	4A
Maximum Forward Voltage Vf	1.25V
Peak Reverse Recovery Time trr	4ns
Maximum Forward Current If	200mA
Maximum Peak Reverse Repetitive Voltage Vrrm	100V
Reverse voltage	VR ≤ 100 V
Low capacitance	Cd ≤ 1.5 pF
ROHM Switching Diode, Isolated, 200 mA, 6-Pin 80 V SOT-363Brand	ROHM

Key Features

High-speed switching with peak reverse recovery time of 4 ns.
Maximum forward current of 200 mA accommodates moderate current applications.
Low capacitance of Cd ≤ 1.5 pF minimizes switching losses and supports high-frequency circuits.
Encapsulated in a compact 6-pin SOT-363 surface mount package for dense PCB layouts.
Maximum forward voltage of 1.25 V ensures efficient conduction.
Peak non-repetitive forward surge current rating of 4 A for transient tolerance.
Wide operating temperature range from -65°C to 150°C for robust performance.
Compliance with AEC-Q101 automotive standard for reliable use in automotive electronics.

Product Description

Nexperia BAV99S,135 is a high-speed switching diode series intended for electronic applications requiring fast switching speed and moderate current handling. It supports maximum forward current of 200 mA with a maximum forward voltage of 1.25 V. The diodes are packaged in a compact 6-pin SOT-363 surface mount package, enabling high-density PCB designs.

This diode series features a very low peak reverse recovery time of 4 nanoseconds, making them ideal for high-frequency switching circuits. The low capacitance (Cd ≤ 1.5 pF) further reduces switching losses, enhancing efficiency in signal and power switching applications.

Designed to withstand a peak reverse repetitive voltage of 100 V and non-repetitive peak surge current of 4 A, these diodes provide robust transient and voltage tolerance. The wide operational temperature range from -65°C up to 150°C ensures reliable performance under demanding environmental conditions.

Compliance with AEC-Q101 automotive standard makes these Diodes suitable for automotive electronic systems requiring high reliability and quality assurance. Their compact dimensions of 2.2 mm length, 1.35 mm width, and 1 mm height enable integration into tightly packed electronic assemblies.

High switching speed ideal for high-frequency applications. Moderate current and voltage ratings suitable for general-purpose switching tasks. Small surface mount package type supports miniaturized designs. Low leakage current characteristic enhances efficiency and reduces power loss.

Automotive qualification assures quality and reliability in vehicle electronics. Wide temperature operating range broadens application scope. Suitable for industrial, communications, automotive, and consumer electronics.

Explore additional semiconductor and switching diode products on EnvMart for comprehensive electronic components to optimize your designs.
