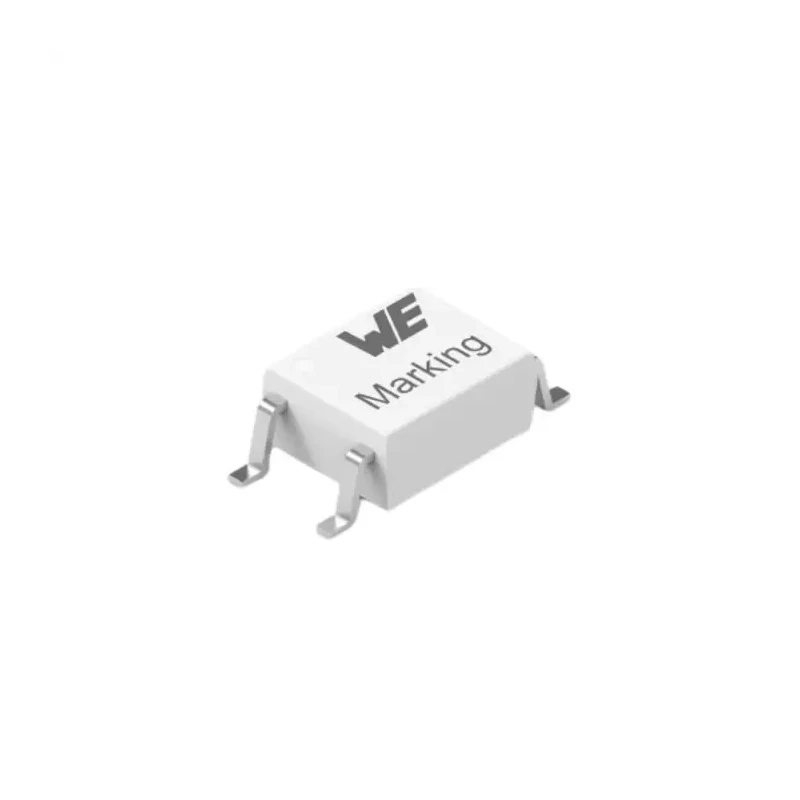

Wurth Elektronik Phototransistor DC Input Surface Mount 4-Pin SOP 140356145200
Specifications
| Country of Origin | China |
|---|---|
| Brand | Wurth Elektronik |
| Packaging | Tape & Reel |
| Mount Type | Surface |
| Series | WL-OCPT |
| Maximum Operating Temperature | 110°C |
| Package Type | SOP |
| Minimum Operating Temperature | -55°C |
| Maximum input current | 60mA |
| Number Of Channels | 1 |
| Standards/Approvals | UL |
| Maximum Forward Voltage | 1.4V |
| Number of Pins | 4 |
| Input Current Type | DC |
| Typical Rise Time | 3μs |
| Maximum Current Transfer Ratio | 260% |
| Typical Fall Time | 4μs |
| Minimum Current Transfer Ratio | 130% |
Key Features
- The device features a maximum forward voltage of 1.4 volts.
- Typical rise and fall times are 3 microseconds and 4 microseconds respectively.
- It supports a maximum input current of 60 milliamps.
- Operating temperature ranges from -55 to 110 degrees Celsius.
- It has a high isolation voltage of 3750 Vrms ensuring signal integrity.
- The package type is SOP with surface mounting style.
- Current transfer ratio ranges between 130% minimum and 260% maximum.
- The phototransistor is Halogen free and RoHS compliant, suitable for eco-conscious applications.
Product Description
Wurth Elektronik 140356145200 phototransistor is a high-performance DC input device packaged in a compact 4-pin SOP surface mount format. Designed to efficiently convert optical signals into electrical signals, it supports a maximum forward voltage of 1.4 volts and a maximum input current of 60 milliamps. This phototransistor features fast response times with a typical rise time of 3 microseconds and a fall time of 4 microseconds, making it ideal for rapid switching applications.
The device operates reliably over a wide temperature range from -55 up to 110 degrees Celsius, accommodating harsh industrial environments. Its isolation voltage rating of 3750 Vrms ensures high signal integrity and reduces interference. The model 140356145200 is RoHS compliant and halogen free, aligning with modern environmental standards.
This phototransistor's plastic white housing provides durable protection and is suitable for use in electronic circuits requiring high precision in optoelectronic signal sensing such as power supplies, signal isolation modules, and optocoupler-based designs. Its tape and reel packaging facilitates automated assembly in manufacturing processes.
The device features a maximum forward voltage of 1.4 volts. Typical rise and fall times are 3 microseconds and 4 microseconds respectively. Maximum input current of 60 milliamps ensures robust handling of signal currents.
Operating temperature range from -55 to 110 degrees Celsius. 3750 Vrms isolation voltage for enhanced safety and signal integrity. SOP package type designed for surface mount technology. Current transfer ratio range of 130% to 260% for efficient signal amplification.
Compliance with RoHS and Halogen-free manufacturing standards. White plastic housing for mechanical and environmental protection. Ideal for use in electronic and optoelectronic applications requiring reliable phototransistor performance.
This Phototransistor is well suited for various industrial and electronic applications including power and signal isolation circuits, optoelectronic control systems, and instrumentation. Explore more from the Electronics Components category at EnvMart to find compatible optocouplers and related devices for your projects.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum forward voltage of this model is 1.4 volts.
It has a typical rise time of 3 microseconds and a fall time of 4 microseconds.
The maximum input current for this unit is 60 milliamps.
It operates reliably over a temperature range from -55 to 110 degrees Celsius.
The isolation voltage rating is 3750 Vrms, ensuring high signal integrity.
It is packaged in a 4-pin SOP (Small Outline Package) format designed for surface mounting.
The current transfer ratio ranges from a minimum of 130% to a maximum of 260%.
This model is UL approved, ensuring compliance with safety standards.
It supports DC input current.
It is packaged using tape and reel, facilitating automated assembly processes.
This device has one channel.
The country of origin for this model is China.
