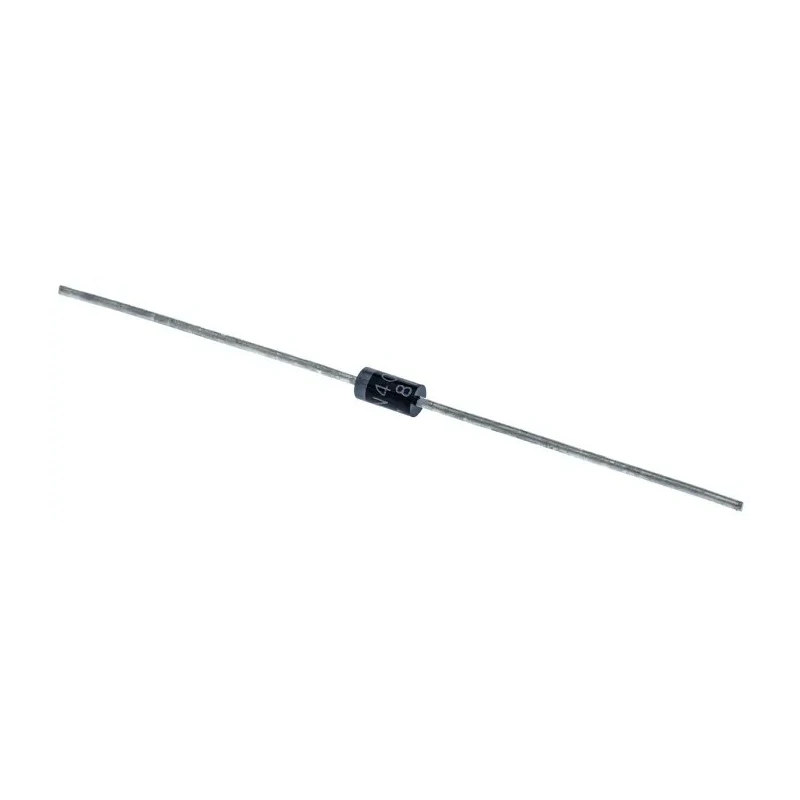

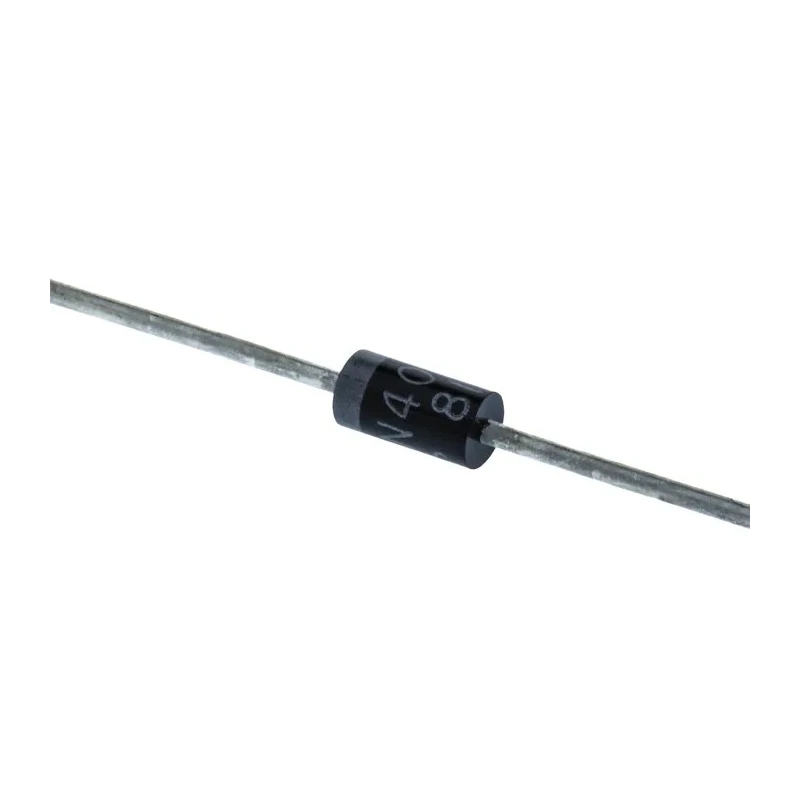

Vishay 800 V 1 A General Purpose Diode 2-Pin DO-204AL 1N4006-E3/54

Free Delivery in India | Lowest Global Shipping Charges

Vishay 800 V 1 A General Purpose Diode 2-Pin DO-204AL 1N4006-E3/54

Name: Vishay 800 V 1 A General Purpose Diode 2-Pin DO-204AL 1N4006-E3/54
Brand: Vishay
SKU: 200696
Price: 0.17 USD
Availability: InStock



Category Diode Brand Vishay Condition New

Specifications

Country of Origin	China
Diameter	2.7mm
Brand	Vishay
Height	2.7mm
Length	5.2mm
Model	1N4006-E3/54
Width	2.7mm
Mount Type	Through Hole
Series	1N4006
Maximum Operating Temperature	150°C
Package Type	DO-204AL
Minimum Operating Temperature	-50°C
Pin Count	2
Maximum Continuous Forward Current If	1A
Peak Reverse Repetitive Voltage Vrrm	800V
Diode Configuration	Single
Rectifier Type	General Purpose
Peak Reverse Current Ir	5μA
Peak Non-Repetitive Forward Surge Current Ifsm	45A
Maximum Forward Voltage Vf	1.1V
Vishay 800V 1A, Diode, 2-Pin DO-204AL 1N4006Brand	Vishay
Lite-On 800V 1A, Silicon Junction Diode, 2-Pin A 405 1N4006LBrand	Lite-On

Key Features

Offers maximum continuous forward current of 1 Ampere.
Peak reverse repetitive voltage rating of 800 Volts.
Features low forward voltage drop and low leakage current.
Ideal for rectification in power supplies and general purpose applications.
Operates reliably between -50°C and 150°C junction temperature.
Constructed in a durable DO-204AL (DO-41) plastic package with tin-plated leads.
Designed for use in inverters, converters, and freewheeling diode circuits.
Peak non-repetitive forward surge current capability up to 45 Amperes.

Product Description

Vishay 1N4006-E3/54 is a general purpose diode designed for a wide range of electronic circuit applications requiring reliable rectification. It is packaged in a 2-pin DO-204AL through-hole plastic package, providing robust mechanical properties along with excellent electrical characteristics.

This diode supports a maximum continuous forward current of 1 Ampere and can withstand peak reverse repetitive voltages up to 800 Volts, making it suitable for medium power applications.

The device shows a low forward voltage drop of typically 1.1 V and exhibits very low reverse leakage current in normal operation. The operating junction temperature range of -50°C to 150°C ensures operation under demanding thermal conditions in industrial and commercial environments.

The 1N4006 series is widely used in applications such as power supply rectification, inverters, converters, and as freewheeling diodes in motor drives and power electronics. Maximum continuous forward current of 1A ensures stable current handling capability.

Peak reverse repetitive voltage rating of 800 V protects circuits from voltage spikes. Low forward voltage drop minimizes power loss during conduction. Extended operating temperature range enhances application versatility.

Durable DO-204AL package facilitates reliable through-hole mounting.

Vishay diodes are manufactured with stringent quality controls in China, meeting industry standards. This Diode provides an economical and dependable solution for general-purpose rectification needs in industrial, laboratory, manufacturing, and power supply applications.
