Wurth Elektronik DC Input Phototransistor Surface Mount 4-Pin SOP Package 140356145200

Free Delivery in India | Lowest Global Shipping Charges

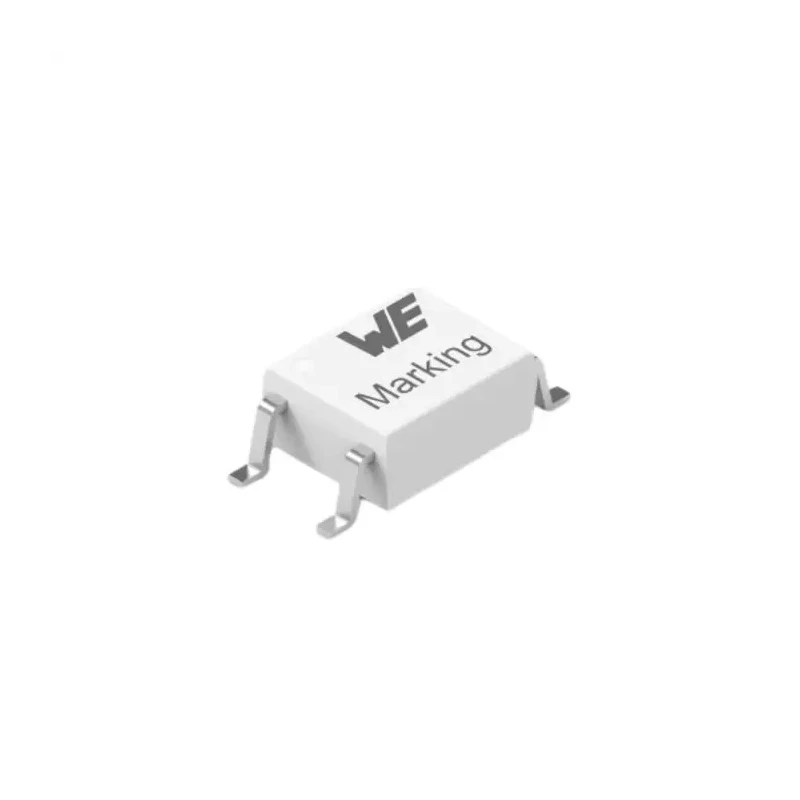

Wurth Elektronik DC Input Phototransistor Surface Mount 4-Pin SOP Package 140356145200

Name: Wurth Elektronik DC Input Phototransistor Surface Mount 4-Pin SOP Package 140356145200
Brand: Wurth Elektronik
SKU: 414055
Price: 0.56 USD
Availability: InStock



Category Phototransistor Brand Wurth Elektronik Condition New

Specifications

Country of Origin	China
Brand	Wurth Elektronik
Packaging	Tape & Reel
Mount Type	Surface
Output type	Phototransistor
Series	WL-OCPT
Maximum Operating Temperature	110°C
Package Type	SOP
Minimum Operating Temperature	-55°C
Maximum input current	60mA
Number Of Channels	1
Standards/Approvals	UL
Maximum Forward Voltage	1.4V
Number of Pins	4
Input Current Type	DC
Typical Rise Time	3μs
Maximum Current Transfer Ratio	260%
Typical Fall Time	4μs
Minimum Current Transfer Ratio	130%

Key Features

Features a maximum forward voltage of 1.4V ensuring efficient operation.
Supports maximum input current up to 60mA for reliable performance.
Operates over a wide temperature range from -55°C to +110°C for versatile use.
Typical rise and fall times are 3μs and 4μs respectively, for fast signal response.
Offers isolation voltage rating of 3750Vrms to ensure safety and integrity in circuits.
Compliant with UL standards and RoHS and halogen-free for environmental safety.
Packaged in tape and reel format facilitating automated assembly processes.
Ideal for optoelectronics applications requiring phototransistor output in electronic circuits.

Product Description

Wurth Elektronik 140356145200 is a high-quality DC input phototransistor designed for surface mounting in a compact 4-pin SOP package. It features a collector emitter voltage of 80V and an isolation voltage of 3750Vrms, providing robust electrical isolation suitable for industrial and electronic applications.

The device operates efficiently with a maximum forward voltage of 1.4V and supports a maximum input current of 60mA, making it suitable for precision photodetection tasks. It maintains excellent performance over a broad temperature range from -55°C to +110°C, which makes it reliable for use in demanding operating environments.

With typical rise and fall times of 3μs and 4μs respectively, this phototransistor ensures fast switching speeds essential for signal processing in various optocoupler and photodetector applications. The product complies with UL standards and is RoHS compliant and halogen-free, supporting environmentally friendly manufacturing and operational practices.

The packaging in tape and reel format supports high volume automated assembly, enhancing production efficiency. This phototransistor is commonly used in optoelectronics, industrial automation, and electronic instrumentation for detecting light and converting it to electrical signals.

Maximum forward voltage of 1.4V for efficient operation. Maximum input current up to 60mA ensuring reliable performance. Operating temperature range from -55°C up to +110°C. Fast typical rise time of 3μs and fall time of 4μs.

High isolation voltage of 3750Vrms for electrical safety. UL certified and RoHS and halogen-free compliant. Tape and reel packaging suitable for automated assembly. Suitable for use in electronic components, displays, and optoelectronic devices.

This Wurth Elektronik phototransistor model 140356145200 is an ideal component for industries such as industrial automation, electronics manufacturing, and laboratory instrumentation requiring precision photodetection with surface mount convenience. Explore our catalog for similar Wurth Elektronik optocouplers and Phototransistors optimized for enhanced performance and reliability.
