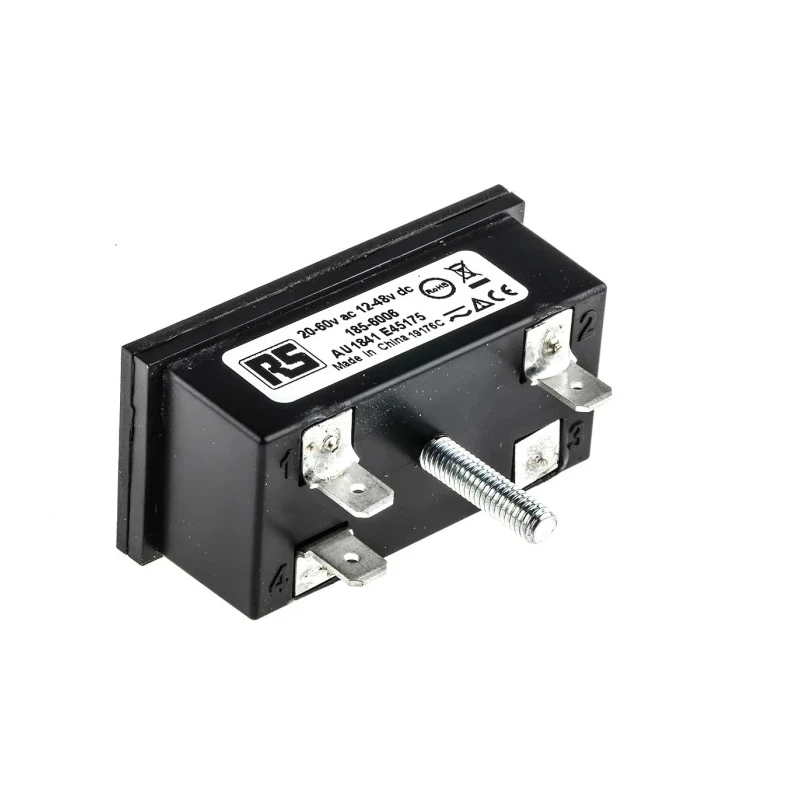

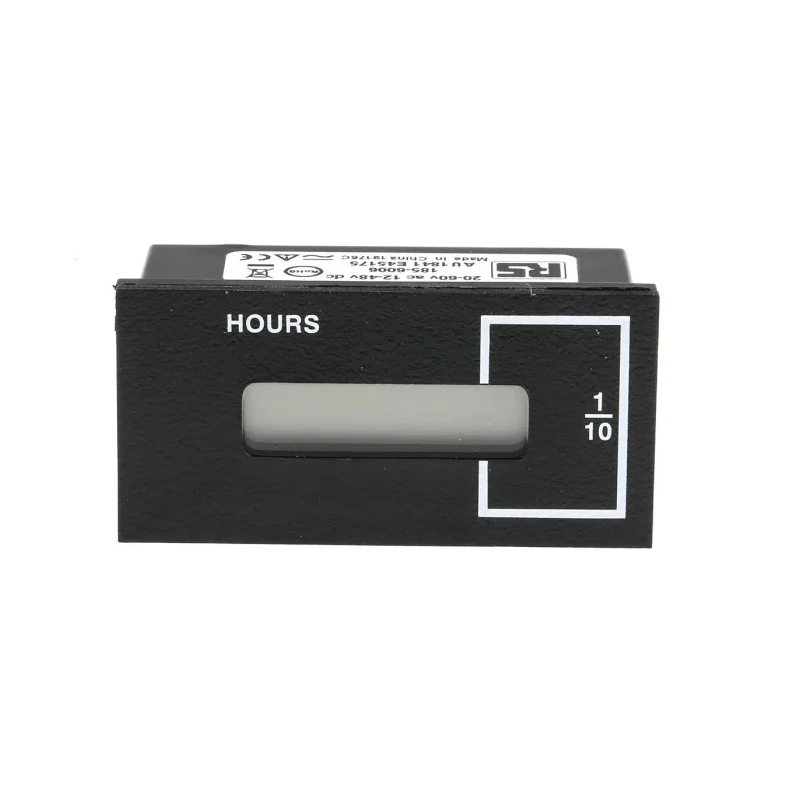

Curtis 700 Series 6 Digit LCD Panel Mount Hour Meter 60V AC Electrical Reset 185-6006

The Curtis 185-6006 is a reliable 6-digit LCD hour meter from the 700 Series, designed for panel mounting with a robust D-shaped case. It operates with an electrical reset method and is rated for a maximum supply voltage of 60V AC. The hour meter features a clear 5mm digit height LCD display equipped with backlighting to ensure visibility in low-light environments.

This hour meter operates reliably within a wide temperature range of -40°C to 85°C, with an operating maximum temperature of 85°C, making it highly suitable for applications in demanding industrial conditions, including automotive and marine sectors. The compact depth of 32mm, cutout dimensions of 45mm width and 22.2mm height, make it easy to install in control panels.

The Curtis hour meter is classified as solid-state and includes a 2-wire tab connection for integration into electrical systems. Its measurement range spans from 0 to 99999.9 hours, accurately tracking operating time. The device holds CE certification and meets IP50 and IP65 protection standards ensuring dust and water resistance.

This hour meter is widely used in automation, process control, and machinery maintenance to monitor operational duration, helping to schedule timely maintenance and ensuring equipment efficiency.

Six-digit LCD with backlight for precise time tracking. Electrical reset method provides user convenience. Compact panel mount design with D-shaped case. Wide operating temperature range from -40°C to 85°C. Supports 60V AC supply with a solid-state construction.

IP50 and IP65 rated for protection against dust and water ingress. Applications include automotive, marine, and industrial machinery monitoring. Complies with CE certification for industrial standards. For quality industrial hour meters with robust performance, browse the Electronics & Electricals category at EnvMart.
