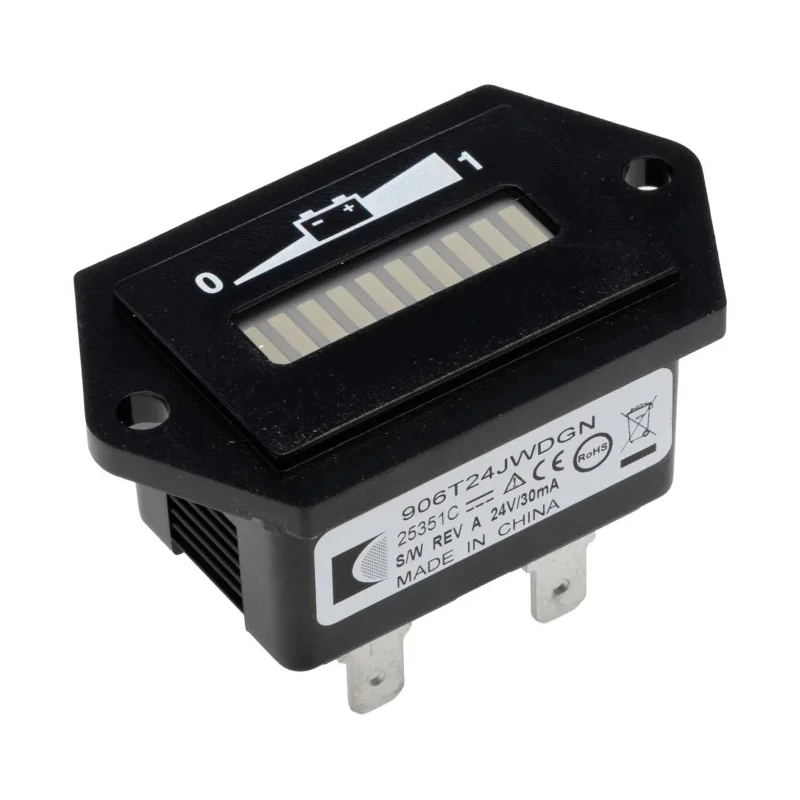

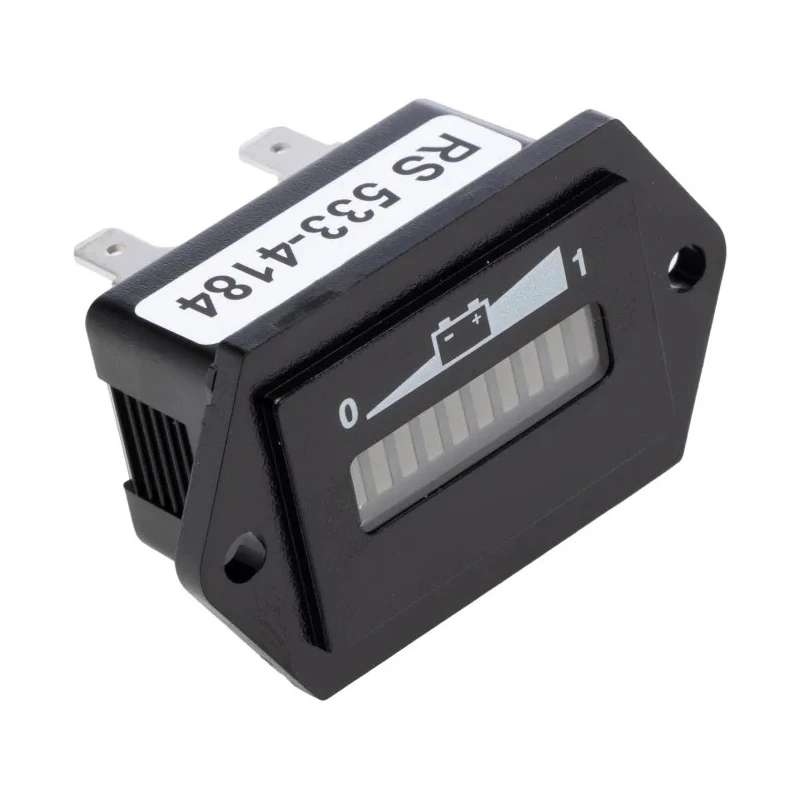

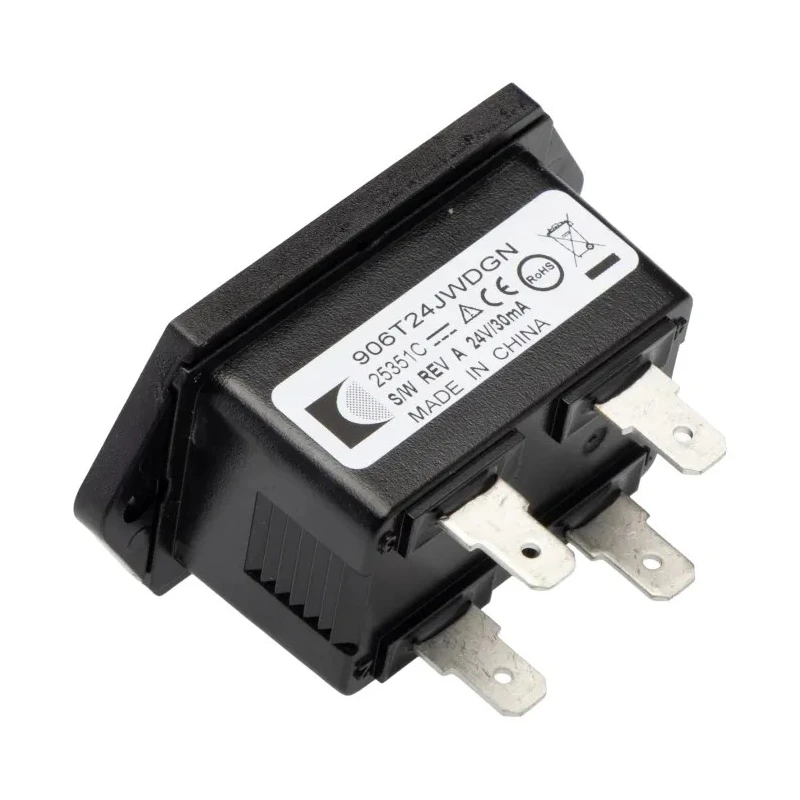

Curtis 906 Series Digital Voltmeter DC LED Display 10-Digits 31.2 mm x 53.2 mm 17676766-105

Free Delivery in India | Lowest Global Shipping Charges

Curtis 906 Series Digital Voltmeter DC LED Display 10-Digits 31.2 mm x 53.2 mm 17676766-105

Name: Curtis 906 Series Digital Voltmeter DC LED Display 10-Digits 31.2 mm x 53.2 mm 17676766-105
Brand: Curtis
SKU: 339162
Price: 109.63 USD
Availability: InStock



Category Digital Voltmeter Brand Curtis Condition New

Specifications

Country of Origin	China
Display Type	LED
Brand	Curtis
Depth	28.8mm
Series	906
Maximum Operating Temperature	85°C
Current Type	DC
Number Of Digits	10
Minimum Operating Temperature	-40°C
Digit height	10mm
Standards/Approvals	SAE J1378
Cutout Height	31.2mm
Cutout Width	53.2mm
RS PRO Digital Voltmeter DC, LED Display, 25 mm, 37 mmBrand	RS PRO
Curtis Digital Voltmeter, LED DisplayBrand	Curtis

Key Features

Displays 10 digits with 10 mm high LEDs for clear visibility.
Operating temperature range from -40°C to 85°C ensuring reliability in diverse environments.
Solid-state design provides durable and reliable battery state-of-charge indication.
Features a 10-bar LED charge indicator with tri-colour LED array and 10 kohm impedance.
Integrated reset methods include Open Circuit Reset and High Voltage Reset for battery monitoring.
Compact size requiring minimal panel cutout and clearance behind the panel.
Suitable for commercial cleaning equipment, electric bicycles, golf cars, and mobility aids.
Complies with SAE J1378 standard for quality and performance assurance.

Product Description

Curtis 17676766-105 Digital Voltmeter DC LED Display is designed for reliable and accurate battery monitoring with a clear 10-digit LED display. It is compact with a cutout height of 31.2 mm and width of 53.2 mm, featuring a digit height of 10 mm, making it ideal for panel mounting in constrained spaces.

This voltmeter operates flawlessly within a temperature range of -40°C to 85°C, ensuring excellent performance under harsh industrial conditions. Its solid-state construction gives long-lasting reliability and accuracy for displaying battery state-of-charge.

The model 906 series features a 10-bar LED display and a tri-colour LED array that provides visual alerts for energy reserve and empty battery status by flashing LEDs at 70% and 80% depth of discharge respectively. It uses a 10 kohm impedance to minimize battery load.

Two reset methods are integrated: Open Circuit Reset (OCR) when reconnecting to battery cells measuring 2.09V and High Voltage Reset (HVR) when the battery voltage per cell reaches 2.35V for 6 continuous minutes, allowing precise state-of-charge monitoring.

10-digit LED display for clear battery voltage reading. Tri-colour LED array for charge level and battery status indication. Compact panel mount design requiring minimal clearance. Solid-state electronics for enhanced durability.

Compliant with SAE J1378 for quality assurance. Operates in extreme temperatures from -40°C to 85°C. Applicable in commercial cleaning, electric vehicles, and medical mobility aids. Easy panel mounting with 31.2 mm x 53.2 mm cutout dimensions.

This Digital Voltmeter is widely used in industrial automation, electrical control systems, commercial vehicles, and equipment requiring precise battery status monitoring. Its ruggedness and ease of installation make it a favourite in demanding environments.
