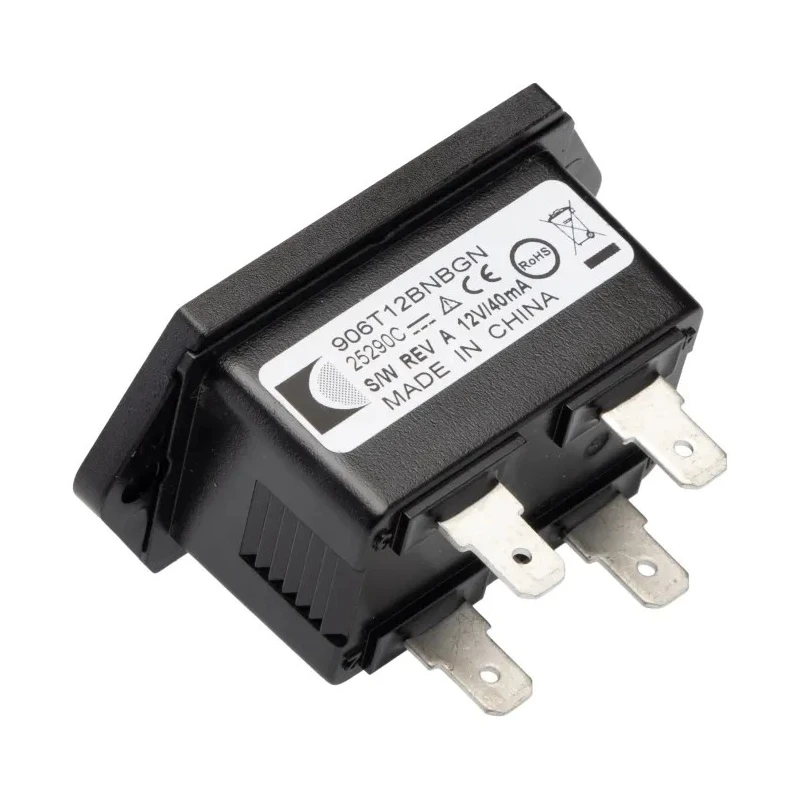

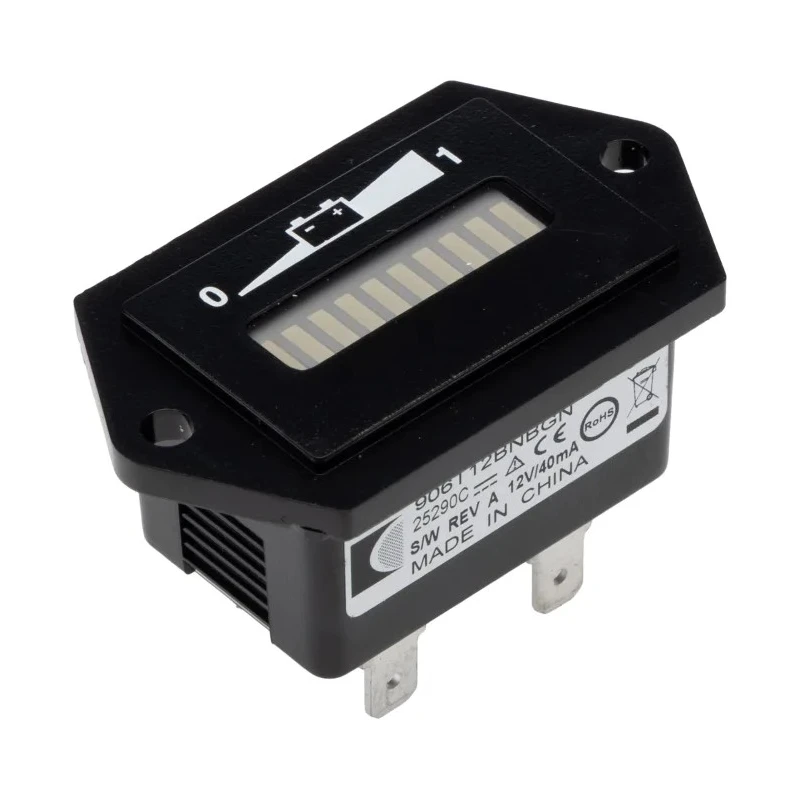

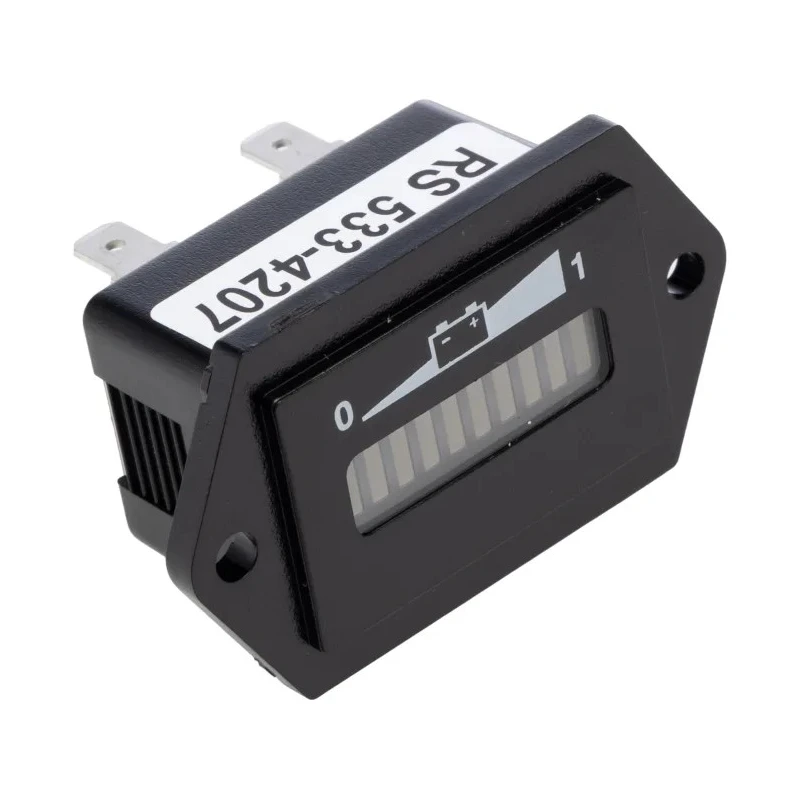

Curtis 906 Series Digital Voltmeter DC, LED Display 10-Digits, 31.2 mm Cutout Height, 53.2 mm Cutout Width 906T12BNBGN

Free Delivery in India | Lowest Global Shipping Charges

Curtis 906 Series Digital Voltmeter DC, LED Display 10-Digits, 31.2 mm Cutout Height, 53.2 mm Cutout Width 906T12BNBGN

Name: Curtis 906 Series Digital Voltmeter DC, LED Display 10-Digits, 31.2 mm Cutout Height, 53.2 mm Cutout Width 906T12BNBGN
Brand: Curtis
SKU: 323803
Price: 119.77 USD
Availability: InStock



Category Digital Voltmeter Brand Curtis Condition New

Specifications

Country of Origin	China
Display Type	LED
Brand	Curtis
Model	906T12BNBGN
Depth	28.8mm
Series	906
Maximum Operating Temperature	85°C
Current Type	DC
Number Of Digits	10
Minimum Operating Temperature	-40°C
Digit height	10mm
Standards/Approvals	SAE J1378
Cutout Height	31.2mm
Cutout Width	53.2mm
Curtis Digital Voltmeter, LCD DisplayBrand	Curtis

Key Features

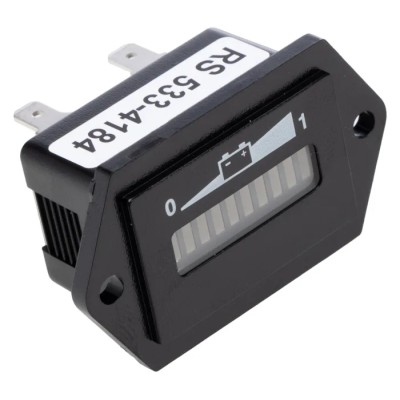

The 10-bar LED display shows battery state-of-charge successively.
Features flashing LED alerts for 70% depth of discharge and 80% empty status warnings.
Operates on 12V DC, continuously monitoring battery state when connected.
Compact installation fitting cutouts 31.2 mm high and 53.2 mm wide.
Capable of operating between -40°C to 85°C for durable industrial use.
Solid-state design ensures long-life reliability and accurate readings.
Memory function recalls state-of-charge after battery disconnection.
Complies with SAE J1378 standards for quality and safety.

Product Description

The Curtis 906T12BNBGN is a digital voltmeter designed for DC voltage measurement with a 10-digit LED display for high-accuracy readings. It features a 10-bar LED state-of-charge display that successively indicates battery status with flashing alerts signaling energy reserve and empty battery conditions.

This model is designed to be compact, fitting panel cutouts of 31.2 mm height and 53.2 mm width with a depth of 28.8 mm, allowing easy panel mounting in industrial and automotive control systems. It operates reliably in harsh environments with an operating temperature range from -40°C to 85°C, making it suitable for a wide range of industrial applications.

The instrument provides two reset methods: Open Circuit Reset when reconnected to the battery at 2.09V per cell and High Voltage Reset after 6 minutes at 2.35V per cell, ensuring accurate state-of-charge readings. Its solid-state design and integrated single-chip circuitry assure long service life and reliability.

The Curtis 906 Series digital voltmeter is ideal for battery monitoring in sectors such as industrial automation, automotive, HVAC control panels, and manufacturing processes. It allows continuous monitoring via a key switch-activated LED display and retains charge state memory after battery disconnection.

The 10-bar LED displays battery state-of-charge successively. Provides flashing alerts for energy reserve and empty battery status. Compact design for panel mounting with minimum clearance requirements. Single-chip integration for enhanced reliability and lifespan.

Functions in a wide temperature range from -40°C to 85°C. Memory feature recalls battery charge state after disconnect. Complies with SAE J1378 industry standards. Accurate and reliable DC voltage monitoring for industrial use.

Suitable for automotive and process control panel integration.
