Curtis 700 Hour Meter, 6 Digit LCD Panel Mount Electrical Reset 60V AC 85°C 701DR002N-1248D2060A

Free Delivery in India | Lowest Global Shipping Charges

Curtis 700 Hour Meter, 6 Digit LCD Panel Mount Electrical Reset 60V AC 85°C 701DR002N-1248D2060A

Name: Curtis 700 Hour Meter, 6 Digit LCD Panel Mount Electrical Reset 60V AC 85°C 701DR002N-1248D2060A
Brand: Curtis
SKU: 319674
Price: 65.09 USD
Availability: InStock



Category Panel Meter Brand Curtis Condition New

Specifications

Country of Origin	China
Display Type	LCD
Brand	Curtis
Function	Hour Meter
Model	701DR002N-1248D2060A
Connection Type	Tab
Depth	32mm
Mount Type	Panel Mount
Series	700
Maximum Operating Temperature	85°C
Number Of Digits	6
Digit height	5mm
Cutout Height	22.2mm
Cutout Width	45mm
Maximum Supply Voltage	60V ac
Reset Method	Electrical
Curtis 700 Hour Meter, 6 Digit LCD 60V acBrand	Curtis
HR.METER FORM 2 12-24VDCBrand	NEUTRAL

Key Features

Provides precise hour measurement with a 6-digit LCD display featuring backlighting.
Designed for panel mounting with a compact D-shaped case and tab connections.
Operates with a maximum supply voltage of 60V AC and supports an operating temperature range up to 85°C.
Utilizes an electrical reset method and includes a 3-wire tab connection system.
Digit height is 5mm for clear visibility of readings.
Measurement range spans from 0 to 99999.9 hours, suitable for various industrial applications.

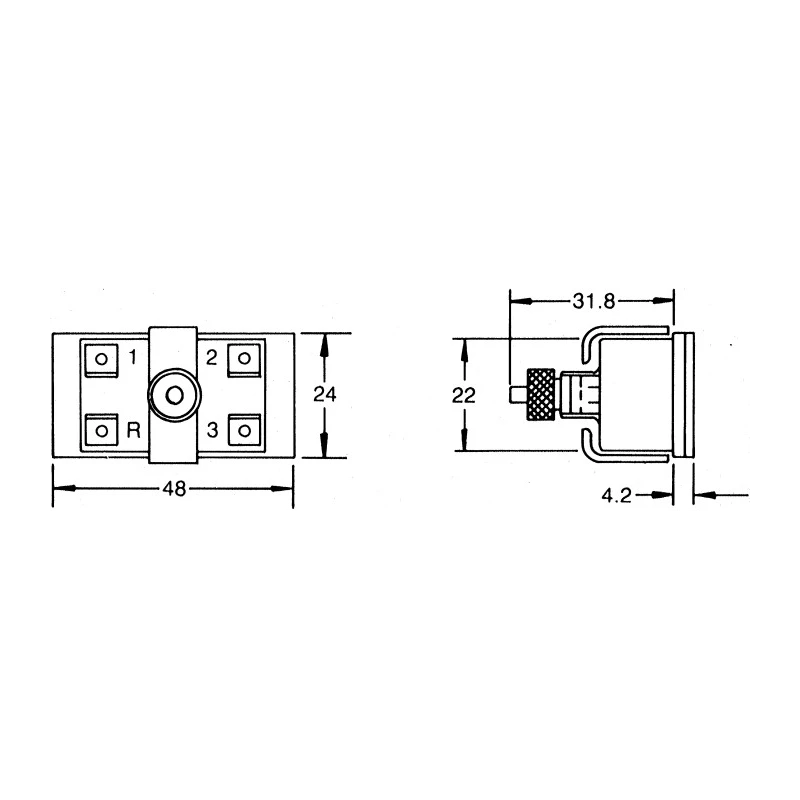

Depth of the device is 32mm with cutout dimensions of 22.2mm height and 45mm width.
Applicable for automotive, marine, and other industrial uses requiring accurate runtime monitoring.

Product Description

Curtis 701DR002N-1248D2060A is a high-precision 700 hour meter designed for industrial and automotive applications requiring reliable runtime measurement. Featuring a 6-digit LCD with backlighting, this panel-mount hour meter ensures excellent visibility of readings, even in dimly lit environments.

This device is built with a robust D-shaped casing and mounts easily on panels using the specified cutout dimensions of 22.2mm by 45mm. The meter operates on electrical reset and employs a 3-wire tab connection method for straightforward integration into control systems.

Rated for a maximum supply voltage of 60V AC, the meter performs accurately within an operating temperature range from -40°C to 85°C, making it suitable for harsh industrial environments including automotive and marine sectors.

The digit height of 5mm and a depth of 32mm provide a compact and user-friendly display. The measuring range spans from 0 to 99999.9 hours, facilitating detailed runtime tracking for process control and maintenance scheduling.

Precise 6-digit LCD display with backlighting enhances reading visibility. Panel mount design with D-shaped case offers secure fitment. Electrical reset functionality supports easy measurement cycle restarts. Operates on 60V AC supply with tab connection type for durable electrical contacts.

Wide operating temperature range (-40°C to 85°C) ensures reliable performance. Compact dimensions fit standard panel cutouts for seamless integration. Ideal for industrial, automotive, and marine monitoring applications.

The Curtis 700 Hour Meter is CE certified and UL approved, providing confidence in quality and compliance for demanding applications. It serves a vital role in process control, equipment maintenance, and operational runtime tracking.
