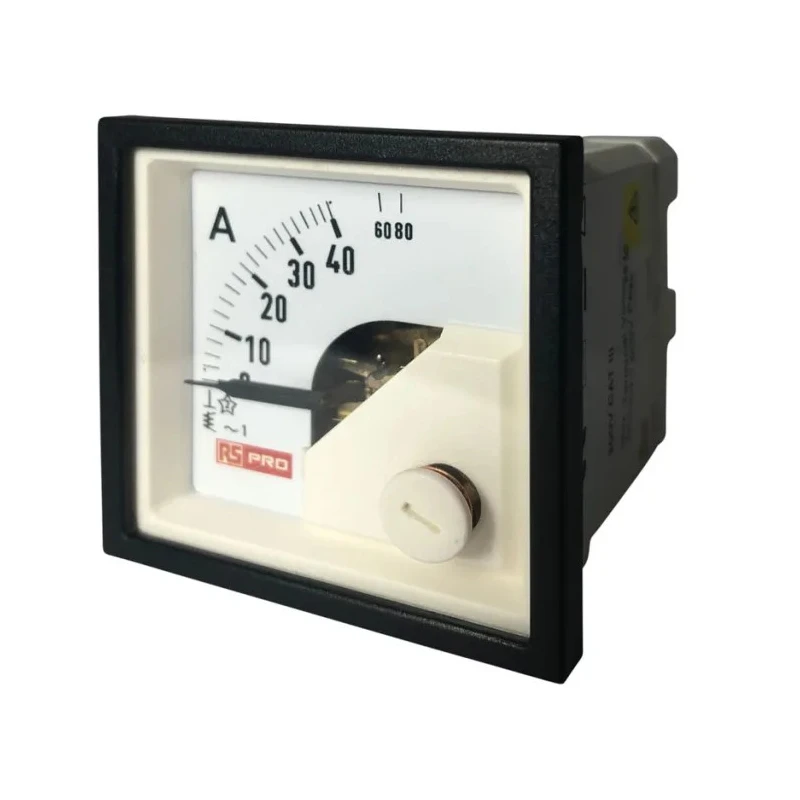

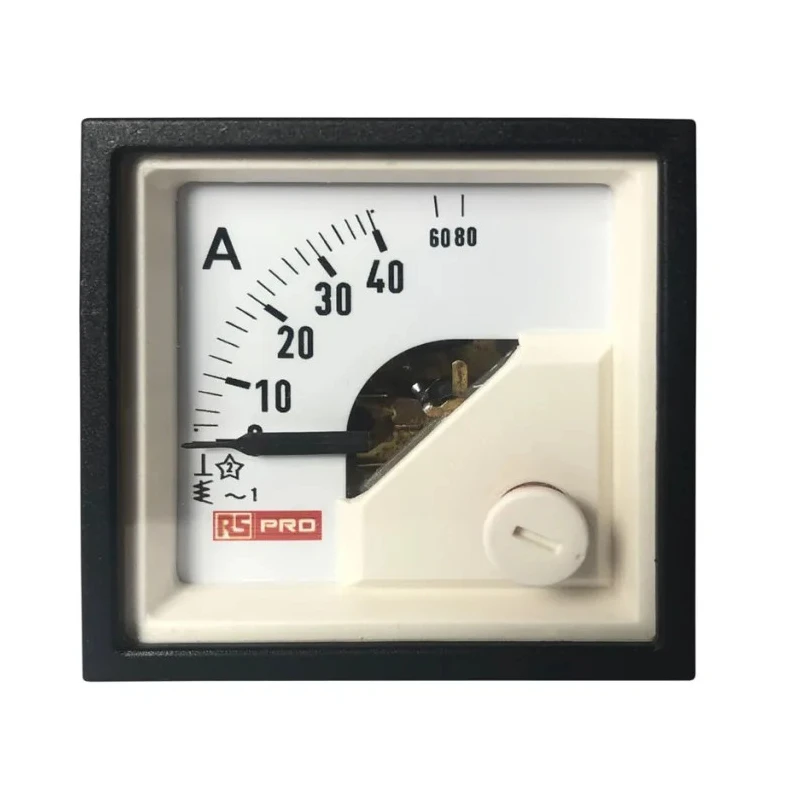

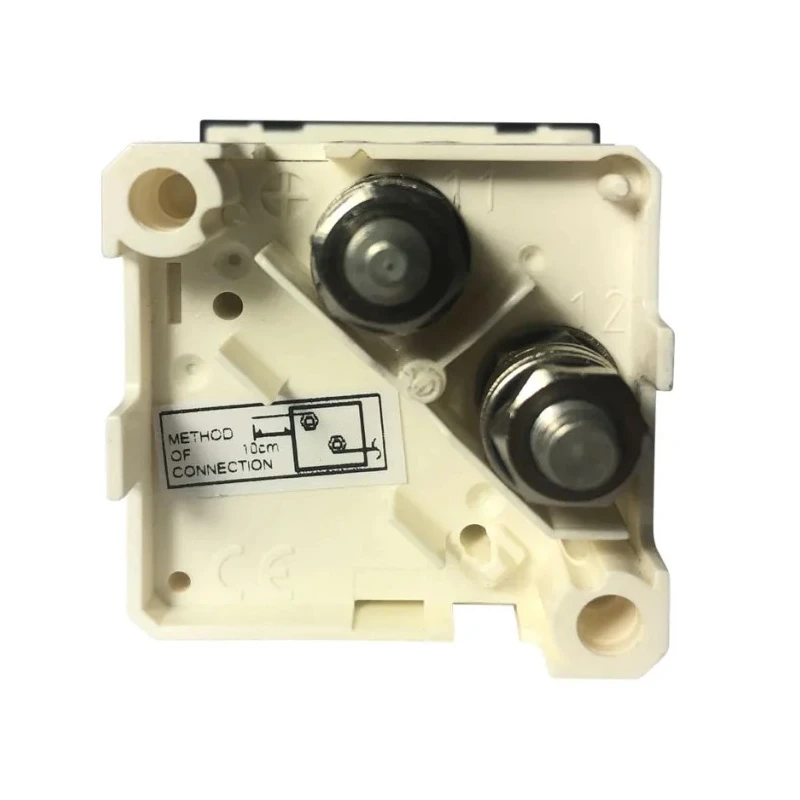

RS PRO Analogue Panel Ammeter 100 A AC, 45 mm x 45 mm, 1% Accuracy Moving Iron 186-2428

RS PRO 186-2428 Analogue Panel Ammeter is a precise measurement instrument designed for AC current measurement up to 100 A with 1% accuracy using a moving iron movement. Housed within a durable moulded polycarbonate square case measuring 45 mm by 45 mm cutout, it is ideal for mounting in control and switchgear panels of various machinery and consoles.

Operating reliably within a temperature range of -10°C to 65°C, this ammeter features a knife-edge pointer moving from 0° to 90° ensuring clear and accurate current indication. It shows true RMS values and is designed to be largely independent of waveform variations, making it suitable for complex industrial power systems.

This instrument withstands mechanical shocks up to 15g and continuous overloads up to twice the nominal current, ensuring robust performance in demanding industrial and manufacturing environments. The scales are calibrated down to 10% for low current accuracy and can be extended with overload multipliers like X2, X3, X5, or X6 for motor inrush current measurements.

Certification to industry standards such as EN 61010, IEC 61010, IEC51/DINEN60051, 2014/30/EC EMC directive, low voltage directive 2014/35/EC, IP52 rating, and UL 94 V-0 flame retardant compliance enhances its trustworthiness in professional applications.

This panel ammeter is suitable for industrial, automation, electrical, and control system use cases, providing precise, reliable current measurement across a broad range of applications in manufacturing, HVAC systems, water treatment, and process control environments.

The ammeter measures AC current nominal range 100mA to 100A direct connection with true RMS indication. The device’s construction uses high-quality materials for durability and safety compliance. It supports shock resistance and humidity tolerance aligned with harsh industrial environments.

Overload handling and precise pointer movement ensure accurate readings for electrical monitoring and diagnostics. Compact dimensions and standard cutout enable easy panel integration in industrial control systems. Explore the RS PRO range at EnvMart for professional industrial measurement solutions.
