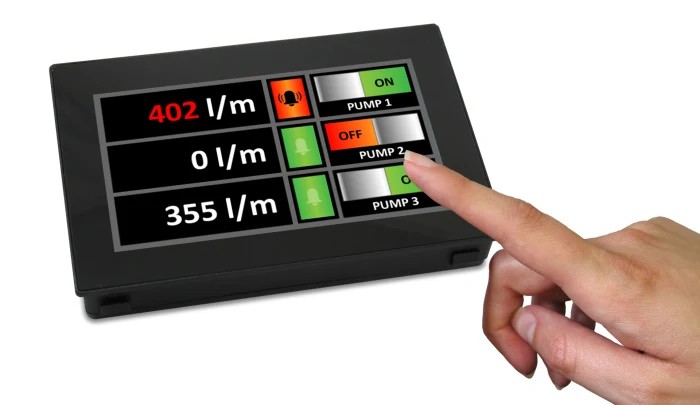

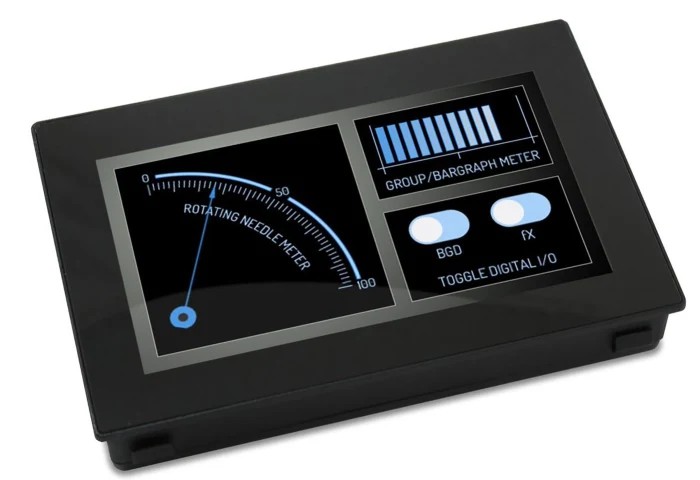

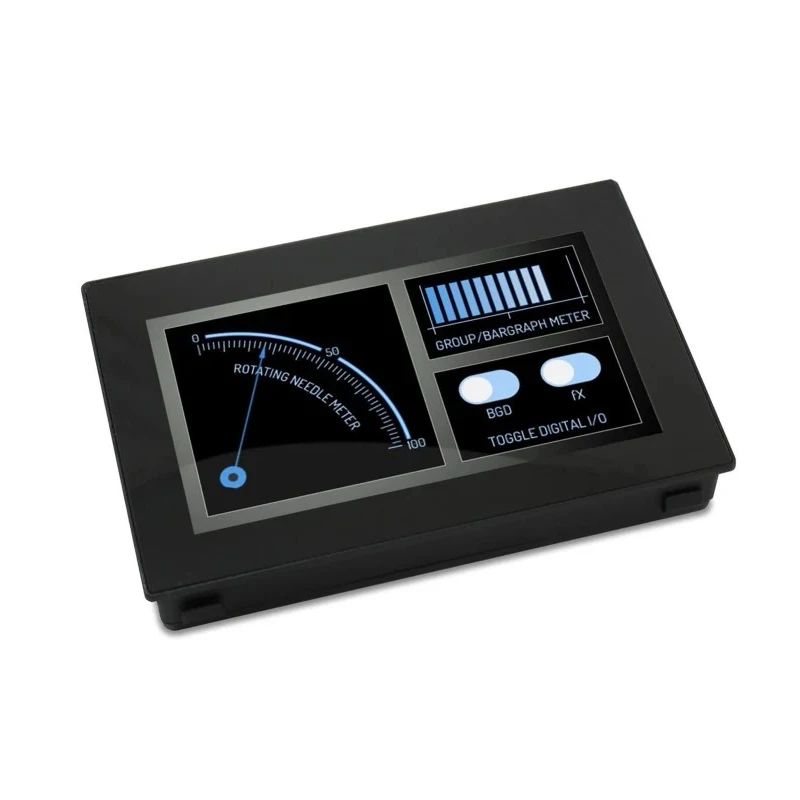

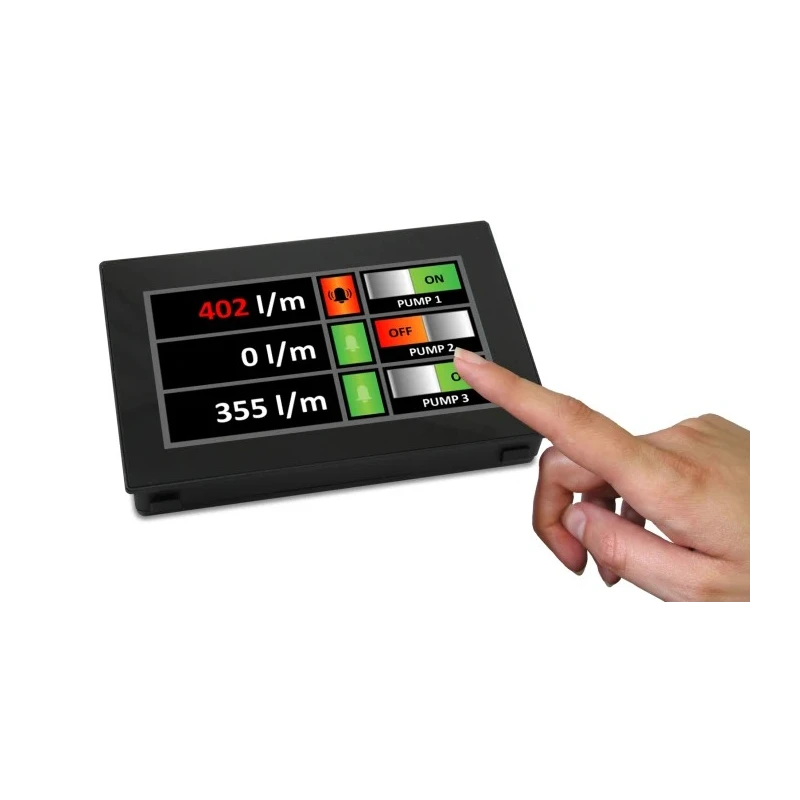

Lascar PanelPilotACE TFT Digital Panel Multifunction Meter for Current and Voltage with 4.3 inch Touchscreen 77 mm SGD 43-A

Lascar SGD 43-A is a high-performance digital panel multifunction meter featuring a 4.3 inch capacitive touch TFT display with 262k colours. It is designed to measure current and voltage with high resolution and reliability, suitable for industrial automation and process control applications.

This meter supports four 16-bit bipolar analogue inputs capable of measuring up to ±40 V dc or 4-20 mA signals, enabling precise electrical measurements. The device is equipped with eight configurable digital input/output pins, four 8-bit PWM outputs, and two alarm outputs for enhanced control and monitoring functionality.

Communication is versatile, with RS-232, I²C, and SPI interfaces to integrate the meter within complex systems. The meter draws power from a 5-30 V dc supply, consuming typically 300 mA at 5 V, and is housed in a robust panel mount enclosure sized 119.3 x 79.8 x 20 mm for easy installation.

The operating temperature range of 0°C to 40°C suits typical industrial environments. Users can rapidly design and program custom interfaces via the free PanelPilotACE Design Studio software, leveraging drag-and-drop tools and extensive memory (1 Gbit DDR2 SDRAM) for application versatility.

Screw terminal connections simplify wiring and panel integration. Accessories are available for expanded measurement capabilities such as RS485 and temperature monitoring.

This multifunction meter is ideal for use in electrical, automation, HVAC, manufacturing, and laboratory settings demanding precise current and voltage monitoring with user-friendly interfaces.

The package includes the SGD 43-A panel meter and all necessary hardware for panel mounting. Additional accessory kits such as the SGD 43-A-DK+ development kit provide enhanced input/output control and connectivity options for development purposes.

Browse our extensive range of industrial Panel Meters and automation control solutions to find related products optimized for your applications. The meter supports 4 bipolar analogue inputs up to ±40 V dc, providing high precision 16-bit resolution.

It includes 8 digital input/output pins useful for versatile automation control. Equipped with 4 PWM outputs and 2 alarm outputs for advanced signaling capabilities. The device operates on a power supply range of 5-30 Vdc with typical consumption of 300 mA at 5 Vdc.

Communication interfaces include RS-232, I²C, and SPI for integration with other devices. Panel mounting is simplified with screw terminal connections and a compact form factor of 119.3 x 79.8 x 20 mm. Operating temperature range is from 0°C to 40°C ensuring reliable performance in industrial environments.

Windows-based drag and drop software enables rapid user interface customization through PanelPilotACE Design Studio. The meter includes 1 Gbit DDR2 SDRAM memory for complex application storage.
