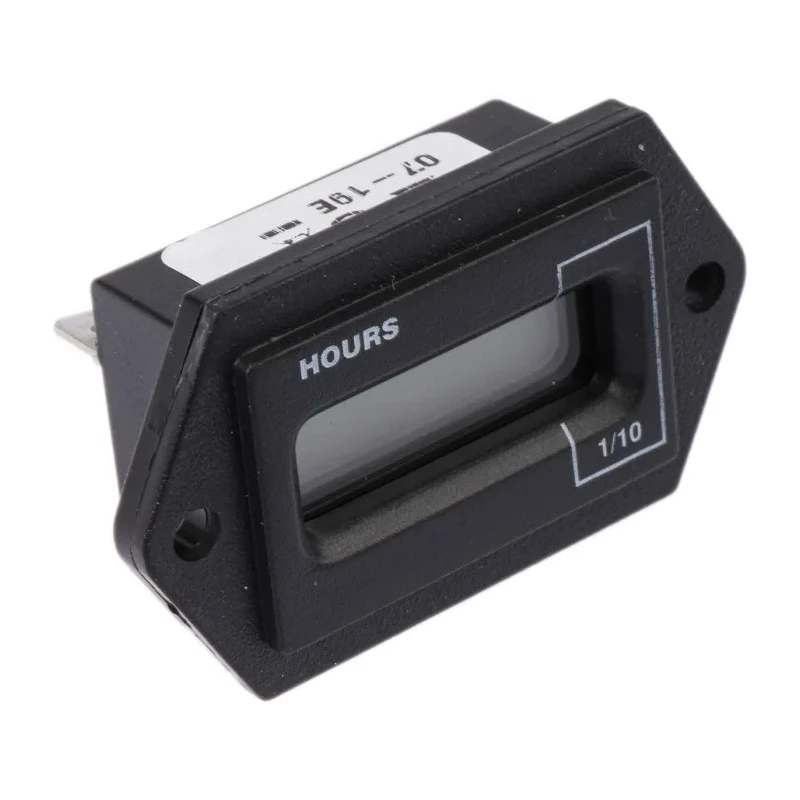

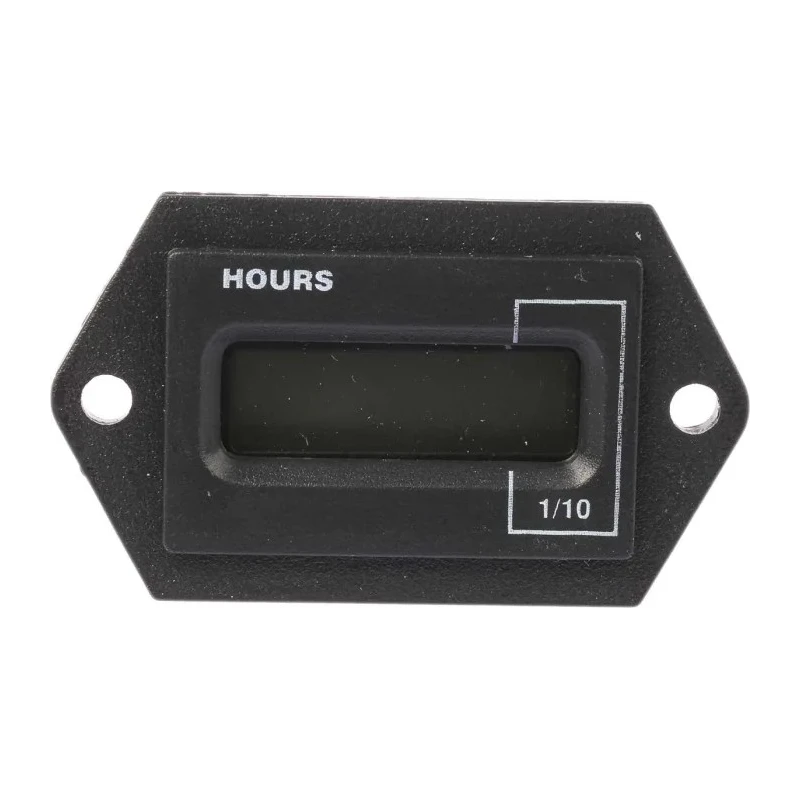

Curtis 6 Digit LCD Panel Mount Hour Meter 230V AC Solid-State Electrical Reset 700TXR002N-48150D100230A

The Curtis 700TXR002N-48150D100230A is a precision hour meter equipped with a 6-digit LCD display designed for panel mount installation. It features a robust solid-state T-shaped case and operates reliably at a maximum supply voltage of 230V AC. The device is built to measure accumulated operating hours accurately with an electrical reset function, ideal for industrial and marine control systems.

Its display conveys hour counting clearly with a digit height of 5mm, supported by backlighting for operation in various lighting environments. The meter is suitable for harsh conditions with an operating temperature range of -40°C up to 85°C, making it adaptable to a wide variety of applications requiring environmental resilience.

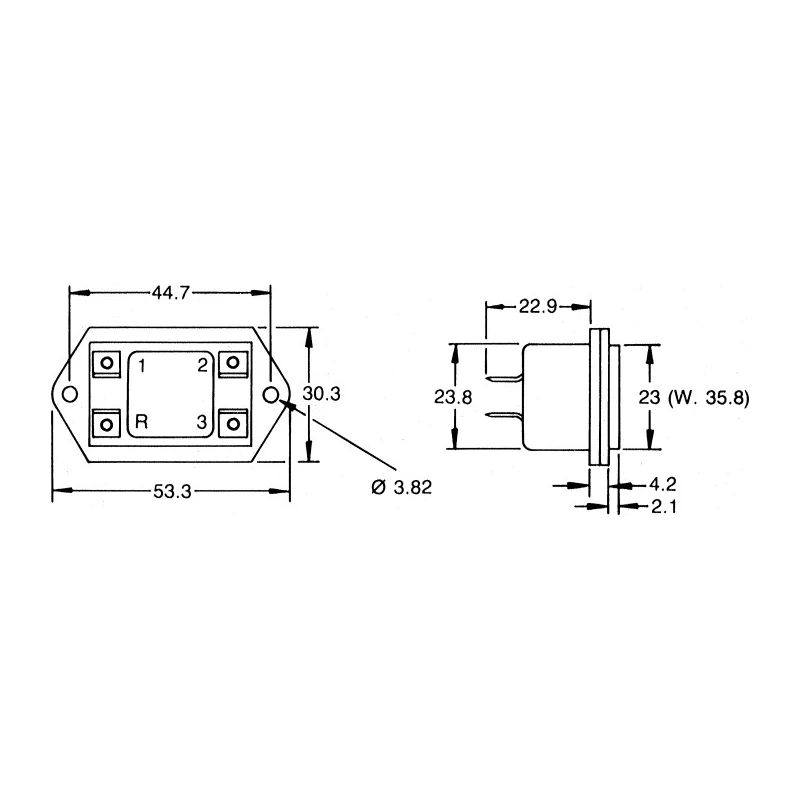

The hour meter connects via a tab type connection and fits panels utilizing a 36.8mm by 24.1mm cutout. Its 28.8mm depth ensures it occupies minimal space on dashboards or control boards.

Designed for precision process control, the Curtis hour meter supports measurement ranges up to 99999.9 hours, providing reliable time logging for machinery operation, maintenance scheduling, and system monitoring. This model is IP65 rated and CE certified, testifying to its protection against dust and water ingress as well as compliance with European safety standards.

Manufactured in the United Kingdom, this hour meter offers solid construction and dependable performance for automotive, marine, and industrial automation systems. Solid-state panel mount hour meter with 6-digit LCD display.

Electrical reset method enables easy resetting of hour count. Wide operation temperature range from -40°C to 85°C for tough environments. Tab connection type simplifies electrical installation. Compact size with 36.8mm x 24.1mm cutout and 28.8mm depth.

Backlit display for visibility in low-light conditions. Measurement range from 0 to 99999.9 hours suitable for industrial tracking. IP65 rated and CE certified, ensuring durability and compliance. Manufactured with quality standards in the United Kingdom.
