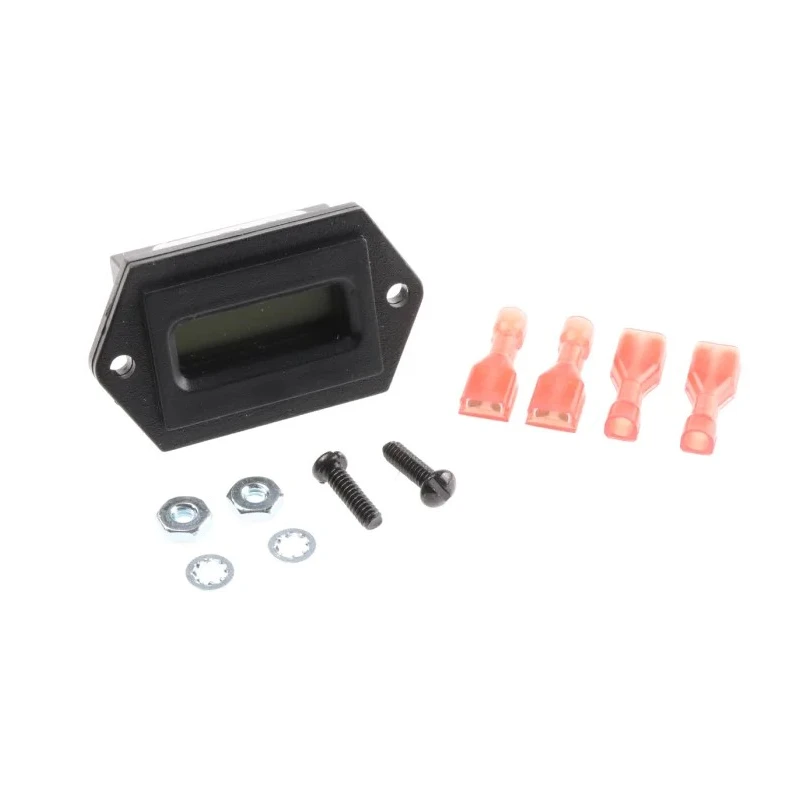

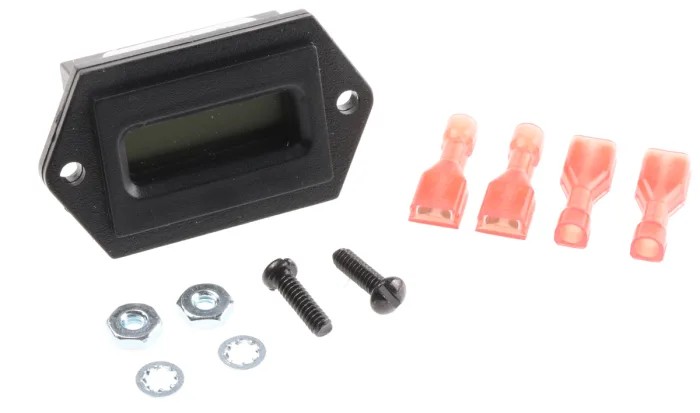

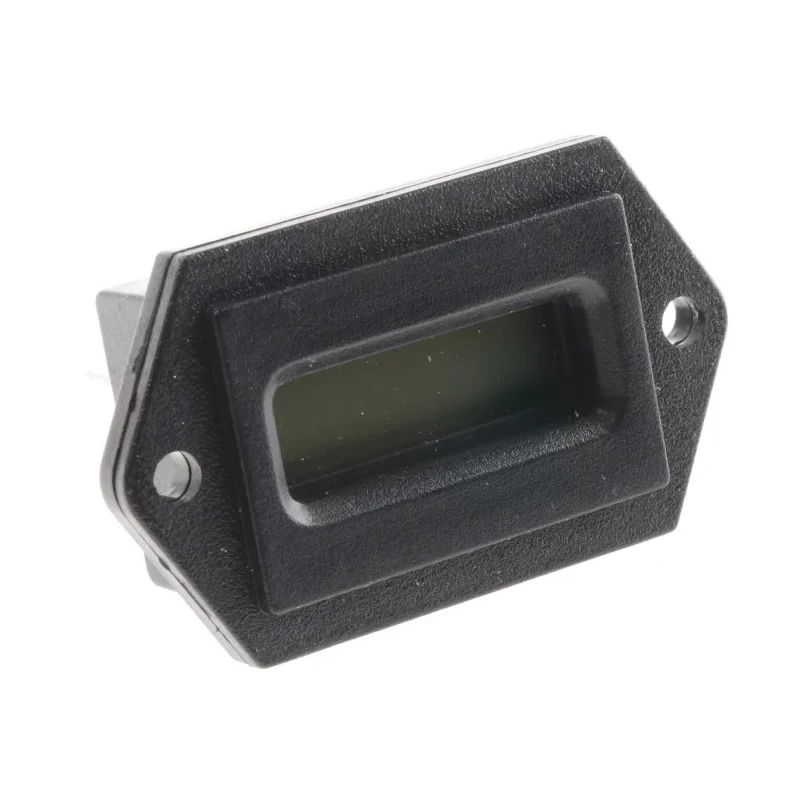

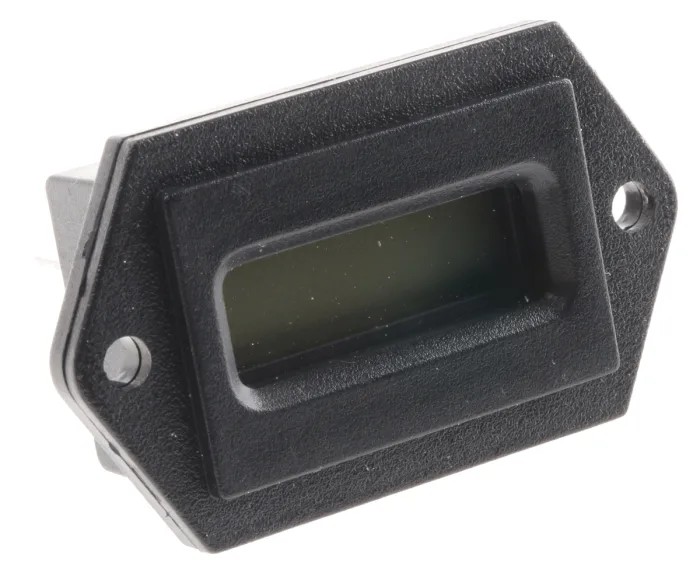

Curtis Digital Counter 6 Digit LCD Display 48V DC Voltage Flange Mount 703TXR002N-1248D

Free Delivery in India | Lowest Global Shipping Charges

Curtis Digital Counter 6 Digit LCD Display 48V DC Voltage Flange Mount 703TXR002N-1248D

Name: Curtis Digital Counter 6 Digit LCD Display 48V DC Voltage Flange Mount 703TXR002N-1248D
Brand: Curtis
SKU: 157101
Price: 55.32 USD
Availability: InStock



Category Digital Counter Brand Curtis Condition New

Specifications

Country of Origin	United Kingdom
Display Type	LCD
Brand	Curtis
Function	Counter
Model	703TXR002N-1248D
Connection Type	Tab
Depth	28.8mm
Mount Type	Flange
Series	700
Maximum Operating Temperature	85°C
Number Of Digits	6
Digit height	5mm

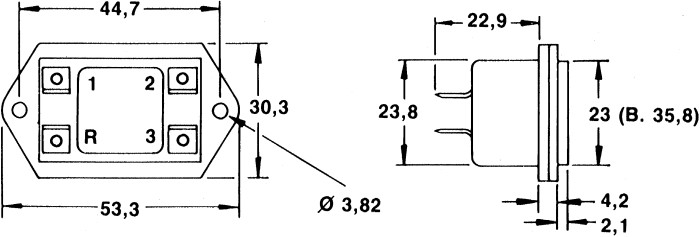

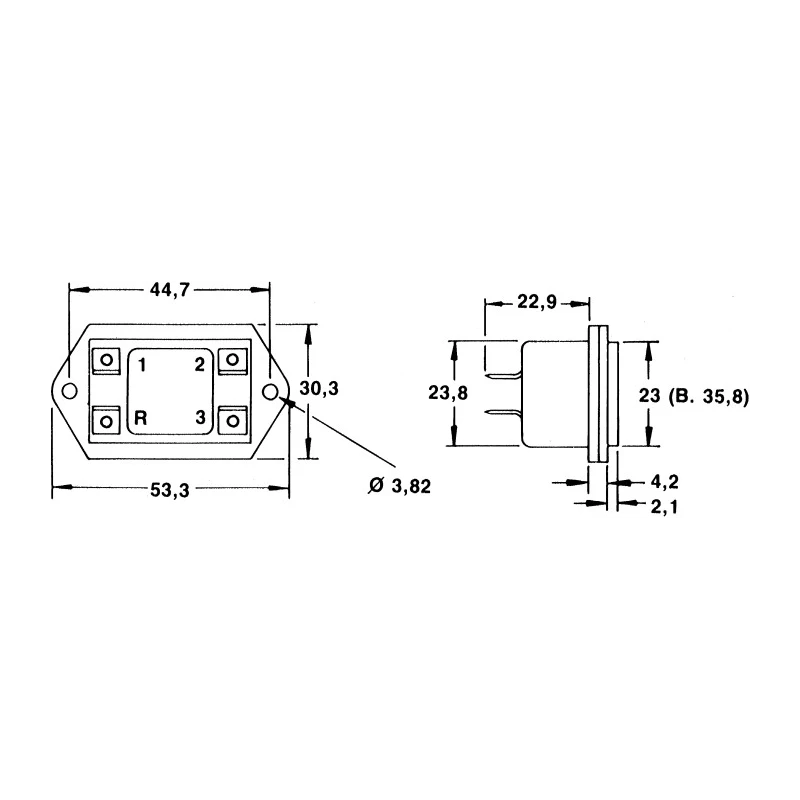

Cutout Height	24.1mm
Cutout Width	36.8mm
Count Direction	Up
Maximum Supply Voltage	48V dc
Reset Method	Electrical
Curtis 700 Counter, 6 Digit LCD 48V dcBrand	Curtis
COUNTER FORM 3 12-24VDCBrand	NEUTRAL

Key Features

Impulse flange mount counter designed for industrial applications.
Features 6-digit LCD display with 5mm digit height for clear readings.
Operating voltage ranges up to 48V DC with a maximum count frequency of 500Hz.
Count direction is upward with electrical reset method available.
Compact panel cutout dimensions and flange mounting facilitate easy installation.
Wide operating temperature range from -40°C to 85°C suitable for harsh environments.

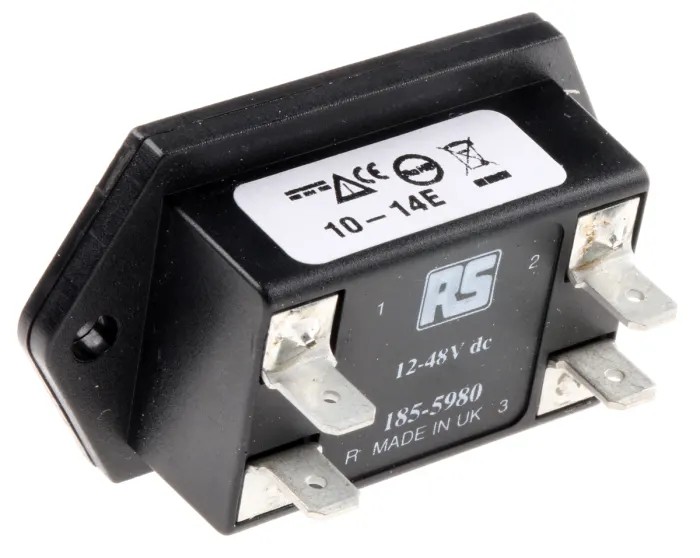

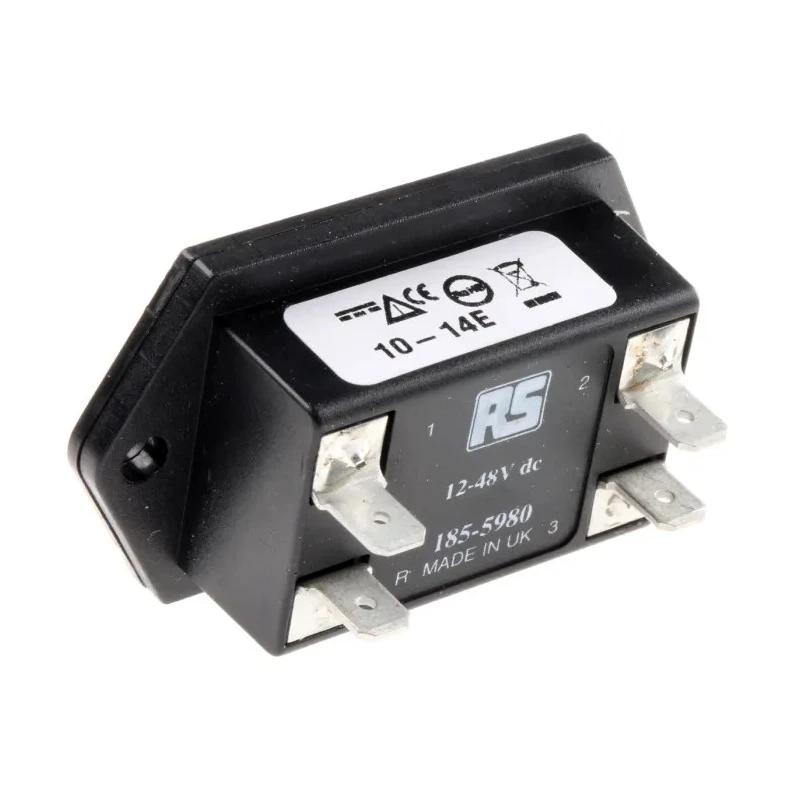

Tab terminal connections enable secure and simple wiring.
Supports pulse count variation programmable between -9999999 and 99999999.

Product Description

The Curtis 703TXR002N-1248D digital counter is a robust, industrial-grade counter device featuring a 6 digit LCD display and flange mount design. Operating at a maximum supply voltage of 48V DC, it offers reliable counting performance for industrial automation and process control applications.

This counter supports up counts with a maximum counting frequency of up to 500Hz, making it suitable for fast counting tasks. Its electrical reset method provides remote reset capability, enhancing operational flexibility.

Equipped with a 5mm digit height LCD, the counter ensures clear visibility of the count values. The flange mount installation and panel cutout dimensions of 36.8mm width and 24.1mm height allow easy and secure mounting in control panels.

Designed to operate efficiently in harsh environments, it supports a wide operating temperature range from -40°C up to 85°C. The device uses tab terminal connections for straightforward wiring and installation.

Pulse variation programming from -9999999 to 99999999 expands the counter's versatility across various industrial counting and monitoring systems, including manufacturing assembly lines and process control environments.

Impulse flange mount counter with 6 digit LCD display. Maximum supply voltage of 48V DC and up count direction. Tab terminal connections with electrical reset capability. Wide -40°C to 85°C operating temperature range. Compact design with flange mount and panel cutout for easy installation.

Suitable for industrial automation, control, and monitoring applications. Programmable pulse variation from -9999999 to 99999999.

This Curtis digital counter is manufactured in the United Kingdom and is part of the 700 series known for precision and durability in industrial settings. It is ideal for users requiring a reliable counting solution for control systems and process automation.
