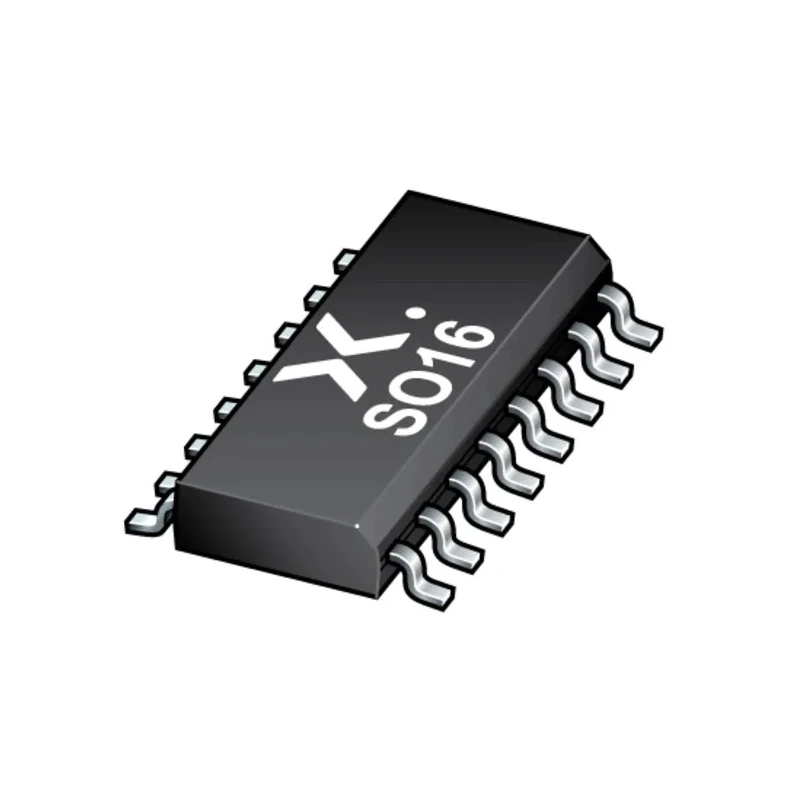

Nexperia 8-Bit Serial-In/Parallel-Out Shift Register Surface Mount 16 SO Package 74HC595D,118

Nexperia 74HC595D,118 is a high-performance 8-bit serial-in, serial or parallel-out shift register with a storage register and 3-state outputs. It is manufactured in a surface mount 16-pin SOIC package optimized for compact PCB designs.

The device operates within a supply voltage range of 2V to 6V and supports high-frequency operation with separate clock inputs for both the shift and storage registers, enhancing data transfer timing control. An asynchronous reset (MR) input provides immediate clearing of the register when driven low, while asynchronous preset functionality adds additional control capability.

The 74HC family logic ensures broad compatibility with modern semiconductor applications. The device’s serial input (DS) and serial output (Q7S) permit easy cascading, enabling multiple shift registers to be chained for expanded I/O port capacity in embedded and control systems.

Compact surface mount form factor with dimensions approximately 10mm in length and 1.75mm in height allows efficient board layout in industrial, laboratory, and commercial electronic systems. The component is engineered for use in display drivers, data storage systems, and control units requiring precise bit-level data manipulation.

Minimum supply voltage: 2V. Maximum supply voltage: 6V. Package Type: 16-pin SOIC surface mount. Logic family: 74HC. Number of stages: 8-bit uni-directional shift register. Asynchronous reset and preset functionality. Operating temperature range: -40°C to 125°C.

Pin count: 16 pins. Length: 10 mm; Height: 1.75 mm.

This device is ideally suited for electronic circuit designers and engineers requiring reliable expansion of digital output ports. It finds applications in industrial automation, embedded control systems, data acquisition, and digital display control modules.

Country of origin is China. This ensures consistent manufacturing quality aligned with international semiconductor standards. Nexperia’s 74HC595D,118 supports seamless integration with other logic and microcontroller components in complex systems.
