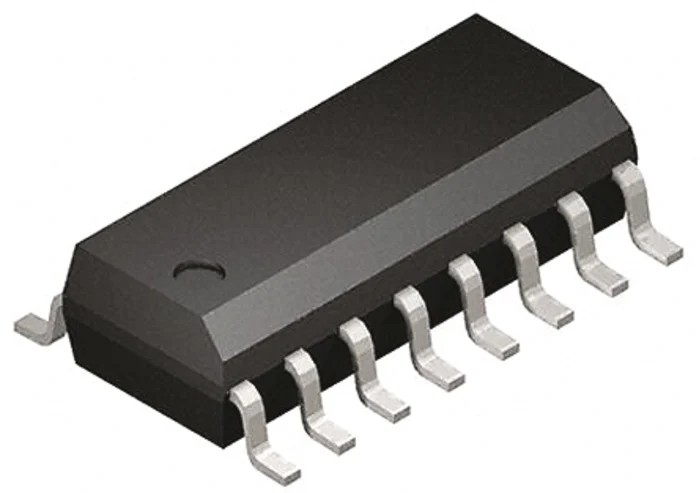

onsemi AC Logic Family 1 12-Stage Binary Ripple Counter Single Ended 16-Pin SOIC MC74AC4040DG

onsemi MC74AC4040DG is a 1 12-Stage Binary Ripple Counter device from the AC logic family designed for high-speed digital counting applications. It provides single-ended input and output signals housed in a compact 16-pin SOIC surface-mount package.

This counter IC supports a wide supply voltage range from 2V to 6V, making it adaptable to various power conditions. Operating efficiently at clock frequencies up to 140MHz, it ensures rapid digital signal processing which is critical in timing and frequency counting.

The maximum propagation delay time is 10ns at capacitance load, favoring applications requiring quick switching. Its temperature rating from -40°C to 85°C confirms reliable operation in industrial environments, while compliance with UL 94 V-0 flammability rating guarantees enhanced safety.

Featuring a negative edge trigger flip-flop type and a single element per chip, this IC provides precise and effective counting functions, essential in computing, measurement, and signal processing equipment.

This binary ripple counter features single-ended input and output. It operates with a supply voltage range from 2V minimum to 6V maximum. The device supports a maximum clock frequency of 140MHz suitable for high-speed counting.

Propagation delay time is a maximum of 10ns at CL, enabling fast response. Designed for surface mount technology with a SOIC package type. Operating temperature ranges from -40°C to 85°C for robustness in various environments.

Negative edge trigger type ensures precise flip-flop operation. The package height is 1.5mm and length is 10mm for PCB layout considerations. Meets UL 94 V-0 flammability standards enhancing safety compliance. Single flip-flop element per chip specialization for counter functions.

This product is ideal for industrial automation, electronic instrumentation, telecommunications, and microprocessor interfacing applications where reliable digital counting is required. It supports PCB assembly with its SOIC package and is suited for environments requiring a wide operating temperature.

Explore additional products from onsemi AC logic counters and ensure your designs meet demanding performance and reliability needs with this high-quality binary ripple counter.
