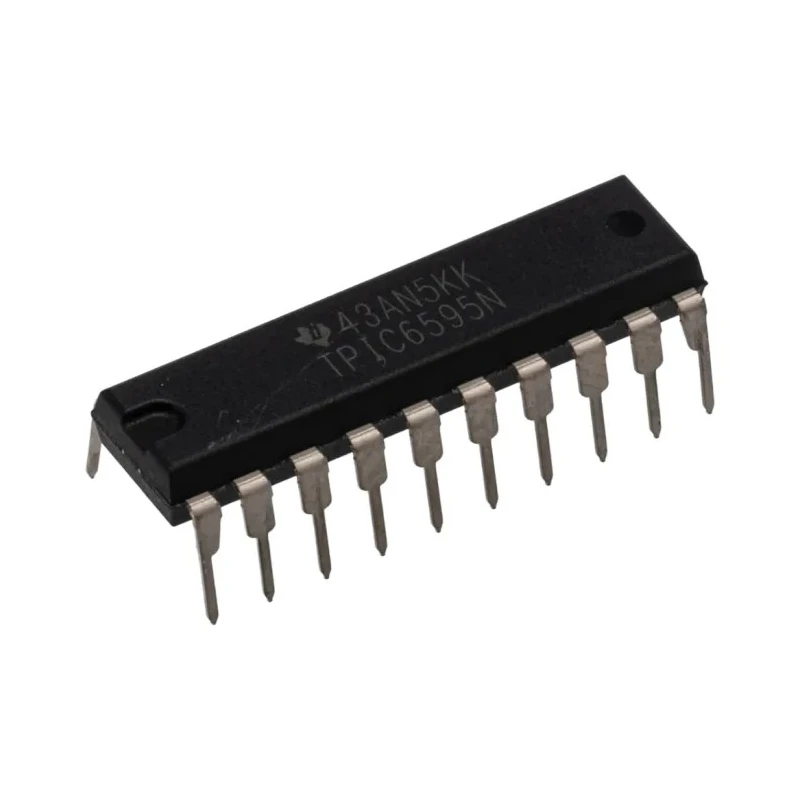

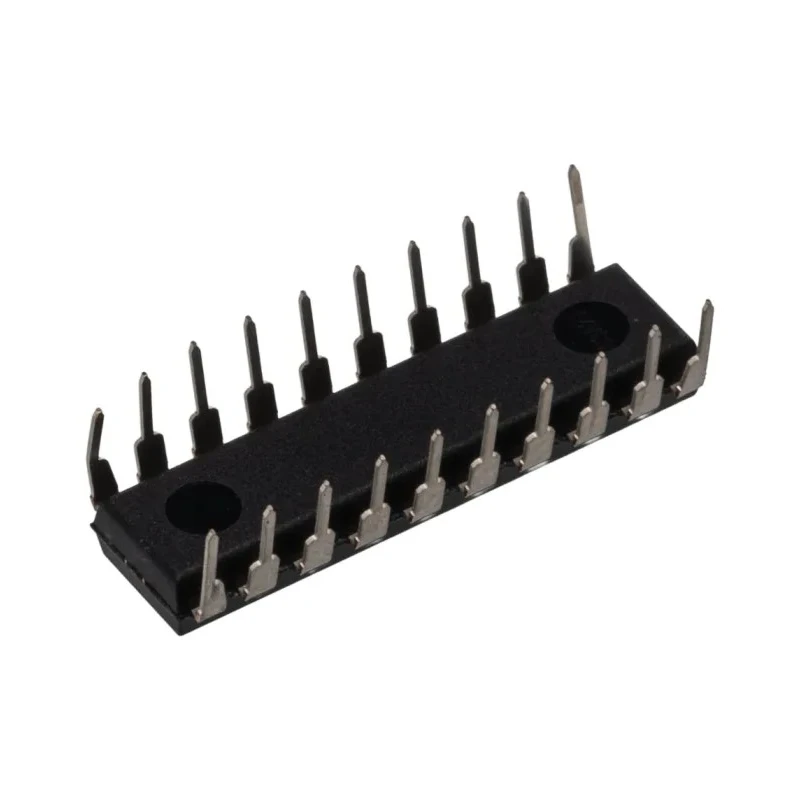

Texas Instruments 8-Stage Through Hole Binary Counter Shift Register DMOS 20 PDIP TPIC6595N

Texas Instruments TPIC6595N is an 8-stage binary counter implemented as a shift register, featuring DMOS logic in a 20-pin PDIP through hole package. This component is designed for precision digital counting in a variety of industrial, electronic, and embedded systems applications. It supports uni-directional counting and operates efficiently within a supply voltage range of 4.5V to 5.5V, making it compatible with typical logic circuits and systems.

The device's physical footprint measures 26.92 mm in length and 4.57 mm in height, enabling easy incorporation into printed circuit boards requiring through hole mounting. Its robust temperature tolerance from -40°C up to 125°C ensures reliable operation under harsh environmental conditions commonly found in industrial and automotive electronics.

This binary counter shift register is part of the TPIC6595 series from Texas Instruments and does not conform to any specific automotive standard but meets general electronic component reliability requirements. It contains a single element with 20 pins facilitating broad connectivity and integration options within electronic control systems, instrumentation, and counting applications.

Ideal for use in industrial automation, measuring instruments, logic control units, and embedded electronics, the TPIC6595N enhances digital counting performance and system efficiency through its DMOS logic function and standardized through hole packaging.

Features an 8-stage binary counter function for precise digital counting. Utilizes DMOS logic family technology for superior power control. Through hole mounting type ensures strong and reliable PCB connection. Supports operating voltages from 4.5V to 5.5V suitable for most logic circuits.

Compact size with length 26.92 mm and height 4.57 mm fits in constrained spaces. Uni-directional counting ensures stable shift register operations. Operational temperature range from -40°C to 125°C supports a wide range of applications.

Standard 20-pin PDIP package simplifies assembly and integration. Widely applicable in industrial, electronic, and embedded system designs. Explore more components in the Counter ICs category at EnvMart for your electronics manufacturing and design needs.
