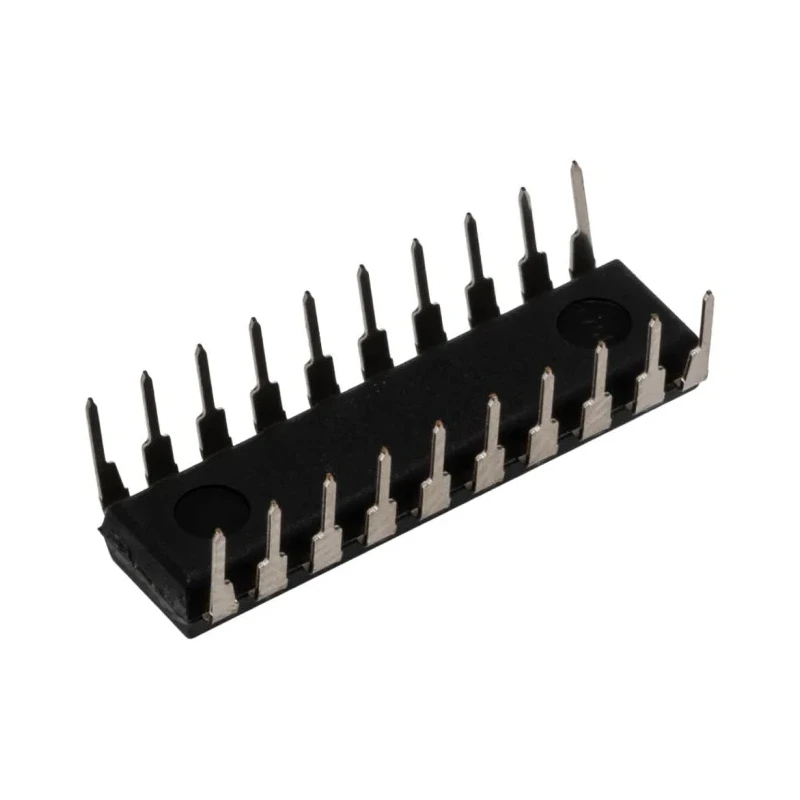

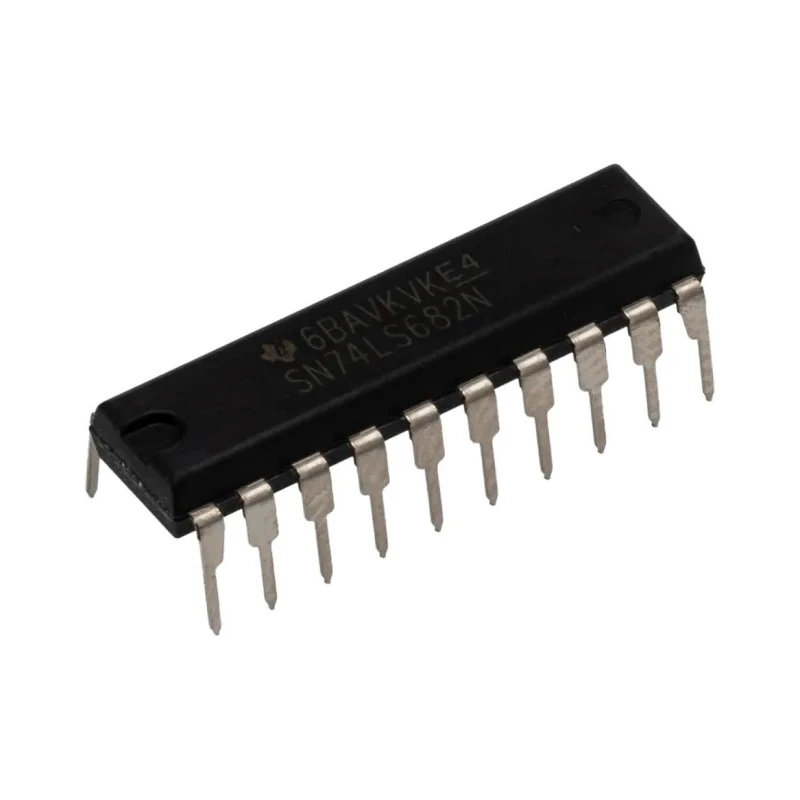

Texas Instruments 8-Bit LS Push Pull Inverting Logic Comparator Integrated Circuit PDIP 20-Pin SN74LS682N
Specifications
| Country of Origin | India |
|---|---|
| Brand | Texas Instruments |
| Height | 4.57mm |
| Length | 24.33mm |
| Model | SN74LS682N |
| Mount Type | Through Hole |
| Output type | Push Pull |
| Series | SN74LS682 |
| Maximum Operating Temperature | 70°C |
| Package Type | PDIP |
| Minimum Operating Temperature | 0°C |
| Polarity | Inverting |
| Pin Count | 20 |
| Maximum Supply Voltage | 5.25V |
| Logic Family | LS |
| Minimum Supply Voltage | 4.85V |
| Maximum High Level Output Current | -0.4mA |
| Maximum Propagation Delay Time @ CL | 30ns |
| Maximum Low Level Output Current | 24mA |
| Number of Bits | 8 |
| Logic Comparator Type | Magnitude Comparator |
Key Features
- Operates with a minimum supply voltage of 4.85V and a maximum of 5.25V.
- Offers a maximum propagation delay of 30ns at the specified load capacitance.
- Features push pull output type with inverting polarity for flexible circuit design.
- Includes through hole mount type and 20-pin PDIP package for easy implementation in various boards.
- Temperature range supports operation from 0°C to 70°C ensuring reliability in standard environments.
- Maximum low level output current of 24mA and maximum high level output current of -0.4mA.
- Compact dimensions with length 24.33mm and height 4.57mm for space-constrained applications.
- Part of the SN74LS682 series using low power Schottky technology for lower power consumption.
Product Description
Texas Instruments SN74LS682N is an 8-bit low-power Schottky (LS) logic comparator integrated circuit, housed in a 20-pin PDIP through-hole package. This device features push pull output and inverting polarity to support fast and efficient digital magnitude comparison operations essential in various electronics applications.
Operating with a minimum supply voltage of 4.85V and up to 5.25V, the SN74LS682N sustains a maximum propagation delay time of 30 nanoseconds at the rated load capacitance. The maximum output currents are -0.4mA for high level and 24mA for low level, ensuring robust signal driving capability in logic applications.
The IC is designed to operate reliably in environments ranging from 0°C to 70°C, making it suitable for many industrial and commercial electronic systems. Its compact dimensions of 24.33mm in length and 4.57mm in height support incorporation into space-limited PCBs.
This product is part of the SN74LS series, renowned for low power consumption using bipolar junction transistor technology with Schottky diode clamps. The device finds wide usage in computing, automation, instrumentation, control systems, and other industrial electronic equipment requiring reliable 8-bit magnitude comparison logic.
Operates on 5V supply with low power consumption. Offers high-speed logic comparison with 30ns propagation delay. Push pull output supports efficient interfacing with other digital circuits. Through hole 20-pin PDIP package for standard PCB mounting.
Industrial temperature grade from 0°C to 70°C for versatile use. Compatible with 74LS family logic systems for broad integration. Compact and lightweight package suitable for dense board layouts. Ideal for digital electronics, embedded systems, and industrial controls.
Manufactured under stringent quality standards ensuring long-term reliability. Set contains 1 Pc Texas Instruments SN74LS682N 8-Bit LS Push Pull Inverting Logic Comparator IC. Explore more semiconductor and logic IC products in EnvMart’s Electronics & Electricals category for high-quality industrial components.
Explore more products in our Logic ICs category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model operates with a minimum supply voltage of 4.85V and a maximum of 5.25V.
The maximum propagation delay time for the SN74LS682N is 30 nanoseconds at the specified load capacitance.
It features a push pull output type with inverting polarity, allowing for flexible circuit design.
This integrated circuit supports operation in a temperature range from 0°C to 70°C.
The device has a length of 24.33mm and a height of 4.57mm, making it suitable for space-constrained applications.
The maximum low level output current for the SN74LS682N is 24mA.
The maximum high level output current for this logic comparator is -0.4mA.
It is housed in a 20-pin PDIP (Plastic Dual In-line Package) for easy implementation on various boards.
This model is part of the LS (Low Power Schottky) logic family.
It is suitable for applications in computing, automation, instrumentation, and control systems requiring 8-bit magnitude comparison.
The SN74LS682N features a pin count of 20.
Yes, it is compatible with 74LS family logic systems for broad integration in electronic designs.
