onsemi Schmitt Trigger Input CMOS Inverter 6 Elements 14-Pin SOIC MM74HC14MX

Free Delivery in India | Lowest Global Shipping Charges

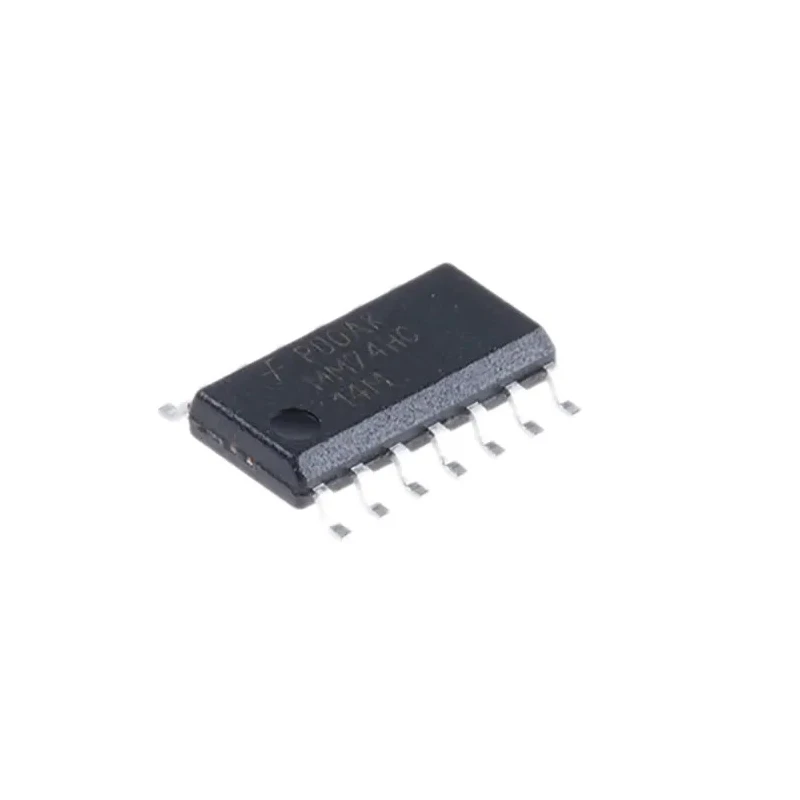

onsemi Schmitt Trigger Input CMOS Inverter 6 Elements 14-Pin SOIC MM74HC14MX

Name: onsemi Schmitt Trigger Input CMOS Inverter 6 Elements 14-Pin SOIC MM74HC14MX
Brand: onsemi
SKU: 416122
Price: 0.37 USD
Availability: InStock



Category Logic ICs Brand onsemi Condition New

Specifications

Country of Origin	India
Brand	onsemi
Height	1.5mm
Length	8.75mm
Model	MM74HC14MX
Width	4mm
Mount Type	Surface
Compatibility	Input CMOS, Output CMOS
Output type	LSTTL
Series	MM74HC14
Input Type	Schmitt Trigger
Maximum Operating Temperature	125°C
Package Type	SOIC
Minimum Operating Temperature	-55°C
Operating Voltage	2 to 6 V
Pin Count	14
Number of Elements per Chip	6
Maximum Supply Voltage	6V
Logic Family	HC
Logic Function	Inverter
Minimum Supply Voltage	2V
Maximum High Level Output Current	-5.2mA
Maximum Propagation Delay Time @ CL	188ns
Maximum Low Level Output Current	5.2mA

Key Features

Operates with a supply voltage range from 2V to 6V ensuring versatile compatibility.
Features Schmitt trigger input for noise immunity and signal conditioning.
Contains 6 inverter elements per chip, optimized for logic applications.
Compact SOIC package with 14 pins, ideal for surface mounting.
Logic family HC ensures high-speed CMOS logic performance.
Operating temperature ranges from -55°C to 125°C for robust industrial use.
Maximum propagation delay time at CL is 188 nanoseconds for fast switching.
Supports compatibility with Input CMOS and Output CMOS logic levels.

Product Description

onsemi MM74HC14MX is a CMOS inverter IC featuring Schmitt trigger inputs designed for reliable signal shaping and digital logic operations. This 6-element logic chip is housed in a 14-pin SOIC surface mount package, offering compactness and ease of integration into modern electronic circuits.

Operating across a voltage range of 2 volts to 6 volts, it supports a broad range of electronic applications including industrial automation systems, consumer electronics, and embedded systems. The Schmitt trigger input feature enhances noise immunity, making it ideal for environments with noisy signal lines.

This device belongs to the HC logic family, known for high-speed CMOS logic with LSTTL output compatibility. It maintains a maximum propagation delay of 188 nanoseconds, enabling swift switching essential for timing-sensitive circuits.

Thermally robust, the MM74HC14MX performs reliably from -55°C up to 125°C, suitable for harsh operational conditions. The physical dimensions of the package (length 8.75mm, width 4mm, height 1.5mm) facilitate use in dense PCB layouts.

Operates with 2V to 6V supply voltage, ensuring wide application support. Schmitt trigger input provides enhanced signal stability and noise rejection. Integrates six independent inverter elements for multi-function logic design.

14-pin SOIC surface mount package for streamlined PCB assembly. Logic family HC compatibility for high-speed CMOS operations. Wide operating temperature range from -55°C to 125°C for durability. Maximum propagation delay time of 188 nanoseconds guarantees quick response.

Supports Input CMOS and Output CMOS logic compatibility for versatile interfacing. Compact physical dimensions optimize PCB space usage.

This onsemi MM74HC14MX inverter IC is ideally suited for professional electronics manufacturing, industrial automation, laboratory instrumentation, and embedded system design. Its robust design and advanced Schmitt trigger inputs make it a dependable choice for noise-sensitive and high-speed digital logic applications.

Explore more advanced semiconductor components and Logic ICs from onsemi and related brands here on EnvMart to enhance your electronic projects and manufacturing solutions.

Looking to purchase in bulk?

Purchase item in bulk quantity
Get best price for your business

Comments (0)

No customer reviews for the moment.

Frequently Asked Questions

This model operates within a supply voltage range of 2V to 6V, allowing for versatile compatibility across various applications.

The maximum propagation delay time at CL for the MM74HC14MX is 188 nanoseconds, enabling fast switching capabilities.

It contains 6 independent inverter elements per chip, which allows for multi-function logic design.

The MM74HC14MX is housed in a 14-pin SOIC surface mount package, which is compact for easy integration into PCB layouts.

This unit can operate in a temperature range from -55°C to 125°C, making it suitable for robust industrial applications.

It supports Input CMOS and Output CMOS logic levels, providing versatility for interfacing with various digital circuits.

The dimensions of this model are 1.5mm in height, 4mm in width, and 8.75mm in length, optimizing PCB space usage.

The maximum high level output current for the MM74HC14MX is -5.2mA, allowing it to drive certain loads effectively.

This model features Schmitt Trigger inputs, which enhance noise immunity and signal conditioning.

It belongs to the HC logic family, known for high-speed CMOS logic performance with LSTTL output compatibility.

The maximum low level output current for the MM74HC14MX is 5.2mA, suitable for various digital applications.

This inverter IC is suitable for applications in industrial automation systems, consumer electronics, and embedded systems due to its robust design and performance characteristics.
