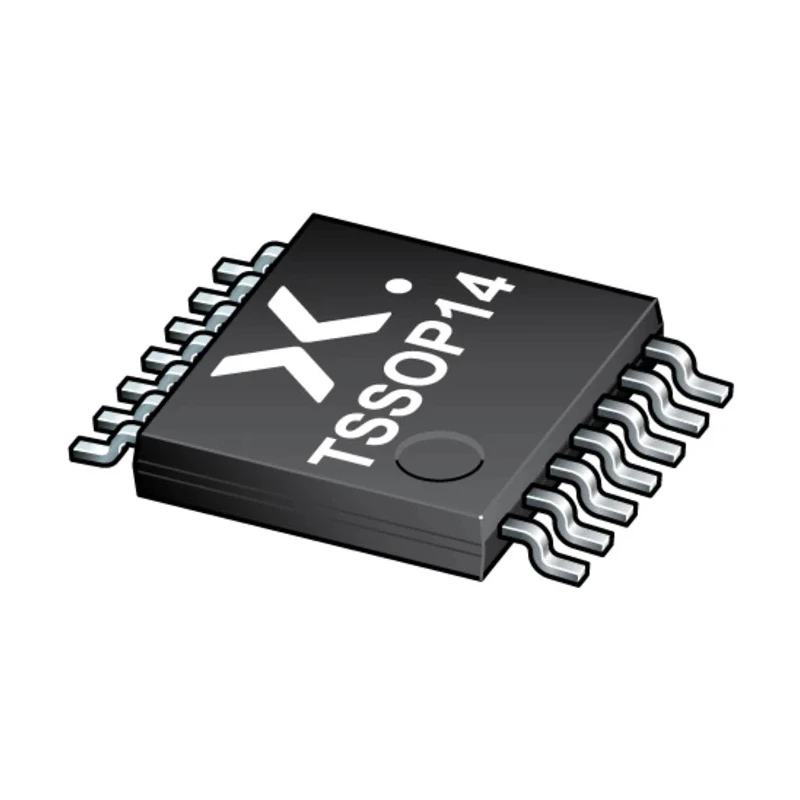

Nexperia Schmitt Trigger Input CMOS 6-Element Inverter 14-Pin TSSOP 74HC14PW,118
Specifications
| Country of Origin | India |
|---|---|
| Brand | Nexperia |
| Height | 950μm |
| Length | 5.1mm |
| Model | 74HC14PW,118 |
| Width | 4.5mm |
| Mount Type | Surface |
| Output type | Single Ended |
| Series | 74HC14 |
| Input Type | Schmitt Trigger |
| Maximum Operating Temperature | 125°C |
| Package Type | TSSOP |
| Minimum Operating Temperature | -40°C |
| Pin Count | 14 |
| Number of Elements per Chip | 6 |
| Maximum Supply Voltage | 6V |
| Logic Family | 74HC |
| Logic Function | Inverter Schmitt Trigger |
| Minimum Supply Voltage | 2V |
| Maximum High Level Output Current | -5.2mA |
| Maximum Propagation Delay Time @ CL | 190ns |
| Maximum Low Level Output Current | 5.2mA |
Key Features
- Offers Schmitt-trigger action to clean and reshape noisy or slow input signals.
- Supports wide supply voltage range from 2V to 6V for versatile use.
- Maximum operating temperature up to 125°C for demanding industrial environments.
- Surface mount TSSOP package with compact dimensions (5.1mm length, 4.5mm width).
- Typical maximum propagation delay time of 190ns enhancing signal performance.
- Capable of handling ±5.2mA output current at high and low logic levels.
- Suitable for interfacing analog and digital circuits and for noise immunity improvements.
- Commonly used in oscillators, signal conversion, and mixed voltage applications.
Product Description
Nexperia 74HC14PW,118 is a high-speed Si-gate CMOS device consisting of six inverting buffers with Schmitt-trigger input action. Packaged in a 14-pin TSSOP surface-mount form factor, this CMOS inverter is pin compatible with Low-power Schottky TTL (LSTTL) logic families, ensuring ease of integration into existing designs.
The device functions by transforming slowly varying input signals into sharply defined, jitter-free output signals, preventing multiple switching issues caused by slow edges and removing noise from the input waveform.
The 74HC14PW,118 supports a supply voltage range between 2V and 6V, making it ideal for mixed 3.3V and 5.0V logic level applications with a maximum operating temperature of 125°C suitable for industrial and commercial environments.
Schmitt-trigger inputs enhance noise immunity and signal integrity. 6 independent inverter gates per chip enable multiple logic operations. Maximum propagation delay time of 190 nanoseconds provides fast signal processing.
Output current capability is ±5.2 mA at high and low levels for driving subsequent stages. Compact 14-Pin TSSOP package enables space-saving surface mounting on PCBs.
Typical applications include conversion of sine waves to square waves, interfacing analog and digital systems, relaxation oscillators, and improving noise margin in mixed signal environments.
This device is suitable for industrial automation, consumer electronics, telecommunications, and other electronic equipment requiring reliable logic inversion with improved input stability.
Explore Nexperia products at EnvMart to discover a broad range of semiconductor components tailored to advanced electronic designs and high-performance applications.
Explore more products in our Logic ICs category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports a supply voltage range from 2V to 6V, making it suitable for various logic level applications.
The maximum operating temperature for the 74HC14PW,118 is 125°C, which is suitable for demanding industrial environments.
This unit consists of six independent inverter gates per chip, allowing for multiple logic operations.
The typical maximum propagation delay time for the 74HC14PW,118 is 190 nanoseconds, enhancing signal performance.
The dimensions of the 14-pin TSSOP package are 5.1mm in length and 4.5mm in width, with a height of 950μm.
It can handle an output current of ±5.2mA at both high and low logic levels.
The 74HC14PW,118 features Schmitt Trigger inputs, which enhance noise immunity and signal integrity.
The minimum operating temperature for the 74HC14PW,118 is -40°C, suitable for various environmental conditions.
This model is packaged in a TSSOP (Thin Shrink Small Outline Package) format, which is suitable for surface mounting.
Common applications include oscillators, signal conversion, and improving noise margins in mixed signal environments.
This device functions as an inverter with Schmitt Trigger action, transforming slow input signals into sharply defined outputs.
Yes, it is pin compatible with Low-power Schottky TTL (LSTTL) logic families, facilitating easy integration into existing designs.
