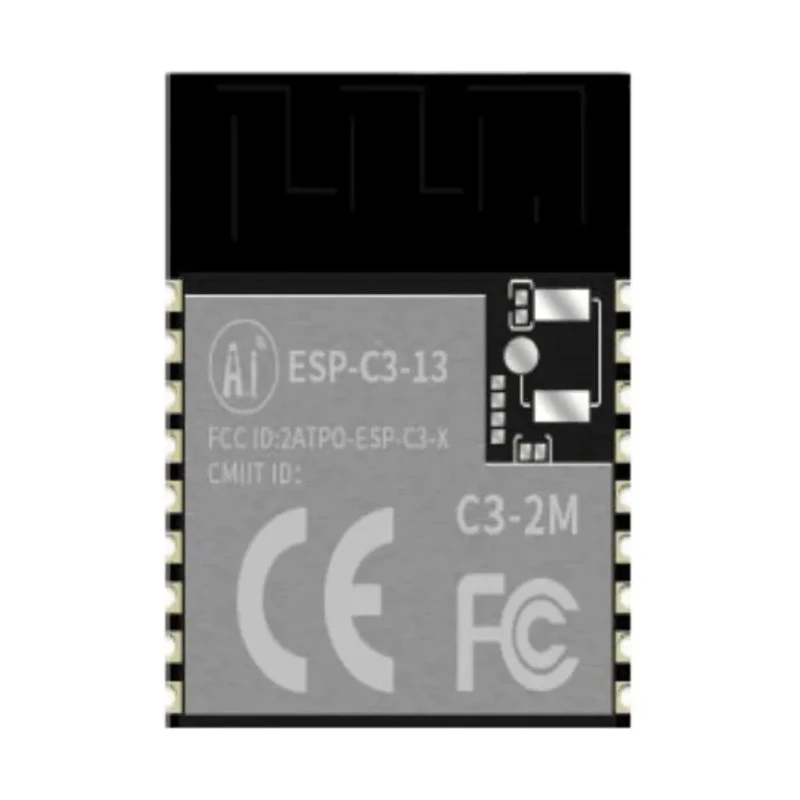

RF Solutions WiFi Module 3V 150Mbps 2.4GHz, ADC GPIO I2C SPI UART Interface ESP32-C3-13

Free Delivery in India | Lowest Global Shipping Charges

RF Solutions WiFi Module 3V 150Mbps 2.4GHz, ADC GPIO I2C SPI UART Interface ESP32-C3-13

Name: RF Solutions WiFi Module 3V 150Mbps 2.4GHz, ADC GPIO I2C SPI UART Interface ESP32-C3-13
Brand: RF Solutions
SKU: 289690
Price: 20.22 USD
Availability: InStock



Category WiFi Modules Brand RF Solutions Condition New

Specifications

Country of Origin	China
Frequency	2.4GHz
Brand	RF Solutions
Height	3mm
Length	20mm
Model	ESP32-C3-13
Width	18mm
Series	ESP-C3-13
Maximum Operating Temperature	85°C
Minimum Operating Temperature	-40°C
Interface Type	ADC, GPIO, I2C, SPI, UART
Minimum Supply Voltage	3V
Supported Security Standards	WEP, AES
Receiving Supply Current	93mA
Transmitting Supply Current	350mA

Key Features

Supports WEP and AES security standards for secure connections.
Operates at 2.4GHz frequency band delivering stable wireless performance.
Features ADC, GPIO, I2C, SPI, and UART interface types for versatile integration.
Compact size with 20mm length, 18mm width, and 3mm height for easy placement.
Low power consumption with 93mA receiving and 350mA transmitting supply currents.
Wide operating temperature range from -40°C to 85°C for diverse environments.
Built around 32-bit RISC-V single-core processor with 160 MHz clock frequency.
Supports BLE 5.0 and Wi-Fi 802.11b/g/n standards with data rates up to 150Mbps.

Product Description

RF Solutions ESP32-C3-13 WiFi Module operates at 3V and supports data rates up to 150Mbps on the 2.4GHz frequency, making it ideal for IoT, wearable electronics, smart home, and mobile device applications.

This module integrates a 32-bit RISC-V single-core processor running up to 160MHz, with 400KB SRAM and 384KB ROM, delivering efficient processing performance. Its compact SMD-18 package measures 20mm in length, 18mm in width, and 3mm in height, suitable for space-constrained applications.

Interfaces include ADC, GPIO, I2C, SPI, and UART, allowing versatile connectivity options. It supports Wi-Fi 802.11b/g/n 1T1R mode and BLE 5.0 with rates of 125Kbps to 2Mbps, enabling robust communication capabilities.

The module includes multiple sleep modes, with deep sleep current consumption less than 5µA, promoting low power operation. Operating temperature ranges from -40°C to 85°C, suitable for harsh environments. The receiving current is 93mA and transmitting current peaks at 350mA.

Security support includes WEP and AES standards to ensure secure wireless communications. Additionally, it supports Smart Config (APP), AirKiss (WeChat), and Smart Config for one-click network configurations on Android and iOS devices.

Firmware upgrades can be performed locally via UART port or remotely with firmware over-the-air (FOTA), supporting flexible device maintenance. General AT command compatibility enables easier device control and integration into custom applications.

This product is manufactured in China and complies with standard industrial quality requirements. It is recommended for industrial, laboratory, manufacturing, and commercial wireless communication projects requiring reliable Wi-Fi and BLE modules.

Supports WEP and AES security standards. 150Mbps data rate at 2.4GHz frequency. Interfaces include ADC, GPIO, I2C, SPI, UART. Operating voltage fixed at 3V with low power consumption. Wide temperature range from -40°C to 85°C.

Compact dimensions: 20mm x 18mm x 3mm (LxWxH). Deep sleep current under 5µA for power-saving. Firmware upgrade support via UART and OTA. Ideal for IoT and smart home applications. Manufactured in China, new condition. Explore more Wi-Fi modules and communication components from EnvMart for your industrial and commercial needs.
