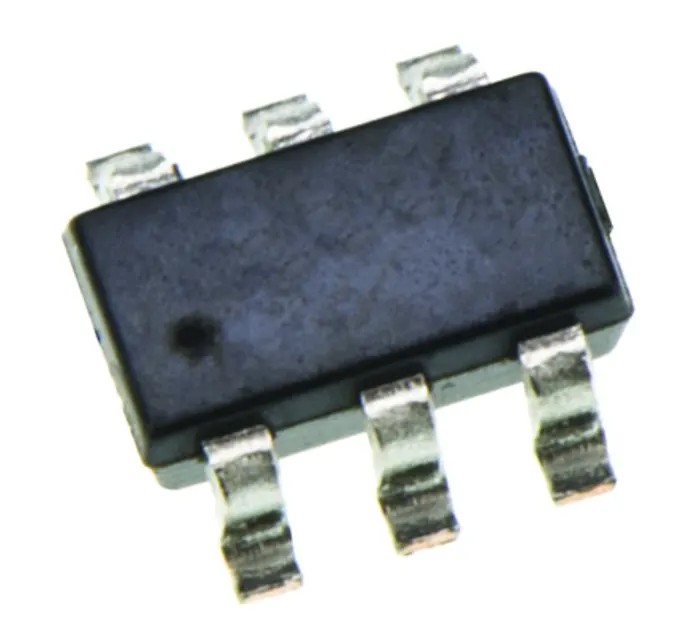

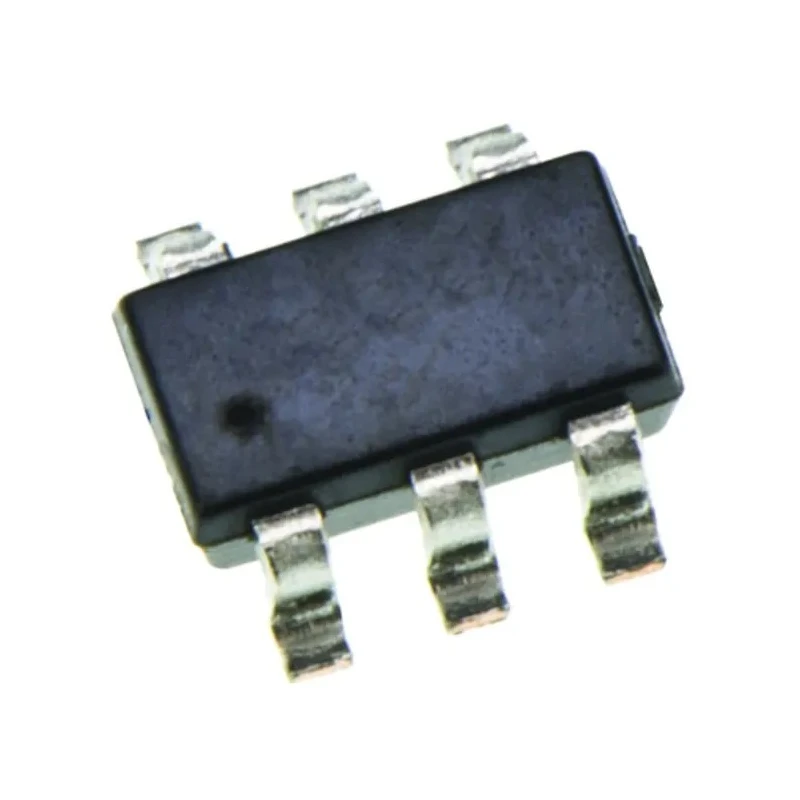

DiodesZetex Low-Voltage CMOS Logic Inverter IC, 1 Gate, Push-Pull Output, 6-Pin SOT-26 Package 74LVC2G04W6-7

DiodesZetex model 74LVC2G04W6-7 is a low-voltage CMOS logic inverter integrated circuit featuring a single inverter gate with push-pull output in a 6-pin SOT-26 surface mount package. Its operating voltage spans from 1.65 V to 5.5 V, making it compatible with a variety of low voltage digital logic systems.

This inverter IC supports input logic levels compliant with LVTTL and TTL standards, with output conforming to LVCMOS logic levels, allowing seamless integration into mixed logic environments. The device offers a maximum propagation delay time of 3.8 ns at a defined capacitive load, ensuring high-speed switching performance essential for digital signal processing and timing circuits.

The 74LVC2G04W6-7 has a robust output drive capability, providing a maximum high-level output current of -4 mA and a maximum low-level output current of 32 mA, suitable for driving various loads directly without additional buffering. The compact package dimensions (3.1 mm length, 1.7 mm width, 1.3 mm height) allow for high-density PCB layouts in compact industrial and consumer electronics devices.

Operational temperature range extends from -40°C to 150°C, making this component suitable for demanding industrial, automotive, and commercial electronics applications. It is designed for surface-mount assembly, facilitating automated PCB manufacturing processes.

Wide operating voltage range from 1.65 V to 5.5 V provides design flexibility. Single inverter gate with push-pull complementary output ensures signal integrity. High-speed switching with a propagation delay of only 3.8 ns.

Input compatible with LVTTL/TTL standards and output compliant with LVCMOS logic. Compact 6-pin SOT-26 surface-mount package for space-saving PCB design. Operation over extended temperature range from -40°C to 150°C for harsh environments.

Output drive current supports various loads without external components. Part of the 74LVC2G04 series to guarantee consistent device characteristics.

This inverter IC is widely applicable in industrial automation, embedded systems, telecommunications, consumer electronics, and other digital logic applications requiring reliable logic inversion and fast switching. Its compact size and robust electrical specifications make it an ideal choice for modern electronic design.
