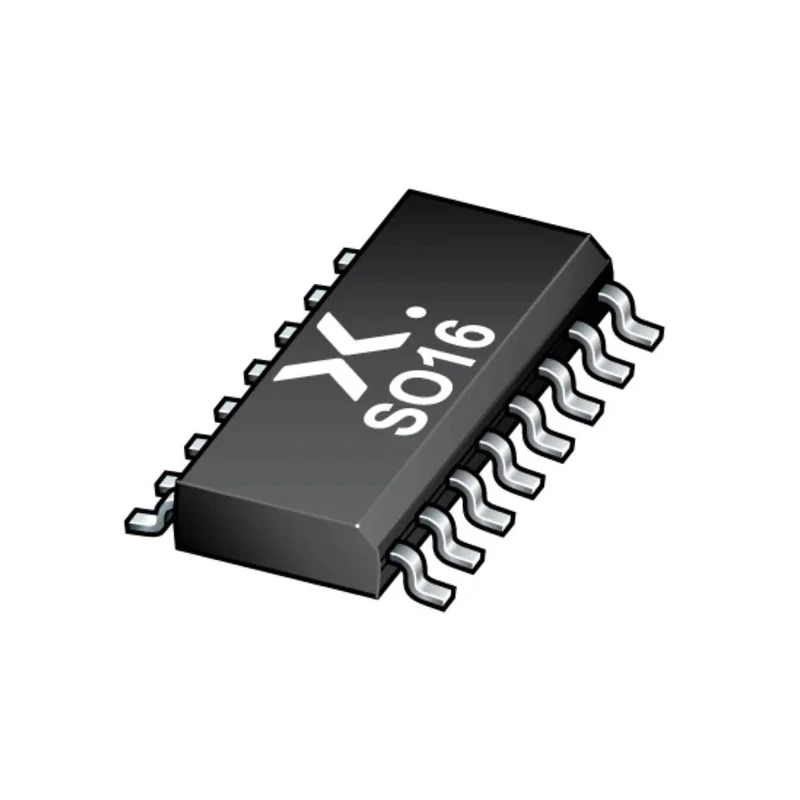

Nexperia 12-Stage Binary Ripple Counter 2V-6V Surface Mount 16-Pin SO 74HC4040D,653

Nexperia 74HC4040D,653 is a 12-stage binary ripple counter designed for digital counting applications, operating within a 2V to 6V supply voltage range. Packaged in a 16-pin surface mount SO form factor, it meets the 74HC logic family standards with TTL compatible inputs and low power CMOS characteristics.

This device incorporates a clock input (CP), an asynchronous master reset (MR), and twelve parallel outputs (Q0 to Q11) facilitating advanced digital counting functions. The counter increments on the HIGH-to-LOW clock transition and supports asynchronous reset which forces all outputs low regardless of the clock state. Each counting stage consists of a static toggle flip-flop, enhancing stability in digital circuits.

Typical industrial use cases encompass clock generation, clock division, frequency counters, and timing controls across automation, electronic equipment manufacturing, and embedded system design. The robust design supports a maximum operating temperature of 125°C, suitable for demanding environments.

The compact dimensions (10mm length × 4mm width × 1.75mm height) and surface mount package optimize space on printed circuit boards while enabling ease of integration into high-density electronic assemblies.

This IC is a 12-stage binary ripple counter with twelve outputs. Operates at supply voltages from 2V minimum to 6V maximum. Features asynchronous master reset for clearing counters instantly. TTL compatible inputs with 74HC logic family standard.

Surface mount SO package with 16 pins for compact applications. Maximum operating temperature of 125°C ensures industrial reliability. Clock input triggers on positive edge transitions. Compact dimensions support versatile integration in electronics.

Applicable in clock generation, timing applications, and digital counters.

This product is ideal for industrial automation, electronic manufacturing, and embedded system applications requiring precise digital counting and timing solutions. Explore more semiconductor counters and electronic components in EnvMart's comprehensive catalog for electronics components and semiconductor devices.
