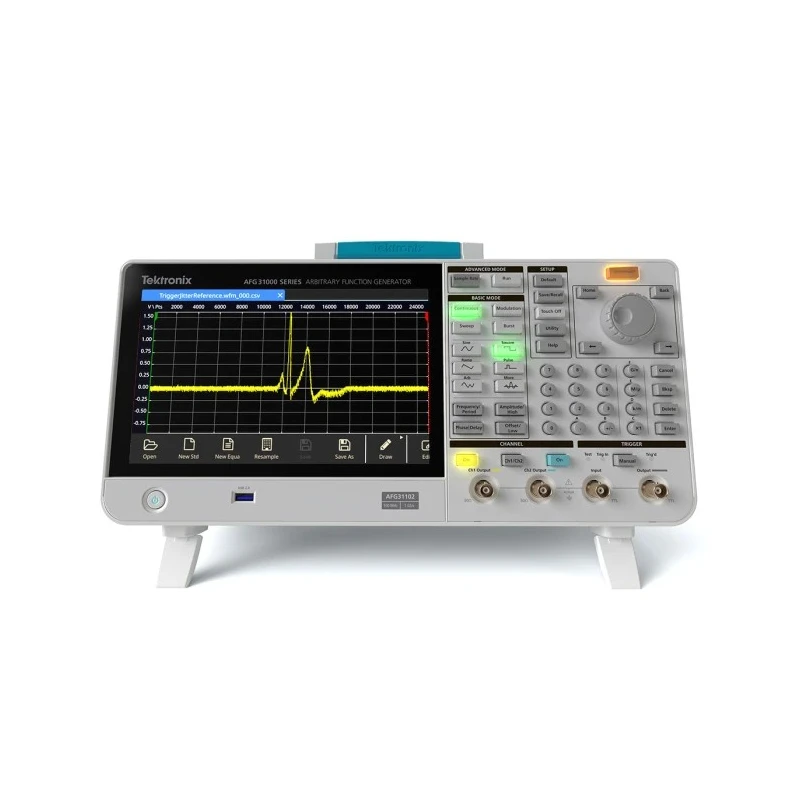

Tektronix Arbitrary Function Generator 150 MHz Maximum, 2-Channel, 1 Hz Minimum Frequency AFG31151

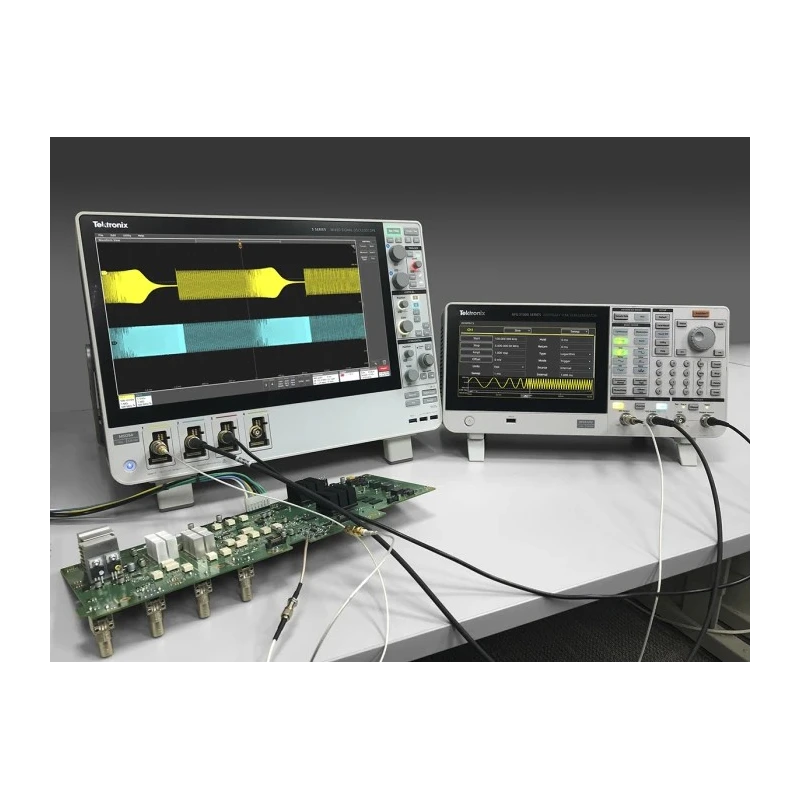

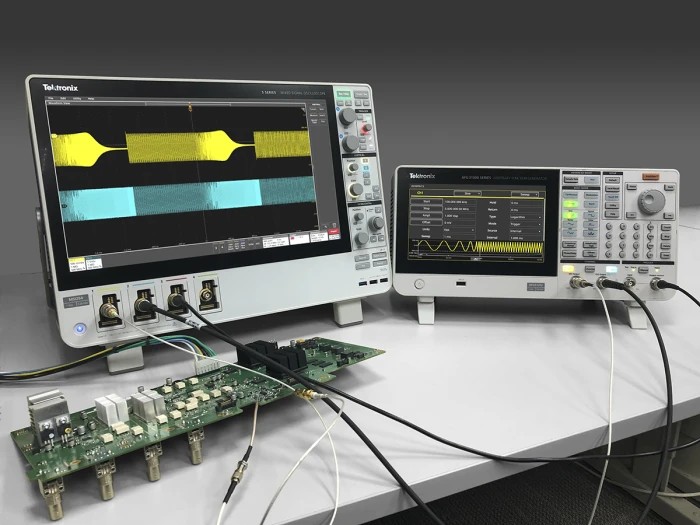

Tektronix AFG31151 Arbitrary Function Generator is a high-performance 2-channel instrument designed for precise and flexible waveform generation up to 150 MHz maximum frequency and minimum frequency of 1 Hz. Its innovative InstaView™ technology enables engineers to monitor the actual output waveform in real time at the Device Under Test (DUT), eliminating impedance mismatches and the need for an oscilloscope.

The 9-inch capacitive touchscreen interface operates like a smart device, supporting gestures such as pinch, zoom, and scroll, allowing quick setting adjustments and easy navigation through simplified menus. The generator supports a wide output amplitude range from 1 mVpp to 10 Vpp into 50Ω loads, accommodating a broad range of testing requirements.

Featuring a 14-bit vertical resolution, this instrument produces waveforms including sine, square, ramp, pulse, noise, and other standard shapes with low distortion and high accuracy. Its sample rates vary among models with options for 250 MSa/s, 1 GSa/s, or 2 GSa/s, delivering detailed waveform fidelity.

Advanced features include built-in double pulse test software for evaluating power electronics, and the sequencing option supports up to 256 complex waveform steps with loop, jump, and wait capabilities. The ArbBuilder functionality facilitates creation and editing of arbitrary waveforms directly on the device, removing the need for PC software connectivity.

This equipment is robustly constructed to operate within a temperature range of 0°C to 50°C and complies with RoHS standards. Its outputs are safeguarded against overvoltage and current to minimize potential damage, enhancing reliability in laboratory, industrial, and manufacturing testing scenarios.

Equipped with a 9-inch capacitive touchscreen supporting intuitive gesture controls. Patented InstaView™ technology provides real-time waveform monitoring at the DUT. Flexible amplitude output from 1 mVpp to 10 Vpp into 50Ω loads.

Built-in double pulse test software for specialized power electronics testing. 256-step sequencing enables complex waveform programming with looping and conditional control. Onboard ArbBuilder tool for arbitrary waveform creation and editing.

Robust operation from 0°C to 50°C suitable for industrial environments. Complies with RoHS standards ensuring environmentally responsible manufacture. Protection circuitry guards against output overvoltage and overcurrent conditions.

This Tektronix waveform generator is ideal for applications across industrial testing, laboratory research, manufacturing development, and educational use cases. It supports a broad array of standard and custom waveform generation needs within RF and signal processing domains. Explore more Tektronix Test & Measurement Instruments on EnvMart to find suitable solutions for your engineering projects and testing requirements.
