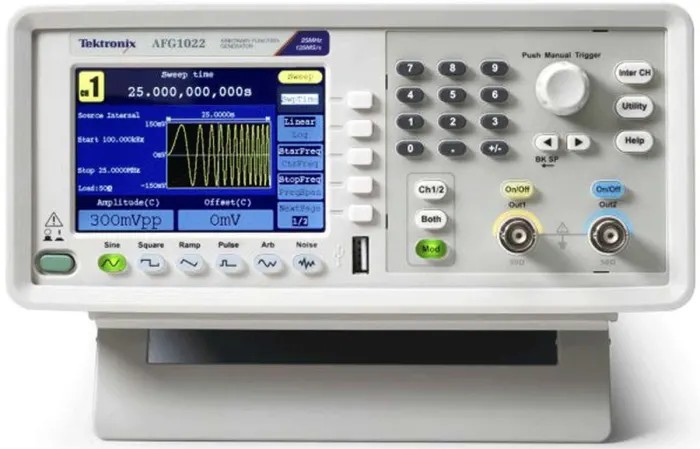

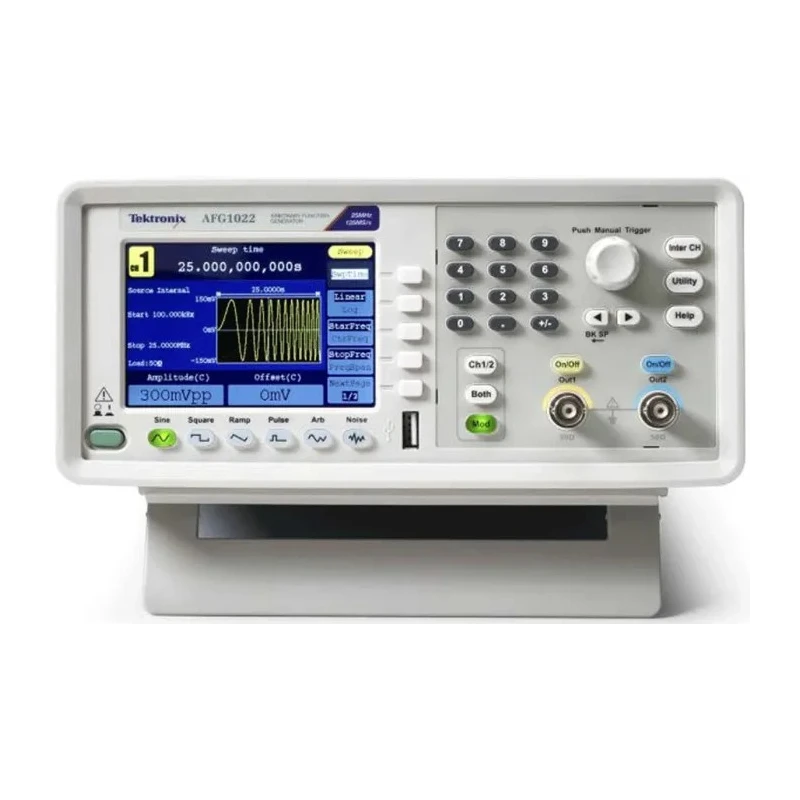

Tektronix Arbitrary Waveform Generator 25 MHz Max, 2-Channel, 1 μHz Min AFG1022

Tektronix AFG1022 arbitrary waveform generator combines high performance with user-friendly design, delivering a maximum frequency of 25 MHz on two independent channels and minimum frequency resolution down to 1 μHz. Its 125 MS/s sampling rate coupled with 14-bit vertical resolution provides excellent signal fidelity essential for precise test and measurement applications.

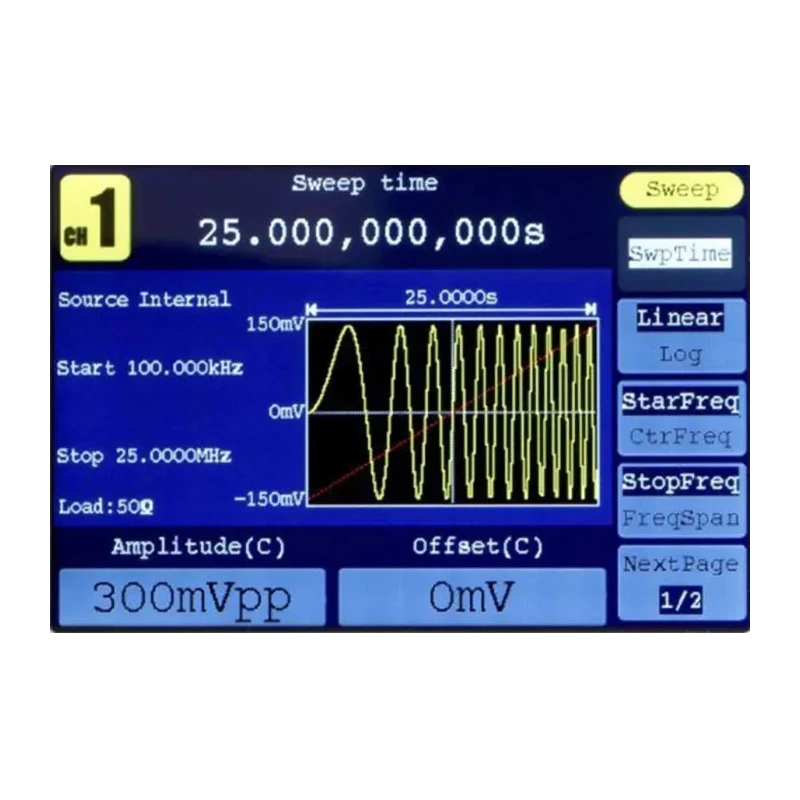

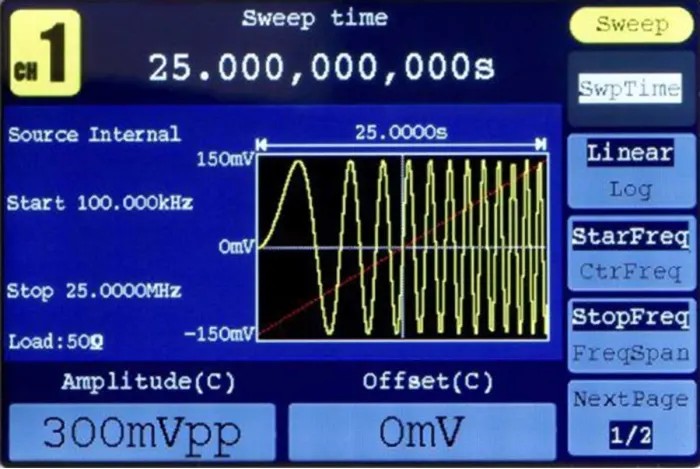

The instrument features a comprehensive set of 50 built-in standard and arbitrary waveforms and supports continuous, sweeping, burst, and modulation operation modes to meet diverse testing needs. The 3.95-inch TFT LCD color display together with shortcut buttons and a rotary knob allows easy, intuitive control and quick setup adjustments.

Designed for compact bench use, the dual channel form factor saves valuable space while enabling complex signal generation. It includes a built-in 200 MHz counter with six-digit resolution for frequency and period measurements. Connectivity is facilitated via BNC connectors and USB interface for remote control and memory expansion.

Operating reliably in temperatures from 0°C to 40°C, this generator handles pulse widths from 40 nanoseconds up to 999000 seconds, enabling detailed signal shaping and modulation. Applications span automotive battery testing, embedded system design, power semiconductor testing, manufacturing troubleshooting, and educational labs.

Constructed to international standards including ISO 9001, CE, and ISO 14001, the AFG1022 comes with a 5-year warranty, demonstrating Tektronix’s commitment to quality and support. Free ArbExpress software provides powerful waveform editing tools, further enhancing the device’s versatility.

Provides 125 MS/s sampling rate and 14-bit vertical resolution for high signal fidelity. Output amplitude ranges from 1 mVp-p to 10 Vp-p across the frequency range. Includes 50 built-in standard function and arbitrary waveforms with modulation, sweep, burst, and continuous modes.

Features a 3.95-inch TFT LCD display with intuitive interface and keypad data entry. Compact dual-channel design saves bench space and supports USB host/device for memory expansion and remote control. Built-in 200 MHz counter with 6-digit resolution improves measurement precision.

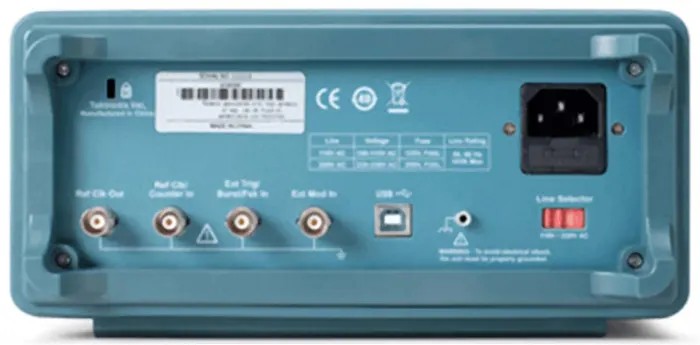

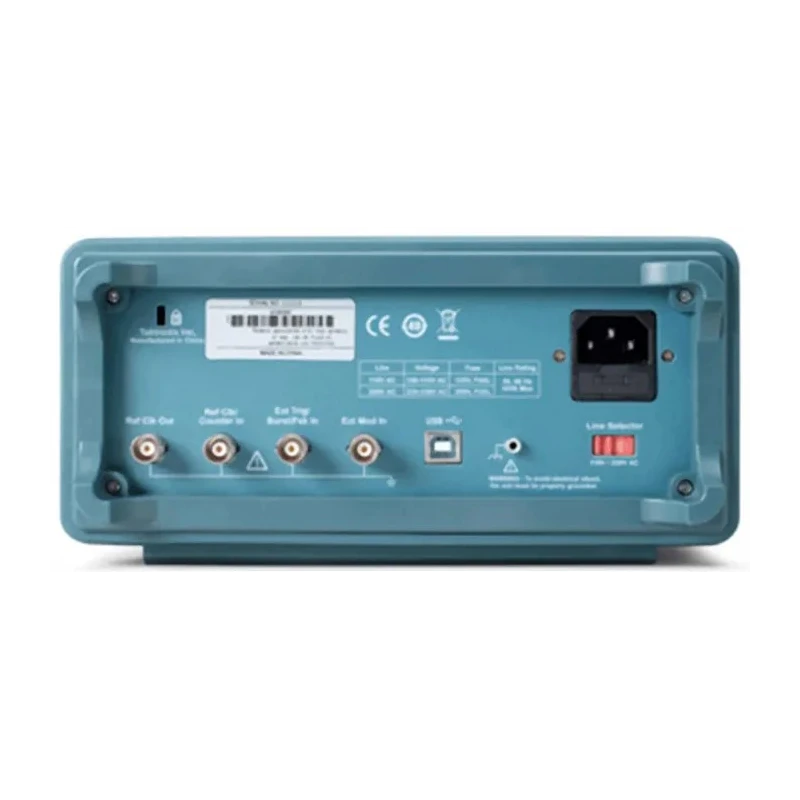

Equipped with BNC connectors and supports inputs such as Reference In, Trigger In, and Modulation In. Operates reliably between 0°C and 40°C with pulse widths from 40 ns to 999000 s. Ideal for automotive testing, embedded design, power semiconductor testing, manufacturing troubleshooting, and education.

Comes with a 5-year warranty and free ArbExpress software for waveform editing.
