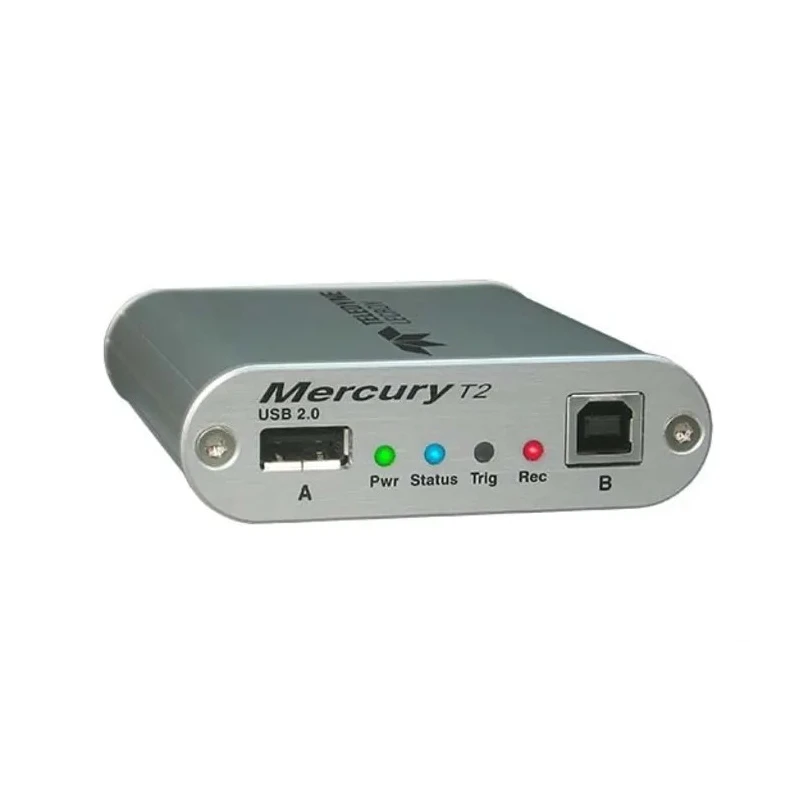

Teledyne LeCroy USB Protocol Analyser USB 2.0, 512MB Memory, Dimensions 24x80x90mm USB-TMA2-M01-X

Free Delivery in India | Lowest Global Shipping Charges

Teledyne LeCroy USB Protocol Analyser USB 2.0, 512MB Memory, Dimensions 24x80x90mm USB-TMA2-M01-X

Name: Teledyne LeCroy USB Protocol Analyser USB 2.0, 512MB Memory, Dimensions 24x80x90mm USB-TMA2-M01-X
Brand: Teledyne LeCroy
SKU: 211024
Price: 3256.95 USD
Availability: InStock



Category Test & Measurement Instruments Brand Teledyne LeCroy Condition New

Specifications

Country of Origin	United States
Brand	Teledyne LeCroy
Height	90mm
Length	24mm
Model	USB-TMA2-M01-X
Width	80mm
Maximum Operating Temperature	55°C
Minimum Operating Temperature	0°C
Interfaces	USB 2
Connectors	USB 2.0
Memory size	512MB
Supported Protocols	USB 2.0
Standard Trigger Events	Data Length, PD Messages, Frame Pattern, Type C logical states, Splits, Errors, Transactions, Device Request, Token Pattern, Bus Conditions, Data Pattern, Packet Identifier

Key Features

The device supports USB 2.0 protocol with comprehensive decoding capabilities.
Features advanced trigger events including data length, PD messages, and error tracking.
Compact design with dimensions 24mm x 80mm x 90mm enables portability.
Operates in temperature ranges from 0°C to 55°C for versatile environments.
Ideal for software development and hardware diagnostics in USB communication.
Includes high impedance probe to preserve signal integrity during testing.
Offers real-time triggering and spool-to-disk capture for extended recording sessions.
Supports multiple USB class decodes such as mass storage, HID, audio, and video protocols.

Product Description

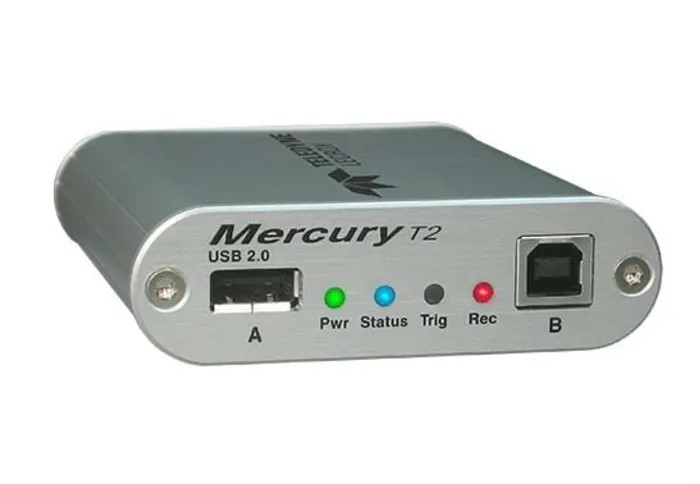

Teledyne LeCroy USB-TMA2-M01-X Protocol Analyser USB 2.0 is a high-performance hardware-based USB protocol analyser designed for advanced USB 2.0 development and troubleshooting.

This compact analyser features a 512MB onboard memory and supports the industry-leading CATC Trace™ expert analysis software, allowing users to graphically decode logical protocol events and investigate underlying transactions and packets.

The device operates within a temperature range of 0°C to 55°C and measures 24mm in length, 80mm in width, and 90mm in height, fitting easily into portable test setups.

It supports sophisticated real-time triggering options including PID types, data patterns, errors, and bus events to isolate important traffic or intermittent protocol issues. The high impedance probe ensures non-intrusive measurements preserving the real-world signal and timing conditions.

Supports USB 2.0 protocol at all speeds including OTG. Features 256MB recording memory with spool-to-disk capabilities for extended data capture. Advanced triggering and hardware filtering optimize analysis by excluding nonessential traffic.

Comprehensive protocol decodes include mass storage, Bluetooth HCI, human interface device (HID), audio, and video. Facilitates software development and debugging for USB device manufacturers and engineers. This analyser is made in the United States and is ideal for industrial, laboratory, and electronic manufacturing environments requiring precise USB 2.0 traffic analysis.
