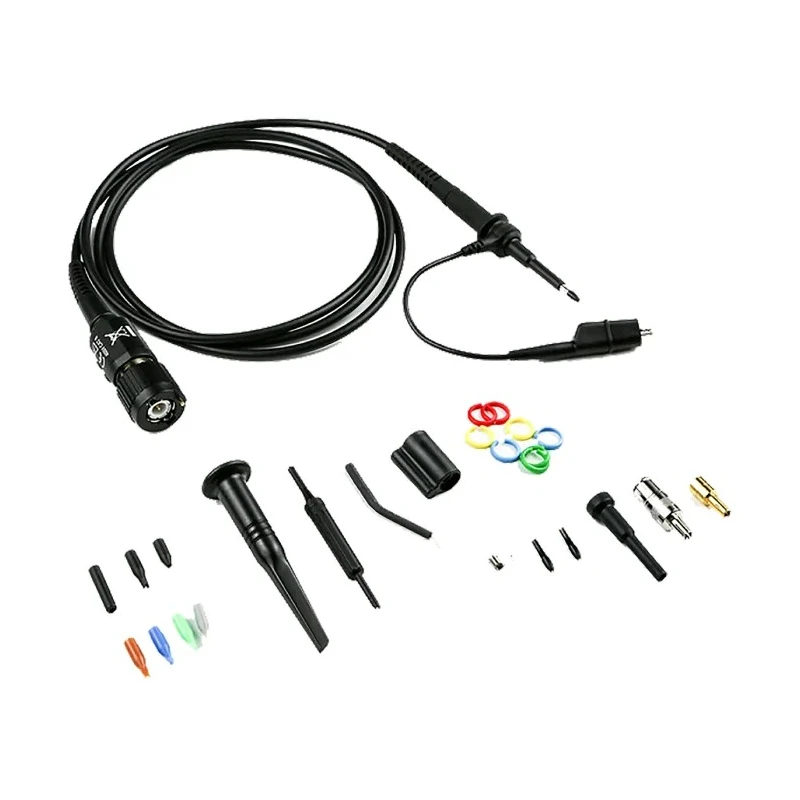

Teledyne LeCroy PP022 Passive Oscilloscope Probe Voltage Type 500 MHz Bandwidth 10:1 Attenuation BNC Connector PP022
Specifications
| Country of Origin | Germany |
|---|---|
| Brand | Teledyne LeCroy |
| Model | PP022 |
| Connector Type | BNC |
| Bandwidth | 500MHz |
| Probe type | Voltage |
| Rise Time | 700ps |
| Attenuation | 10:1 |
| Number of Probes | 1 |
| 10 | 1 |
| Standards/Approvals | CE, RoHS, EN 61010031/A1:2008 |
| Safety Category Level | CAT II, CAT I |
| Maximum Common Mode Input Voltage | 500V |
| Attenuation10 | 1 |
| BrandTeledyne LeCroyProduct TypeOscilloscope ProbeProbe TypeVoltageAttenuation10 | 1Bandwidth500MHzMaximum Common Mode Input Voltage500VConnector TypeBNCModel NumberPP022Number of Probes1Safety Category LevelCAT II, CAT ISafety Category Voltage400VrmsRise Time700psStandards/ApprovalsCE, RoHS, EN 61010031/A1:2008Country of OriginGer |
| Standards/ApprovalsCE, RoHS, EN 61010031/A1 | 2008 |
Key Features
- Passive probe design minimizes circuit loading for low frequency signals.
- Provides 10 MΩ input resistance and 10 pF input capacitance.
- Suitable for signals up to 500 V maximum common mode input voltage.
- Includes multiple accessories such as alligator clip, spring tip, and color coding rings.
- Features an attenuation sense pin to automatically scale waveforms on compatible oscilloscopes.
- Complies with safety standards CAT II and CAT I with 400 Vrms voltage rating.
- Rise time is 700 ps enabling precise transient measurements.
- Manufactured in Germany to international quality standards including CE and RoHS.
Product Description
Teledyne LeCroy PP022 passive oscilloscope probe is a voltage type probe with 500 MHz bandwidth, 10:1 attenuation ratio, and BNC connector, optimized for accurate electronic signal measurements. This probe features a high input resistance of 10 MΩ and low capacitance of 10 pF, making it ideal for minimizing circuit loading effects during low frequency testing.
The probe supports a maximum common mode input voltage of up to 500 V, allowing it to safely measure moderately high voltage signals. With a rise time of 700 ps, the PP022 delivers high-speed signal capture capabilities necessary for transient and high-frequency circuit analysis.
Designed as a passive probe, it includes a comprehensive set of accessories such as a ground lead with alligator clip, multiple rigid and spring hook tips, trimmer tool, color coding rings, and PCB adapters to facilitate versatile connection options in various industrial, laboratory, and electronic testing environments.
This oscilloscope probe complies with CAT II and CAT I safety categories and adheres to international standards including CE, RoHS, and EN 61010-031/A1:2008, ensuring reliability and operator safety. The attenuation sense pin feature enables automatic waveform scaling on compatible Teledyne LeCroy oscilloscopes, enhancing ease of use and accuracy.
Manufactured in Germany, this probe is suitable for applications in industrial electronics testing, laboratory measurements, electrical engineering diagnostics, and educational environments requiring precise voltage probing capabilities.
Passive probe design minimizes circuit loading for low frequency signals. Provides 10 MΩ input resistance and 10 pF input capacitance. Suitable for signals up to 500 V maximum common mode input voltage. Includes multiple accessories such as alligator clip, spring tip, and color coding rings.
Features an attenuation sense pin to automatically scale waveforms on compatible oscilloscopes. Complies with safety standards CAT II and CAT I with 400 Vrms voltage rating. Rise time is 700 ps enabling precise transient measurements.
Manufactured in Germany to international quality standards including CE and RoHS. Explore EnvMart’s collection of precision Oscilloscope Probes and accessories for comprehensive electronic test solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The bandwidth of this oscilloscope probe is 500 MHz, allowing it to accurately capture high-frequency signals.
The probe features a 10:1 attenuation ratio, which is beneficial for measuring high voltage signals while minimizing circuit loading.
This oscilloscope probe uses a BNC connector, which is standard for many electronic testing applications.
The maximum common mode input voltage for this probe is 500 V, making it suitable for measuring moderately high voltage signals.
The rise time of this model is 700 ps, enabling it to capture fast transient signals accurately.
Included accessories are a ground lead with alligator clip, multiple rigid and spring hook tips, a trimmer tool, color coding rings, and PCB adapters.
This probe complies with CAT II and CAT I safety standards and adheres to CE, RoHS, and EN 61010-031/A1:2008 international standards.
The input resistance is 10 MΩ and the input capacitance is 10 pF, which helps minimize circuit loading during measurements.
The Teledyne LeCroy PP022 is manufactured in Germany, adhering to international quality standards.
This model is suitable for applications in industrial electronics testing, laboratory measurements, electrical engineering diagnostics, and educational environments.
The attenuation sense pin automatically scales waveforms on compatible oscilloscopes, enhancing measurement accuracy and ease of use.
The package includes one probe, which is designed for various electronic testing needs.
