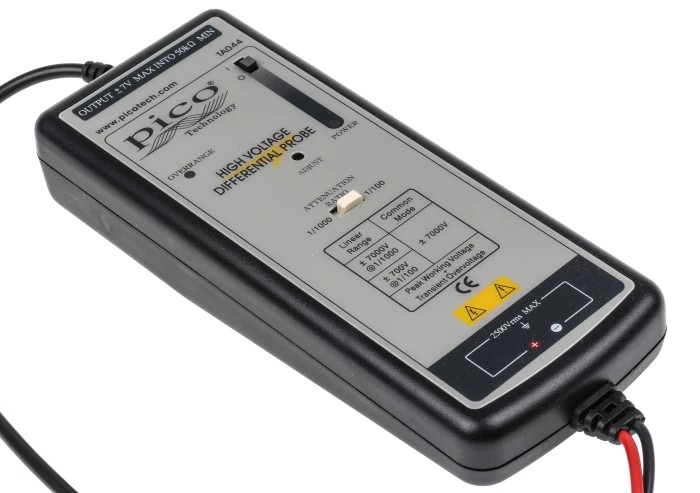

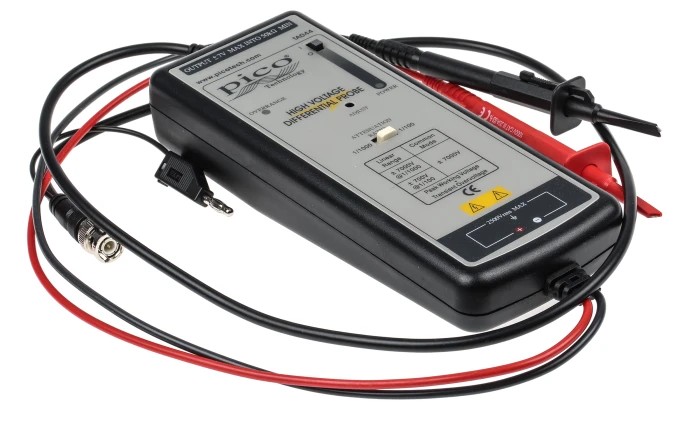

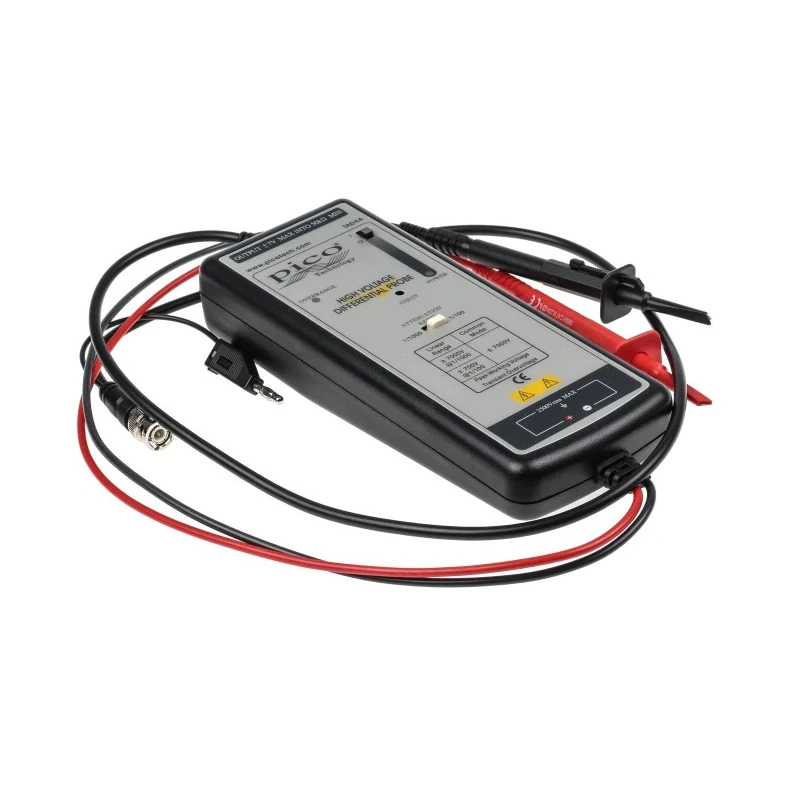

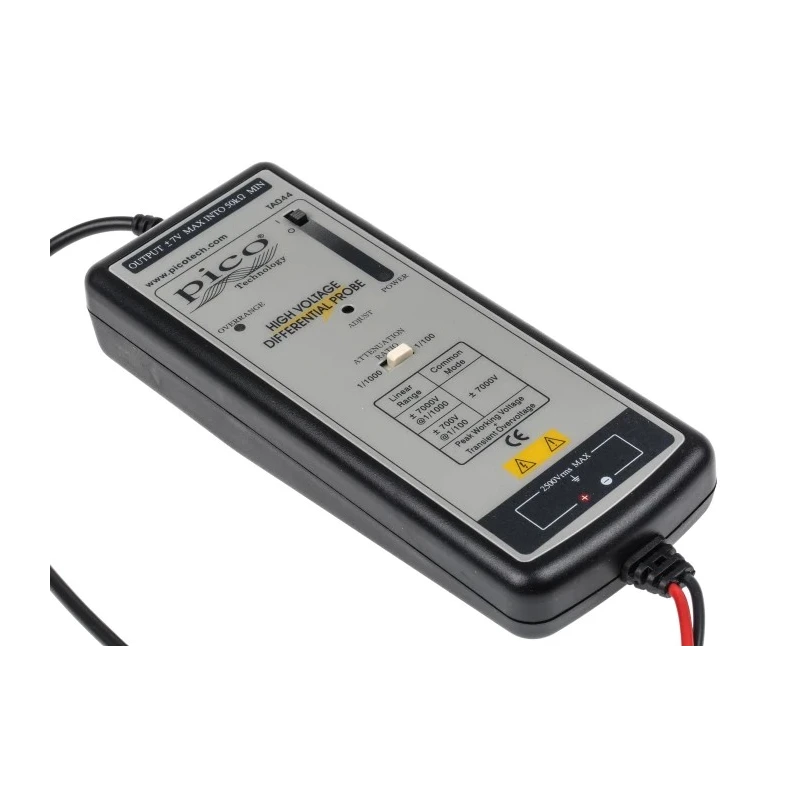

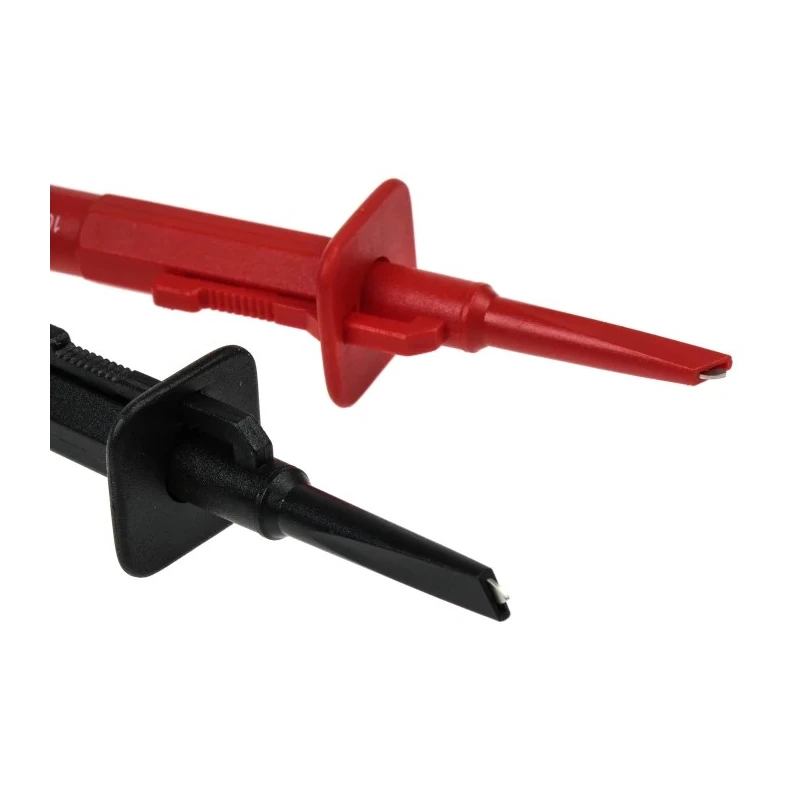

Testec TA Series Differential Oscilloscope Probe, 70 MHz Bandwidth, 1:100 & 1:1000 Attenuation, BNC Connector TA044
Specifications
| Country of Origin | Taiwan |
|---|---|
| Brand | Testec |
| Dimensions | 202 x 83 x 38 mm |
| Model | TA044 |
| Connector Type | BNC |
| Bandwidth | 70MHz |
| Series | TA |
| Probe type | Differential |
| Rise Time | 5ns |
| Attenuation | 1:100, 1:1000 |
| Number of Probes | 2 |
| Standards/Approvals | IEC 1010-2-031 |
| Safety Category Level | CAT I |
| Safety Category Voltage | 2.5kV |
| Maximum Common Mode Input Voltage | 5kV |
| Attenuation 1 | 100, 1:1000 |
| By selecting attenuation ratio 1 | 100, this oscilloscope probe can measure signals below 70V to get higher resolution and less noise. Otherwise, set the attenuation to 1:1000 |
| Differential range is (100 | 1) ±700V (DC + peak AC) or 700VRMS |
| Common mode range is ±7000V (DC + peak AC) or 2500VRMS (100 | 1 & 1000:1) |
| Attenuation ratio is 100 | 1/1000:1 |
| Maximum differential is (1000 | 1) ±7000V (DC + peak AC) or 5000VRMS |
| 5000VRMS (100 | 1 & 1000:1) |
| Pico Technology TA Series TA044 Oscilloscope Probe, Differential Type, 70 MHz, 1 | 100, 1:1000, BNC Connector |
Key Features
- Supports high common mode voltages up to ±7000 V and differential measurement capabilities.
- 10 MΩ input impedance per side with 10 pF capacitance ensures low circuit loading.
- Complies with IEC 1010-2-031 standard and CAT I 2.5 kV safety category voltage rating.
- Fast 5 ns rise time captures transient and high-speed signals accurately.
- Includes two probes with BNC connectors for versatile industrial and laboratory use.
- Compact dimensions of 202 x 83 x 38 mm for convenient handling and testing.
- Accuracy rating of ±2% enhances reliable and precise voltage measurements.
Product Description
Pico Technology TA044 is a differential Oscilloscope Probe engineered for professional measurement tasks requiring high common mode voltage tolerance and precision signal observation. Its 70 MHz bandwidth and selectable attenuation (1:100 and 1:1000) enable flexible measurement of high and low voltage signals with excellent noise performance and accuracy of ±2%.
The probe supports differential voltage ranges up to ±700 V (100:1 attenuation) or ±7000 V (1000:1 attenuation) with a maximum common mode voltage rating of ±7000 V, making it suitable for high voltage industrial or laboratory measurements where safety and accuracy are critical.

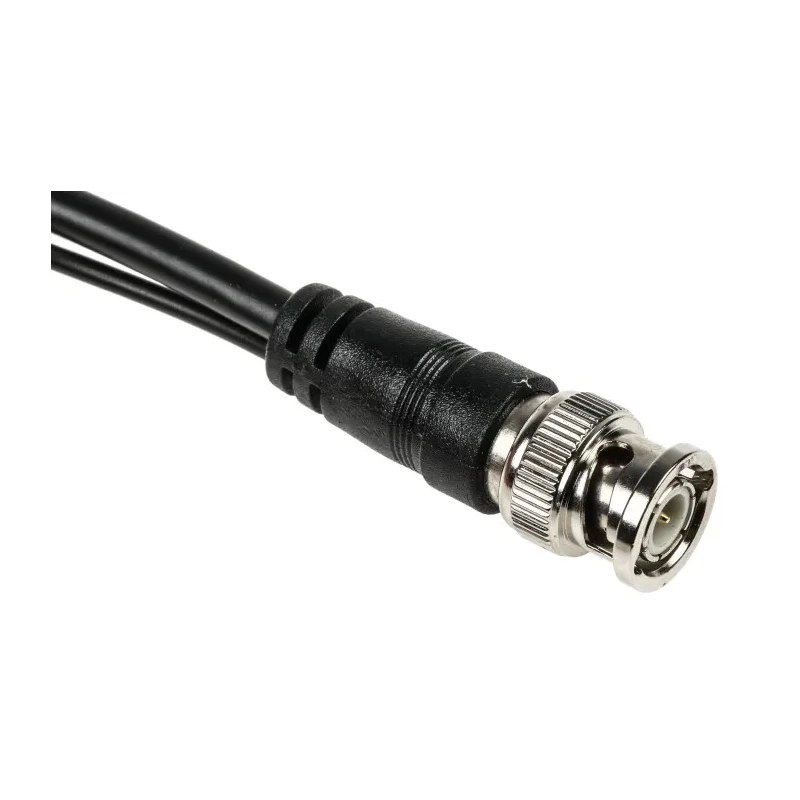

Equipped with a high input impedance of 10 MΩ parallel to 10 pF per side to ground, the TA044 maintains low loading on circuits under test. Its fast 5 ns rise time ensures that transient and high-speed signals are faithfully captured. The BNC connector type ensures wide compatibility with oscilloscopes in test setups.
The probe complies with IEC 1010-2-031 safety standards, rated CAT I for 2.5 kV safety category voltage. The compact design with dimensions of 202 x 83 x 38 mm allows convenient handling during testing and integration in diverse industrial, commercial, and laboratory applications.
This dual-attenuation differential probe accommodates a wide range of testing needs from low voltage signal resolution to high voltage isolation. Its precise and reliable measurements are applicable for electrical test and measurement, industrial troubleshooting, lab experiments, and quality control.

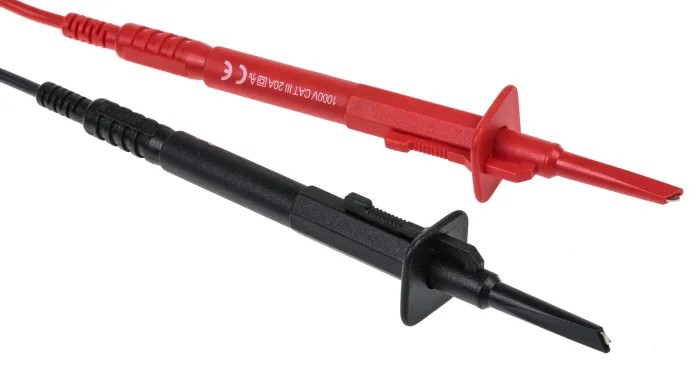

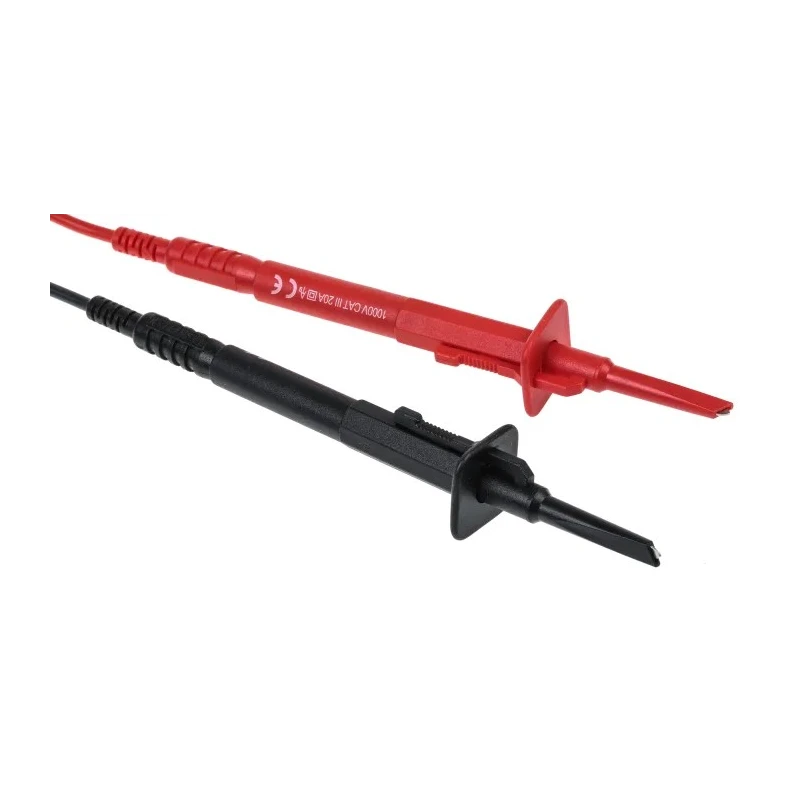

Set includes two probes for simultaneous differential measurements or multiple channel setups.
Pico Technology TA044 oscilloscopes probe is a sophisticated test accessory advancing the capabilities of standard single-ended oscilloscope inputs by allowing safe differential voltage testing up to 7 kV. Explore EnvMart for other Pico Technology test & measurement instruments.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The bandwidth of the Testec TA044 oscilloscope probe is 70 MHz.
This model supports two attenuation settings: 1:100 and 1:1000.
The maximum common mode voltage for the TA044 probe is ±7000 V.
The input impedance of the TA044 is 10 MΩ per side with a capacitance of 10 pF.
The rise time of the Testec TA044 differential probe is 5 ns.
The dimensions of the TA044 are 202 x 83 x 38 mm.
This model complies with the IEC 1010-2-031 safety standards and has a CAT I safety category voltage rating of 2.5 kV.
The TA044 includes two probes for simultaneous differential measurements or multiple channel setups.
The maximum differential voltage range for the TA044 is ±700 V at 1:100 attenuation and ±7000 V at 1:1000 attenuation.
The TA044 is suitable for electrical test and measurement, industrial troubleshooting, lab experiments, and quality control.
The Testec TA044 uses a BNC connector type, ensuring wide compatibility with oscilloscopes.
For differential measurements, the maximum voltage rating is ±700 V for 1:100 attenuation and ±7000 V for 1:1000 attenuation.
