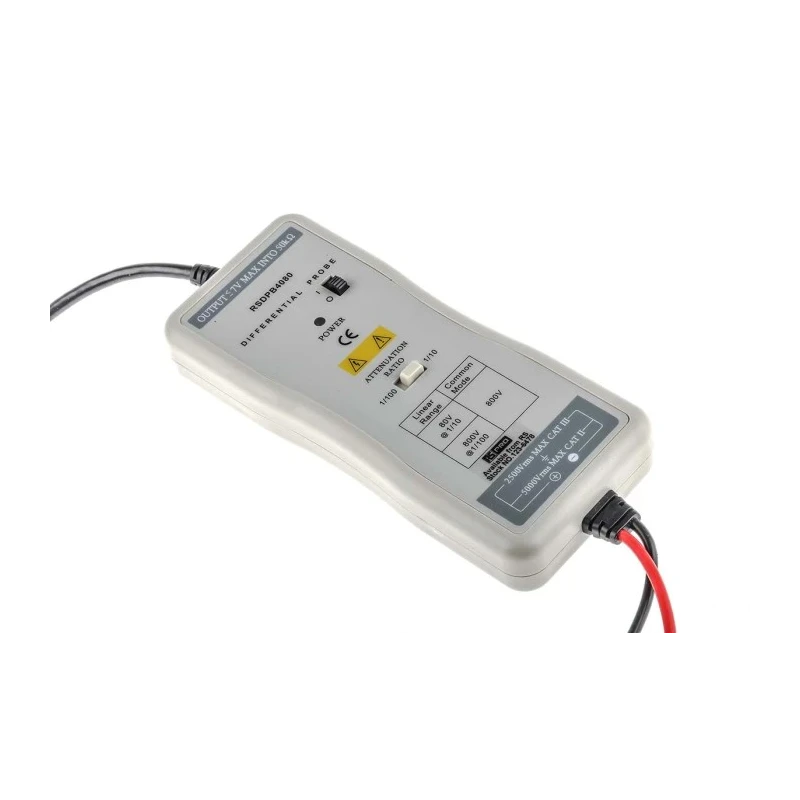

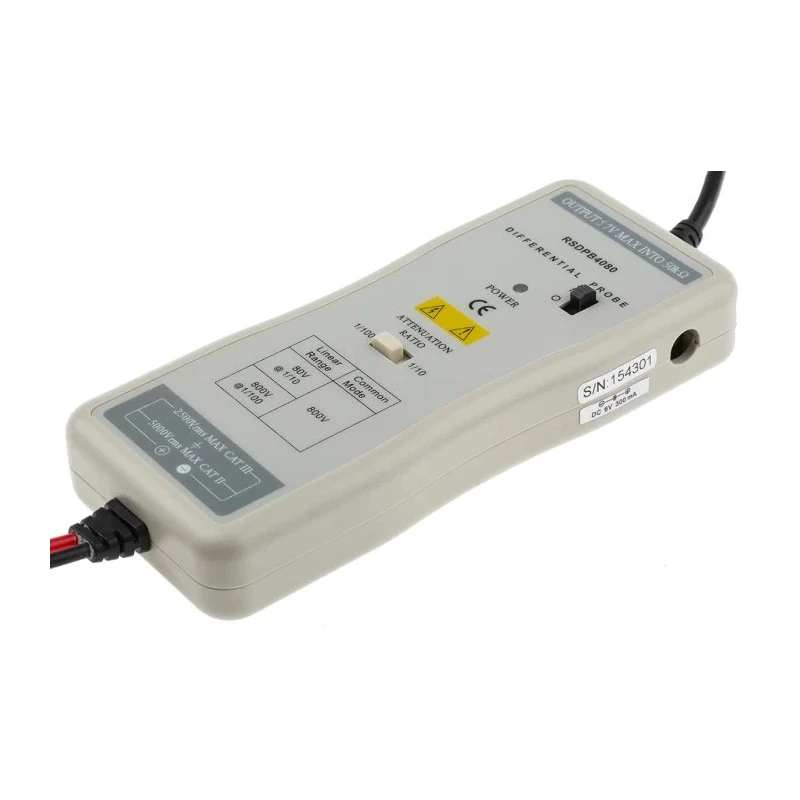

RS PRO High Voltage Differential Oscilloscope Probe 50 MHz Bandwidth 1.5kV CAT III 5ns Rise Time Model 123-6478
Specifications
| Country of Origin | China |
|---|---|
| Brand | RS PRO |
| Model | 123-6478 |
| Connector Type | BNC, USB Type B, Socket |
| Bandwidth | 50MHz |
| Probe type | Differential |
| Rise Time | 5ns |
| Attenuation | 1:10, 1:100 |
| Number of Probes | 1 |
| Standards/Approvals | CE: EN500811 and 500821, IEC 10101 |
| Safety Category Level | CAT III, ARM Cortex, CAT II |
| Maximum Common Mode Input Voltage | 1.5kV |
| Standards/Approvals CE | EN500811 and 500821, IEC 10101 |
| CE | EN500811 and 500821, IEC 10101 |
| Attenuation 1 | 10, 1:100 |
| Maximum differential test voltage (DC + Peak AC) 10 X | 80 V, 100 X: 800 V |
| RS PRO Oscilloscope Probe, Differential Type, 50 MHz, 1 | 10, 1:100, BNC, USB Type B, Socket Connector |
Key Features
- Equipped with BNC and USB Type B socket connectors for wide compatibility.
- Maximum common mode input voltage rating of 1.5 kV for safety in demanding environments.
- Fast rise time of 5 nanoseconds ensures accurate transient capture.
- Complies with CE EN500811, EN500821, and IEC 10101 standards to meet industrial safety requirements.
- Suitable for research, development, debugging, and maintenance of switching power supplies and frequency converters.
- Probe body dimensions 165 x 69 x 26 mm and weight approximately 500 g for ergonomic use.
- Provides ±1% DC accuracy for precise measurements in laboratory and industrial applications.
Product Description
RS PRO 123-6478 high voltage differential oscilloscope probe offers 50 MHz bandwidth and is engineered for floating voltage measurements and effective common mode noise suppression in various industrial applications. It features dual attenuation ratios of 1:10 and 1:100 to adapt signal input levels for accurate waveform analysis.

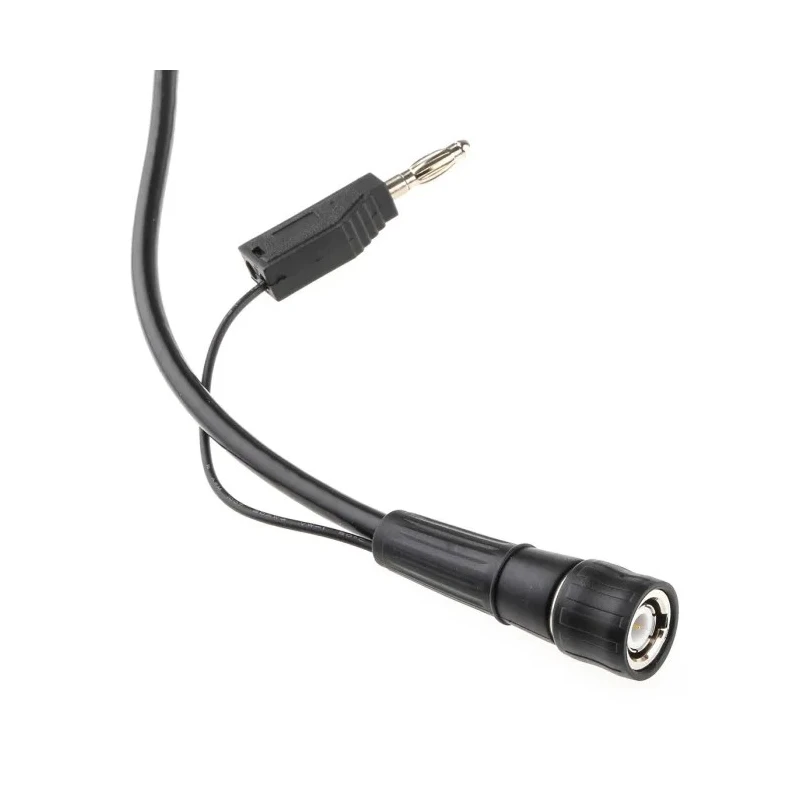

This probe is fitted with standard BNC and USB Type B socket connectors, making it compatible with most oscilloscope brands provided the oscilloscope input impedance is set to 1 MΩ. In case of 50 Ω input selection, attenuation multiplication occurs accordingly, enhancing measurement flexibility.
The probe ensures operator safety with a maximum common mode input voltage of 1.5 kV (CAT III rating) and features rapid 5 ns rise time for capturing transient signals effectively. Furthermore, it meets safety standards including CE: EN500811, EN500821, and IEC 10101, ensuring compliance with international electrical safety regulations.
Typical use cases include floating voltage measurement, testing frequency converters, welding and plating power supplies, induction heating, and electromagnetic oven diagnostics. The probe's ergonomic size (165 x 69 x 26 mm) and approximately 500 g weight facilitate comfortable handling during extensive testing sessions.
This product is essential in industrial, laboratory, HVAC, and manufacturing environments that require reliable high voltage differential signal measurement with superior noise rejection and accurate results.
Supports attenuation ratios of 1:10 and 1:100 for flexible signal measurement. Equipped with BNC and USB Type B socket connectors for wide compatibility. Maximum common mode input voltage rating of 1.5 kV for safety in demanding environments.
Fast rise time of 5 nanoseconds ensures accurate transient capture. Complies with CE EN500811, EN500821, and IEC 10101 standards to meet industrial safety requirements. Suitable for research, development, debugging, and maintenance of switching power supplies and frequency converters.
Probe body dimensions 165 x 69 x 26 mm and weight approximately 500 g for ergonomic use. Provides ±1% DC accuracy for precise measurements in laboratory and industrial applications. Explore EnvMart's extensive range of Oscilloscope Probes for complementary testing accessories and solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has a bandwidth of 50 MHz, allowing it to capture a wide range of signals effectively.
The maximum common mode input voltage rating is 1.5 kV, which is suitable for demanding environments.
It is equipped with BNC and USB Type B socket connectors, providing wide compatibility with various oscilloscopes.
The rise time is 5 nanoseconds, ensuring accurate capture of transient signals.
This unit supports dual attenuation ratios of 1:10 and 1:100, allowing for flexible signal measurement.
It provides a DC accuracy of ±1%, which is essential for precise measurements in both laboratory and industrial applications.
The probe has dimensions of 165 x 69 x 26 mm and weighs approximately 500 g, facilitating ergonomic handling during use.
It complies with CE standards EN500811, EN500821, and IEC 10101, ensuring it meets industrial safety requirements.
It is suitable for applications such as floating voltage measurement, testing frequency converters, and maintenance of switching power supplies.
This product includes one probe, designed for high voltage differential measurements.
The maximum differential test voltage is 80 V for 10X attenuation and 800 V for 100X attenuation.
It is intended for research, development, debugging, and maintenance tasks in various industrial and laboratory settings.
