Testec Oscilloscope Probe Differential Type 25 MHz Bandwidth BNC Connector TA057
Specifications
| Country of Origin | Taiwan |
|---|---|
| Brand | Testec |
| Model | TA057 |
| Connector Type | BNC |
| Bandwidth | 25MHz |
| Probe type | Differential |
| Rise Time | 14ns |
| Number of Probes | 2 |
| Standards/Approvals | IEC 1010.2 031, IEC 1010.1 |
| Safety Category Level | CAT III |
| Safety Category Voltage | 1kV |
| Maximum Common Mode Input Voltage | 1kV |
| Common mode range is ±700V (DC + peak AC) or 500VRMS (10 | 1 & 100:1) |
| Differential range is ±140V (DC + peak AC) or 140VRMS at 20 | 1 |
| Attenuation ratio is 20 | 1/200:1 |
| Maximum differential is ±1400V (DC + peak AC) or 1000V RMS at 200 | 1 |
| at 20 | 1 and 200:1 |
| Testec SI Series TT-SI 9002 Oscilloscope Probe, Differential Type, 25MHz, 1 | 20, 1:200, BNC ConnectorBrand: Testec |
Key Features
- The probe supports signal speeds up to 25 MHz for reliable waveform capture.
- It is designed as an active differential probe for enhanced measurement safety and precision.
- The probe accommodates maximum common-mode input voltages up to 1 kV CAT III safety rating.

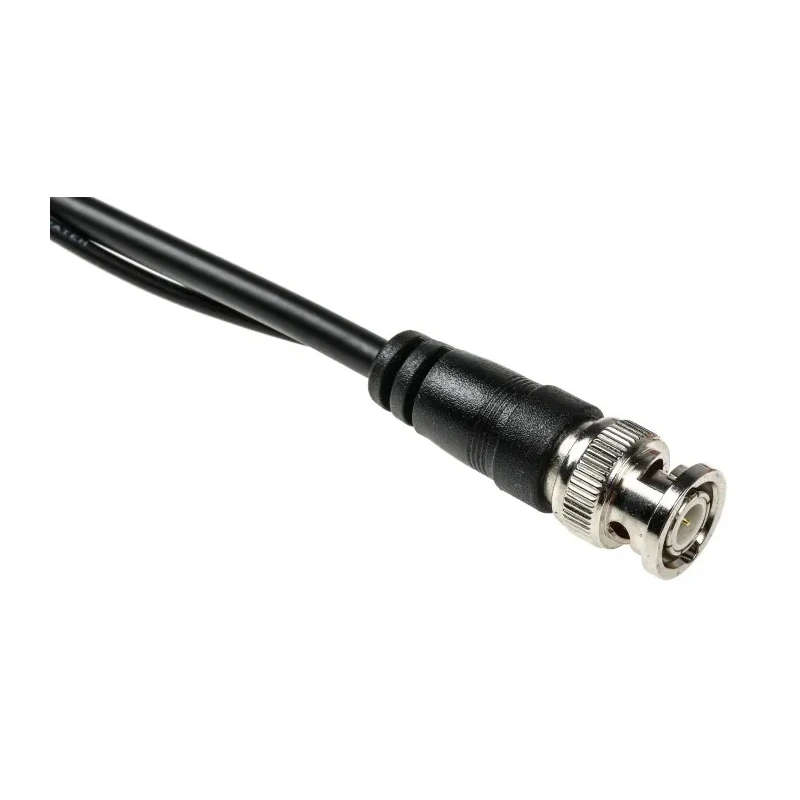

- Compact BNC connector ensures easy and secure connection to oscilloscopes.
- The set includes two probes enabling differential signal analysis.
- Input impedance is high with 4 MΩ and 5.5 pF to ground for minimal circuit loading.
- Compatible with standard single-ended input oscilloscopes to extend functionality.
- Manufactured in Taiwan (Province of China) with compliance to IEC 1010 standards.
Product Description

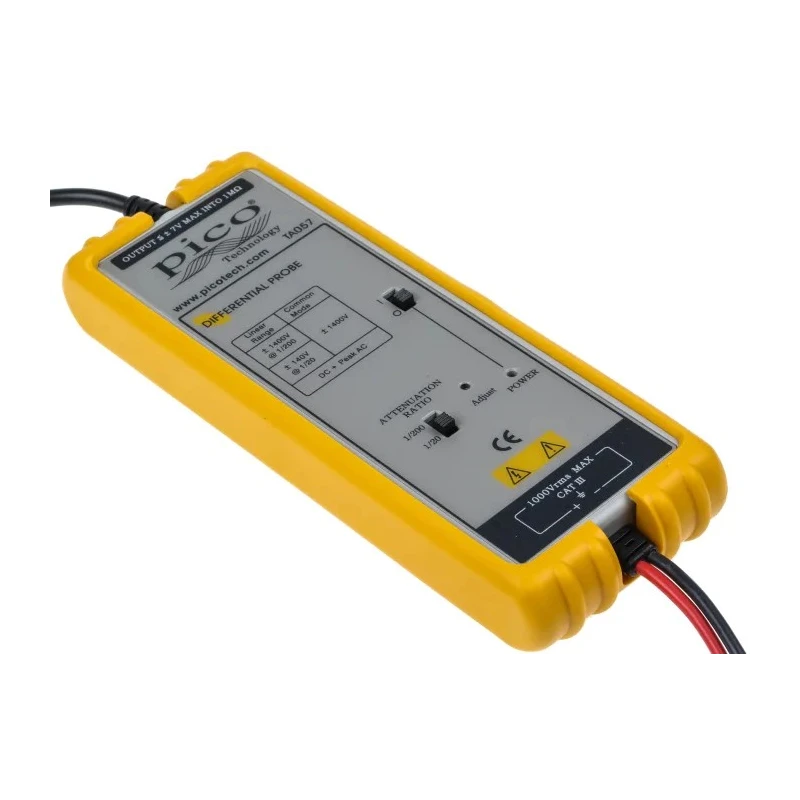

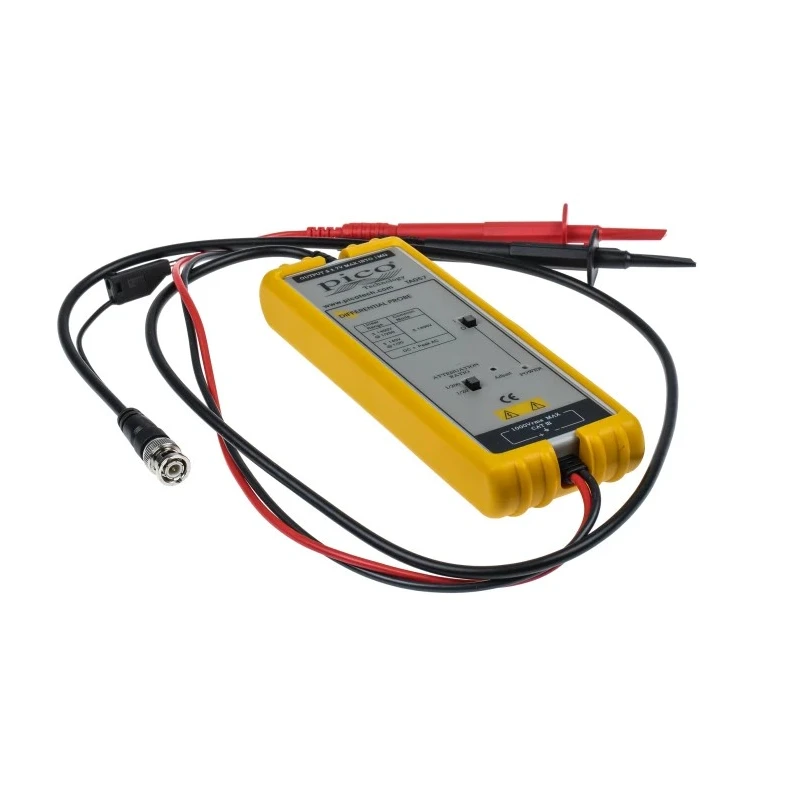

Pico Technology TA057 oscilloscope probe is a high-quality differential probe with a bandwidth of 25 MHz and a robust BNC connector, designed for accurate, safe measurements of high common-mode voltages up to ±1400V. This active probe is particularly suitable for industrial, laboratory, electronic development, and test environments requiring precise differential voltage measurements.
The TA057 extends the capabilities of standard oscilloscopes by enabling differential input usage while maintaining a high attenuation ratio of 20:1 and 200:1. It features an input impedance of 4 MΩ in parallel with 5.5 pF on each side to ground, minimizing any impact on the test circuit. It offers a differential range of ±140 V (DC plus peak AC) or 140 VRMS at 20:1 and can handle a maximum differential voltage of ±1400 V or 1000 VRMS at 200:1 attenuation.
This probe delivers a rise time of 14 ns, making it suitable for signals up to 25 MHz bandwidth while ensuring an accuracy of ±2%. It is rated for CAT III safety at 1 kV, assuring operator and equipment protection against high-voltage hazards. The BNC connector provides a secure and widely compatible interface for integration with a variety of oscilloscopes.

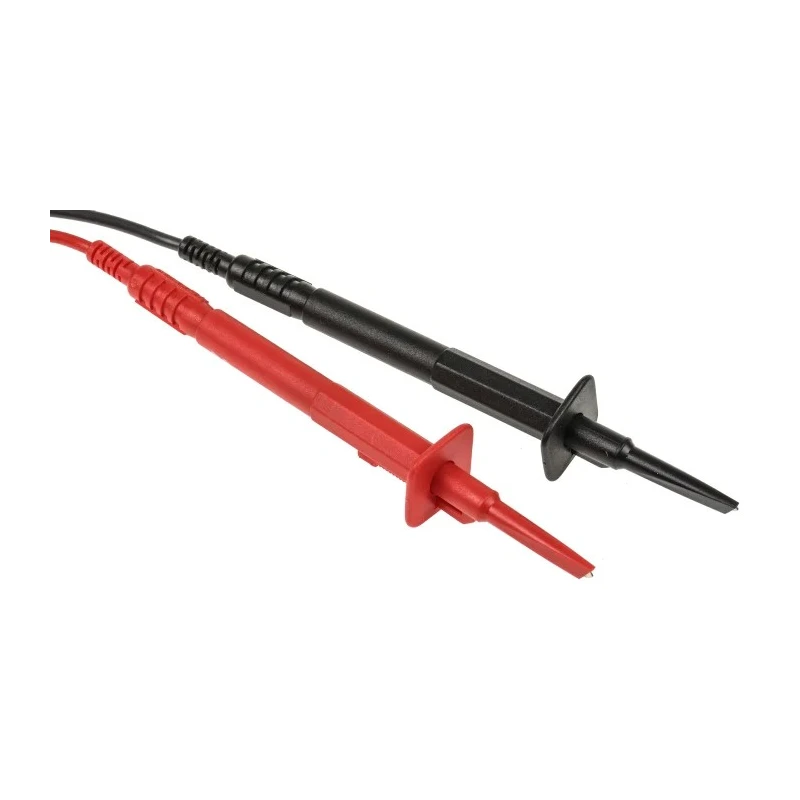

The probe is supplied as a set of two, facilitating true differential measurements necessary in advanced diagnostics, RF testing, power electronics, and industrial electrical applications. Compliance with IEC 1010.2 031 and IEC 1010.1 standards assures adherence to rigorous safety and performance requirements.
Active differential oscilloscope probe with 25 MHz bandwidth. High common-mode voltage handling up to 1 kV CAT III safety rating. 20:1 and 200:1 attenuation ratios with ±2% accuracy. Input impedance of 4 MΩ in parallel with 5.5 pF per input side.
Rise time of 14 ns enables accurate high-speed signal capture. BNC connector for stable and versatile oscilloscope connection. Includes two probes for differential measurement applications. Manufactured in Taiwan, meeting international IEC safety standards.
This oscilloscope probe is an essential tool for engineers and technicians working in industrial electrical testing, electronics development, research laboratories, and quality control environments. It reliably measures differential voltages in complex systems, making it indispensable for advanced test and measurement tasks.
Explore more products in the Oscilloscope Probe category on EnvMart for complementary accessories and measurement solutions.
