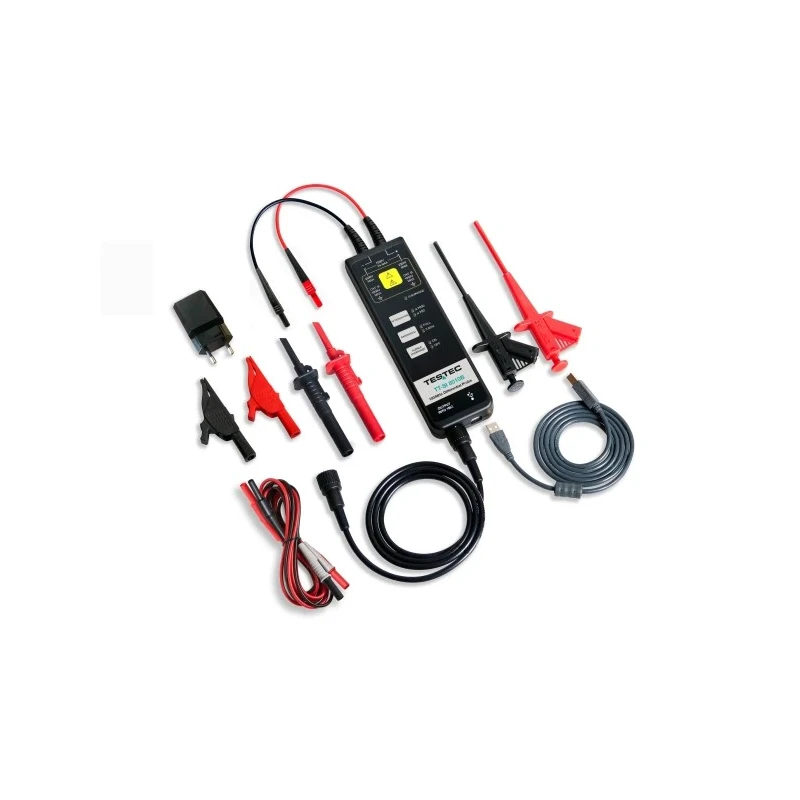

Testec 8000 Series Differential Oscilloscope Probe, 100 MHz Bandwidth, 1:100 / 1:1000 Attenuation, BNC Connector TT-SI 8010B

Testec TT-SI 8010B Differential Oscilloscope Probe is an active probe in the 8000 Series designed to provide safe and accurate high-voltage measurements between two points without requiring a ground connection. It operates with a bandwidth of 100 MHz and supports attenuation ratios of 1:100 and 1:1000, allowing detailed analysis at high frequencies. The probe supports a maximum common mode input voltage of 7000 V ac/dc, enabling it to safely measure high voltage differentials.

The probe features a BNC connector compatible with 1 MOhm input oscilloscopes from all major brands. It is powered via the included USB cable and EU power adapter for reliable operation. Delivered in a robust hardcase, the package includes a factory calibration certificate, ensuring accuracy and compliance with testing standards.

Specifications such as a rise time of 5 ns, DC accuracy of ±2%, and safety rating CAT III at 1000 V per side to ground make this probe suitable for demanding industrial and laboratory environments. The probe adheres to IEC61010-031:2015 safety standards.

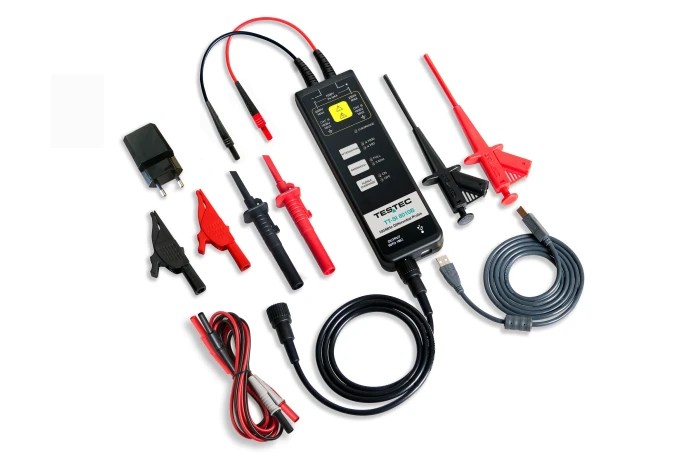

The comprehensive scope of delivery includes the probe itself, 2 insulated banana plug test leads, 2 hook clips, 2 pincer hook clips, 2 crocodile clips (each pair with red and black colors), 1 insulated 100 cm BNC test lead, USB power cord, EU power adapter, factory calibration certificate, and a user manual.

Its robust design combined with high voltage rating and accuracy makes the TT-SI 8010B probe ideal for electrical test and measurement tasks involving oscilloscopes, offering safety and operational reliability in industrial and lab settings.

The probe supports a maximum common mode voltage of 7000 V ac/dc. It features a differential attenuation ratio selectable between 1:100 and 1:1000. The package includes multiple test leads and clips for versatile connectivity.

Designed and rated for safety compliance CAT III at 1000 V per side to ground. This active probe has a bandwidth of 100 MHz with a rise time of 5 nanoseconds. Delivered in a hard protective case for transport and storage.

Comes with a factory calibration certificate to guarantee measurement accuracy. Discover comprehensive Oscilloscope Probes and accessories at EnvMart, tailored for industrial, laboratory, HVAC, manufacturing, and electrical testing applications.
