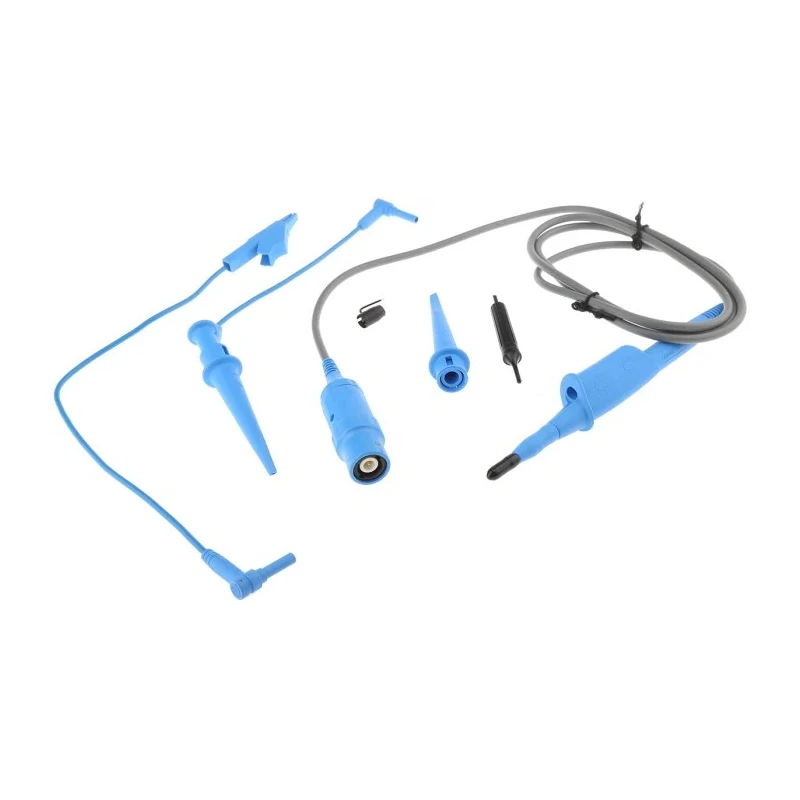

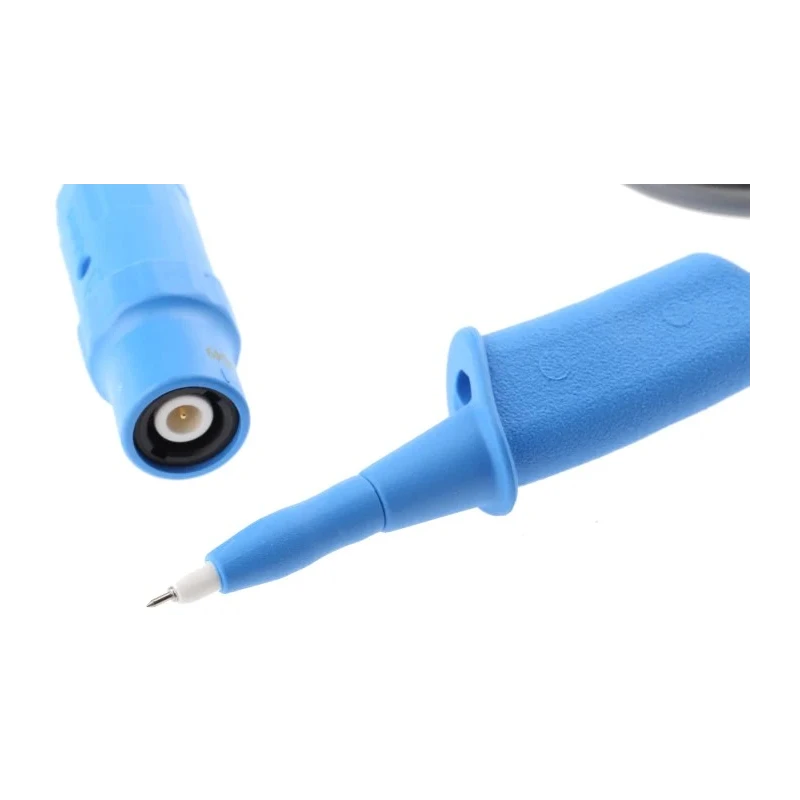

Tektronix TPS2000 Series Oscilloscope Probe Voltage Type 200 MHz 100x Attenuation P5122

Tektronix P5122 oscilloscope probe from the TPS2000 series is designed for high-fidelity voltage measurements with a bandwidth of 200 MHz and 100x attenuation. It delivers excellent isolation from earth ground and full channel-to-channel isolation, making it ideal for use with TPS2000 and THS3000 digital storage oscilloscopes.

This probe is suitable for industrial and laboratory use in power supply design, motor drive testing, electronic ballast monitoring, power semiconductor analysis, and various switch mode control applications. Its input impedance of 100 MΩ and adjustable compensation range (7 pF to 30 pF) allow precise signal capture with minimal loading effects.

The P5122 probe supports a rise time of 2.2 ns, ensuring accurate transient signal analysis. It is rated for maximum input voltages of up to 1000 VRMS CAT II and is floatable up to 600 VRMS CAT II for enhanced safety in high voltage environments.

Conforming to IEC 61010-031 and CE standards, this oscilloscope probe prioritizes user safety and product reliability. It is the recommended probe for measuring ripple on high voltage DC supplies but should not be used for AC coupled measurements on signals with offsets greater than 300 VDC.

Compatible with Tektronix TPS2000 and THS3000 series oscilloscopes. Bandwidth from DC to 200 MHz with a 2.2 ns rise time. Input impedance of 100 MΩ and 100x attenuation ratio. Maximum input voltage DC or RMS of 1000 VRMS CAT II.

Floatable up to 600 VRMS CAT II for safe high voltage use. Wide compensation range ensures accurate signal adjustments. Compliant with IEC 61010-031 and CE safety standards.

This Tektronix Oscilloscope Probe is suited for industrial, laboratory, electronic design, and maintenance applications, offering reliable, high-precision voltage measurement capability. Explore more Tektronix measuring instruments and accessories at EnvMart.
