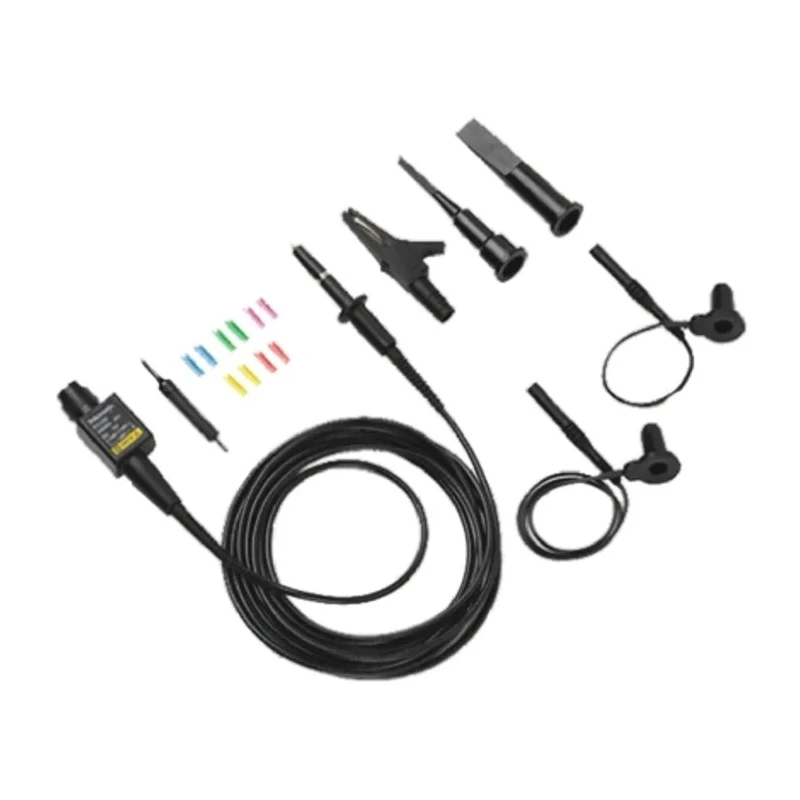

Tektronix 5000 Series High Voltage Passive Oscilloscope Probe 500 MHz Bandwidth 1000:1 Attenuation P5100A
Specifications
| Country of Origin | China |
|---|---|
| Brand | Tektronix |
| Model | P5100A |
| Connector Type | Crocodile Clip, Ground Lead, Hook Tip |
| Bandwidth | 500MHz |
| Series | 5000 |
| Probe type | High Voltage, Passive |
| Rise Time | 700ps |
| Attenuation | 1000:1 |
| Safety Category Level | CAT II |
| Safety Category Voltage | 1kV |
| Attenuation ratio is 1 | 100 |
| Attenuation 1000 | 1 |
| Tektronix P5100 Oscilloscope Probe, Logic Type, 500MHz, 100xBrand | Tektronix |
Key Features
- High voltage passive probe designed for 500 MHz applications.
- Equipped with crocodile clip, ground lead, and hook tips for versatile connectivity.
- Low input capacitance adjustable between 7 pF to 30 pF for oscilloscope compatibility.
- Comes with cable markers, adjustment tool, and instruction manual for ease of use.
- Features a maximum common mode input voltage of 2.5 kV with CAT II safety rating.
- Complies with UL 3111-1, EN 61010-1, CSA, CE, and IEC 61010-2-031 safety standards.
- Includes multiple accessories such as 18 inch and 6 inch ground leads and hook tips in varying sizes.
Product Description
Tektronix P5100A High Voltage Passive Oscilloscope Probe is engineered to deliver superior performance for industrial, laboratory, and field testing environments requiring accurate high-voltage measurement up to 500 MHz bandwidth.
This probe features an attenuation ratio of 1000:1 and low input capacitance, making it ideal for high frequency applications. The input capacitance compensation can be adjusted from 7 pF to 30 pF to ensure compatibility with various oscilloscopes and plugins.
Designed with safety in mind, it has a maximum common mode input voltage rating of 2.5 kV and meets CAT II safety standards. Compliance with international approvals such as UL 3111-1, EN 61010-1, CSA, CE, and IEC 61010-2-031 ensures reliability and regulatory conformance.
The probe comes with a comprehensive accessory kit including crocodile clip, ground leads (18 inch and 6 inch), hook tips (small and large), cable markers, and an adjustment tool to facilitate setup and connection to different devices under test.
Applications span across industrial machinery diagnostics, high voltage electronic testing, equipment maintenance, and calibration in manufacturing and research facilities. High voltage passive probe designed for 500 MHz applications.
Provides 1000:1 attenuation ratio ensuring signal integrity. Equipped with crocodile clip, ground lead, and hook tips for versatile connectivity. Low input capacitance adjustable between 7 pF to 30 pF for oscilloscope compatibility.
Comes with cable markers, adjustment tool, and instruction manual for ease of use. Features a maximum common mode input voltage of 2.5 kV with CAT II safety rating. Complies with UL 3111-1, EN 61010-1, CSA, CE, and IEC 61010-2-031 safety standards.
Includes multiple accessories such as 18 inch and 6 inch ground leads and hook tips in varying sizes. Explore a wide range of Oscilloscope Probes and accessories on EnvMart for comprehensive test and measurement needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The Tektronix P5100A probe has a bandwidth of 500 MHz, making it suitable for high-frequency applications.
This model features an attenuation ratio of 1000:1, ensuring signal integrity during measurements.
It is equipped with a crocodile clip, ground lead, and hook tips for versatile connectivity options.
The maximum common mode input voltage for the P5100A is 2.5 kV, compliant with CAT II safety standards.
The rise time of this probe is 700 ps, suitable for capturing fast signal transitions.
The input capacitance of the P5100A can be adjusted between 7 pF to 30 pF for oscilloscope compatibility.
This probe complies with UL 3111-1, EN 61010-1, CSA, CE, and IEC 61010-2-031 safety standards.
The probe comes with an accessory kit that includes 18 inch and 6 inch ground leads, hook tips in varying sizes, cable markers, and an adjustment tool.
This probe is suitable for industrial machinery diagnostics, high voltage electronic testing, equipment maintenance, and calibration in manufacturing and research facilities.
The safety category voltage rating for the P5100A is 1 kV, ensuring safe operation in high voltage applications.
It features adjustable input capacitance, allowing compatibility with different oscilloscopes and plugins by tuning the capacitance from 7 pF to 30 pF.
The P5100A probe is manufactured in China.
