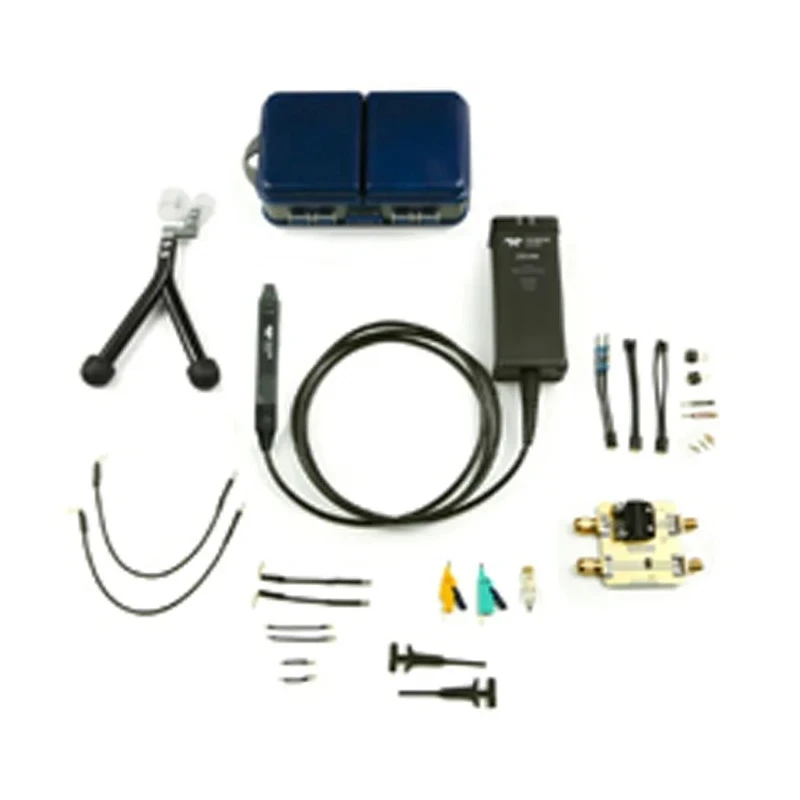

Teledyne LeCroy ZD Series Differential Oscilloscope Probe 650 MHz Bandwidth 1:1 Attenuation ProBus Connector ZD500

Teledyne LeCroy ZD Series ZD500 differential oscilloscope probe is a high-performance active probe with a bandwidth of 650 MHz, designed to measure the voltage difference between two points with high accuracy. It operates at a 1:1 attenuation ratio, preserving signal fidelity and features a ProBus connector that integrates directly with supported oscilloscopes. This probe is part of the ZD Series, known for exceptional common-mode noise rejection and low noise levels, making it suitable for rigorous industrial and laboratory testing.

Featuring a maximum common mode input voltage of 18 V and a rapid rise time of 650 ps, the ZD500 is engineered for applications demanding precise voltage and timing analysis such as automotive electronics development, power electronics, and high-speed data communication signal debugging. The active differential design allows for measurement of signals that are not referenced to ground, enabling more complex testing scenarios.

The probe set includes 2 high-quality probes, facilitating versatile differential measurements. The built-in gain and offset controls are transparent to users, simplifying setup and minimizing measurement errors. When paired with a compatible Teledyne LeCroy digital oscilloscope, the probe requires no external power supply, enhancing ease of use and reducing setup complexity.

Manufactured in the United States, the ZD500 meets stringent quality and performance standards, making it a reliable tool for industrial, laboratory, and design environments requiring precision measurements and troubleshooting capabilities.

Designed for accurate differential voltage measurements. Featuring a bandwidth of 650 MHz for high-frequency signal analysis. 1:1 attenuation ratio ensures signal integrity without scaling. Includes 2 probes suitable for various test scenarios.

Maximum common mode input voltage rating of 18 V for robust performance. Equipped with a ProBus connector for seamless oscilloscope integration. Rise time of 650 ps allows precise timing measurements. Ideal for automotive development and wireless communication design.

No external power supply required when used with compatible LeCroy oscilloscopes. For more test & measurement solutions, explore the Oscilloscope Probes category at EnvMart.
