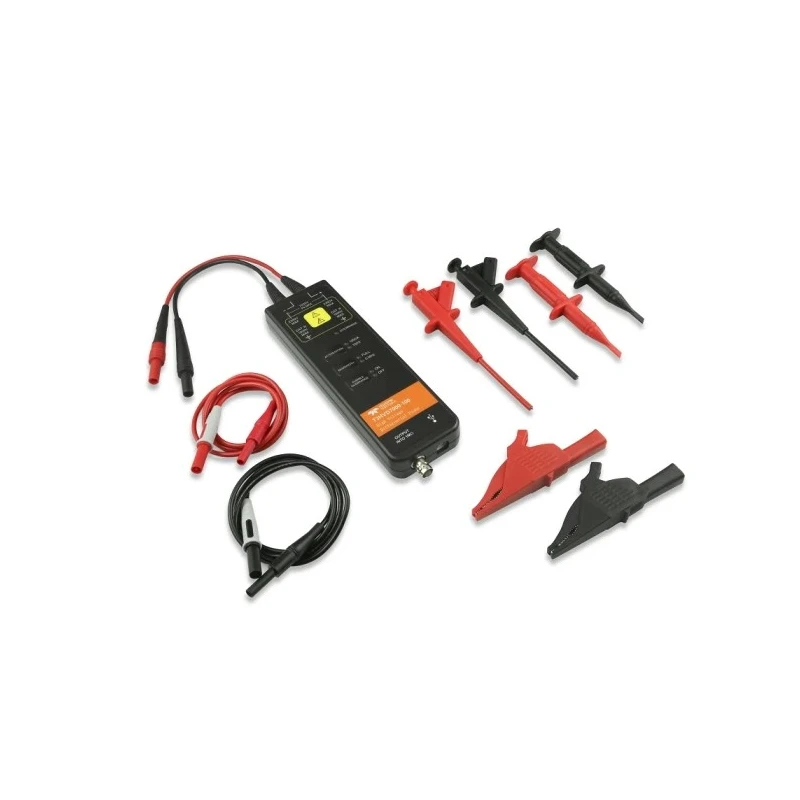

Teledyne LeCroy Differential Oscilloscope Probe 100 MHz Bandwidth 100:1000 Attenuation BNC Connector T3HVD7000-100

Teledyne LeCroy T3HVD7000-100 is a high voltage differential oscilloscope probe with a 100 MHz bandwidth and 100:1000 attenuation ratio, designed for precise voltage measurements in electrical and electronic applications. It supports differential signals up to ±7000 V (DC + Peak AC) and features a fast rise time of 1.75 ns to ensure accurate waveform capture with low circuit loading.

This probe is compatible with any oscilloscope featuring a 1 MΩ input impedance and a BNC connector, providing both single-ended and differential measurement options. The device includes an over-voltage alarm with dual indicator lights for enhanced safety during operation.

Applications include power electronics, multi-phase motor drives such as electric vehicles, inverters, power conversion systems, and domestic and industrial photovoltaic system designs. It is also used in power supply design, floating voltage measurements, domestic appliance testing, research and development, and electronics education.

The probe meets CAT III safety level standards and is manufactured in China. It is a reliable tool for industrial, laboratory, and commercial testing environments requiring high voltage differential measurements.

The probe supports up to ±7000 V differential input voltage. The 100 MHz bandwidth allows for wide frequency coverage. Fast 1.75 ns rise time supports high-speed signal analysis. 100:1000 attenuation ratio for accurate signal scaling.

BNC connector ensures compatibility with standard oscilloscopes. Dual indicator over-voltage alarm enhances operational safety. Suitable for research, testing, and educational applications. Explore more oscilloscopes and probes on EnvMart for diverse industrial measurement needs.
