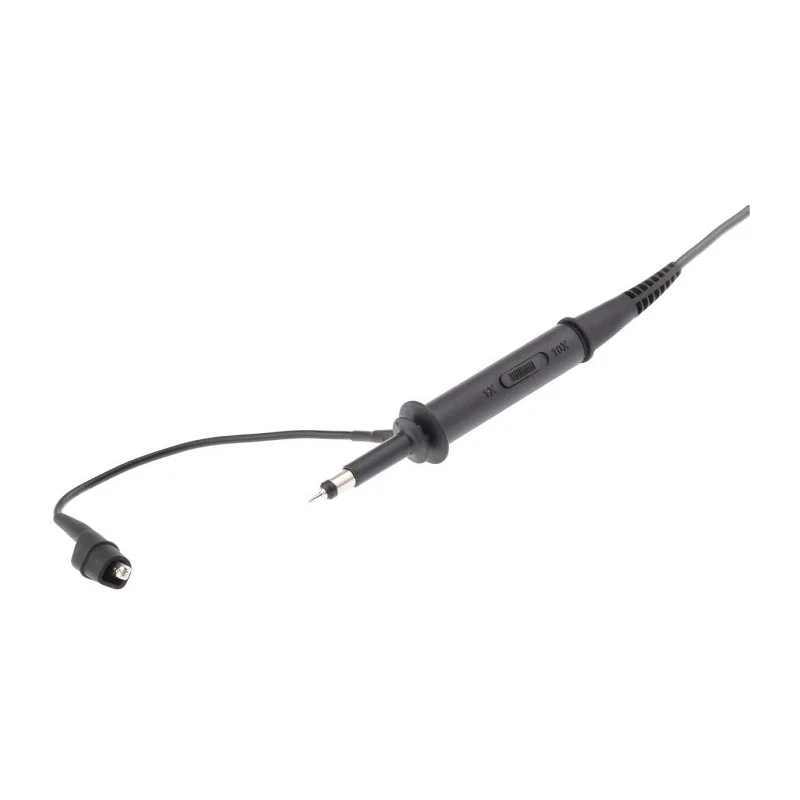

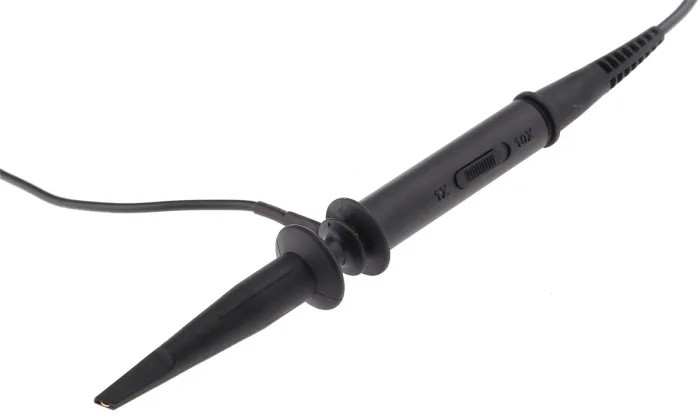

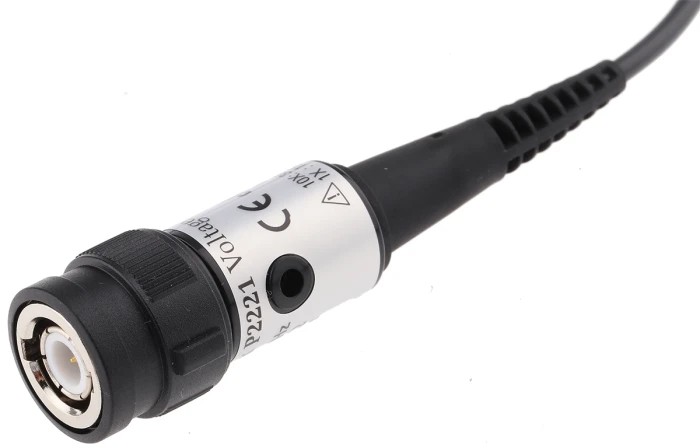

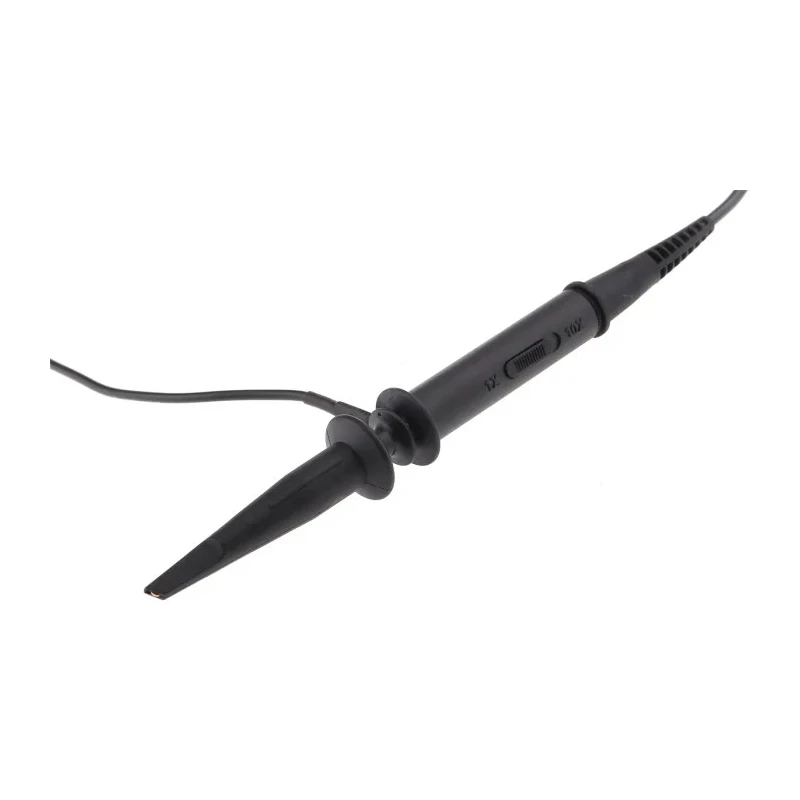

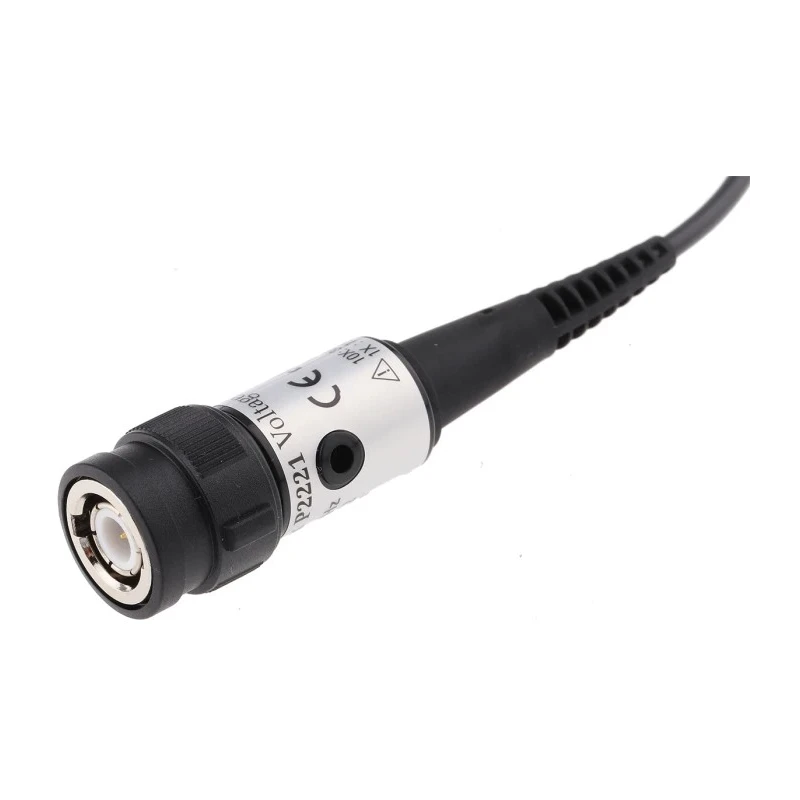

RS PRO Tektronix Passive Voltage Oscilloscope Probe 200 MHz, 1:1 and 1:10 Attenuation, Hook Tip Connector P2221
Specifications
| Country of Origin | China |
|---|---|
| Brand | RS PRO |
| Model | P2221 |
| Connector Type | Hook Tip, Ground Lead |
| Bandwidth | 200MHz |
| Probe type | Voltage |
| Rise Time | 2.2ns |
| Attenuation | 1:1, 1:10 |
| Standards/Approvals | UL, CE, CSA, EN 61010031: 2002 |
| Safety Category Level | CAT II |
| Safety Category Voltage | 300V |
| Maximum Common Mode Input Voltage | 300V |
| Attenuation 1 | 1, 1:10 |
| Standards/Approvals UL, CE, CSA, EN 61010031 | 2002 |
Key Features
- The probe provides accurate low-frequency and telecom measurements.
- It features a hook tip and ground lead connectors for secure attachment.
- Supports a maximum common mode input voltage of 300V with CAT II safety rating.
- Characteristic rise time of 2.2ns ensures rapid signal response.
- Compatible with MSO2000 and DPO2000 series oscilloscopes.
Product Description
RS PRO P2221 Tektronix Oscilloscope Probe is a high-performance passive voltage probe designed for industrial, laboratory, and telecom applications requiring precise measurements at frequencies up to 200 MHz. It offers selectable attenuation levels of 1:1 and 1:10, making it suitable for a variety of signal amplitudes and test scenarios.
The probe includes robust hook tip and ground lead connectors for reliable attachment to measurement points, facilitating accurate signal capture in complex circuit environments. It supports a maximum common mode input voltage of 300V under CAT II safety standards, ensuring user protection during typical use cases.
With a fast rise time of 2.2 nanoseconds, the P2221 efficiently captures transient signals, making it ideal for mixed signal oscilloscopes such as the MSO2000 and DPO2000 series. Its compliance with UL, CE, CSA, and EN standards assures quality and reliability.
Typical applications include low-frequency computer and telecommunications measurements, power supply testing, and evaluation of low frequency amplifiers. This probe is an essential accessory for technicians and engineers working in laboratories, manufacturing test setups, and field service.
The probe offers selectable attenuation for versatile measurement ranges. Robust mechanical connectors ensure firm and safe connections. Rated for 300V common mode voltage enhancing safety. Designed for compatibility with leading oscilloscope models.
Supports rapid signal response with a 2.2ns rise time. Conforms to recognized international safety and quality standards.
RS PRO's range of oscilloscope accessories includes the P2221 as a reliable option for precise voltage measurement and signal integrity testing, suitable for industrial, laboratory, and telecom sectors. Explore more Oscilloscope Probes and accessories on EnvMart for all your test and measurement needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The bandwidth of this probe is 200 MHz, making it suitable for high-frequency measurements.
It features hook tip and ground lead connectors for secure attachment to measurement points.
The probe has a characteristic rise time of 2.2 nanoseconds, allowing for rapid signal response.
The P2221 offers selectable attenuation levels of 1:1 and 1:10, accommodating various signal amplitudes.
This model supports a maximum common mode input voltage of 300V under CAT II safety standards.
It is compatible with the MSO2000 and DPO2000 series oscilloscopes, making it versatile for different applications.
The probe is rated under CAT II safety category, ensuring user protection during typical use cases.
It complies with UL, CE, CSA, and EN standards, ensuring quality and reliability in its performance.
Typical applications include low-frequency computer and telecommunications measurements, as well as power supply testing.
The P2221 probe is manufactured in China.
This model is a passive voltage probe designed for industrial, laboratory, and telecom applications.
The probe includes robust hook tip and ground lead connectors for reliable attachment, but no additional accessories are specified.
