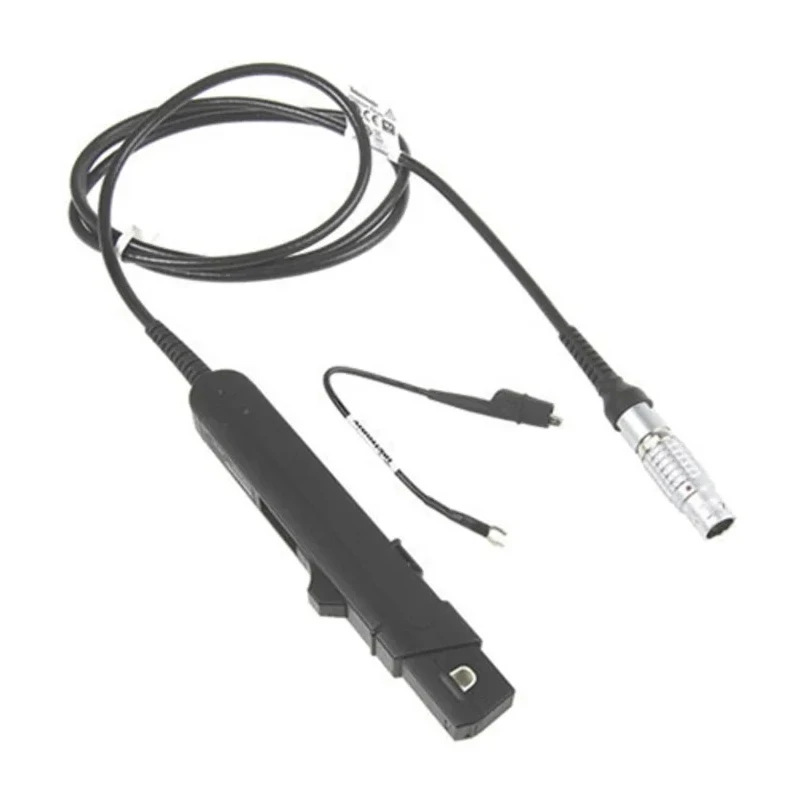

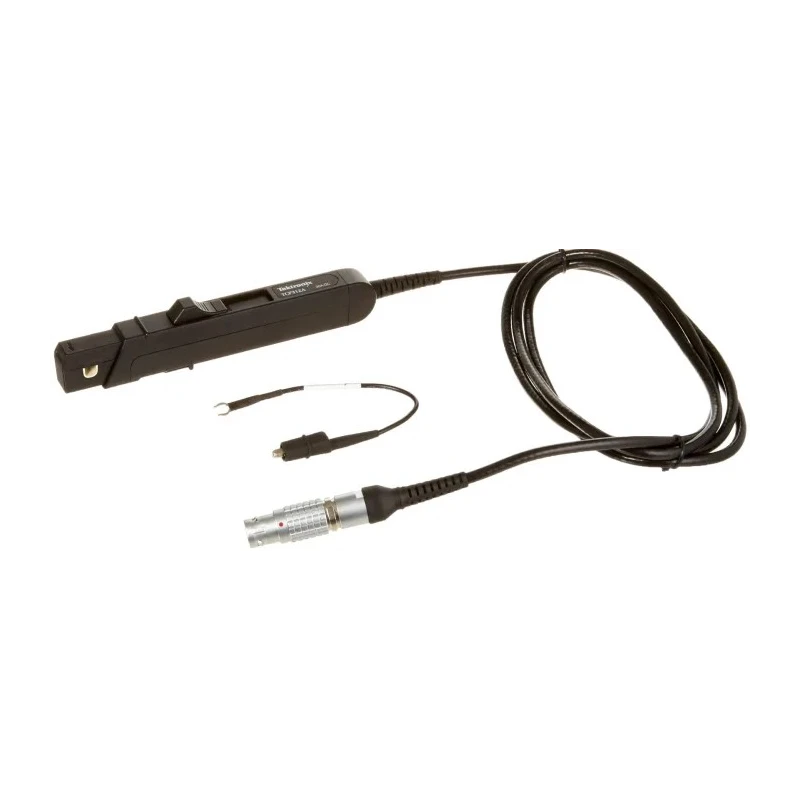

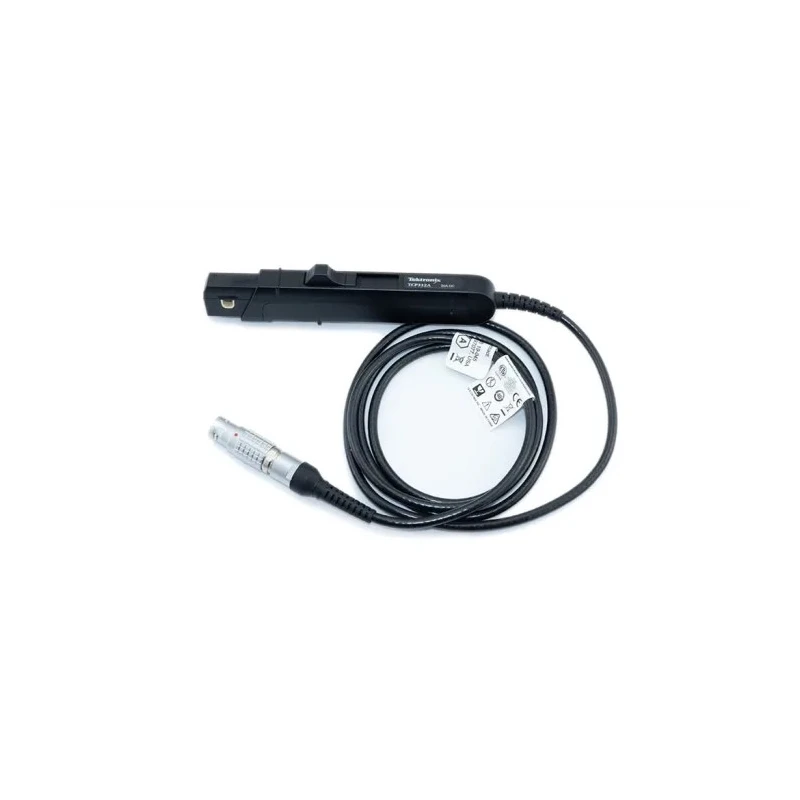

Tektronix TCP300 Series TCP312A Current Oscilloscope Probe, 100 MHz Bandwidth, BNC Connector TCP312A

Tektronix TCP312A Current Oscilloscope Probe from the TCP300 Series provides precise current measurement capabilities with a bandwidth of DC to 100 MHz and a BNC connector interface. This probe is designed for AC/DC current measurements up to 30A DC continuous, suitable for diverse testing and measurement applications.

The probe requires the TCPA300 amplifier (sold separately) to unlock its full measurement range, enabling measurement of current values spanning from low milliamp levels to high amperage currents. Its split-core construction allows clamp-style attachment around conductors, facilitating quick and non-intrusive current measurement without interrupting the circuit.

With a rise time of ≤3.5 ns and low insertion impedance of 0.7 ohm at 100 MHz, the TCP312A ensures minimal loading effect on the device under test, maintaining signal integrity. Safety is prioritized with CAT II and CAT III ratings supporting safe operation up to 300V, and the probe conforms to multiple international standards including UL and CAN/CSA certifications.

Visual status indicators provide clear feedback on operational status, including notifications for degaussing, probe open, overload conditions, or improper termination, reducing measurement errors and troubleshooting time. Low DC drift and noise contribute to enhanced sensitivity, especially beneficial for precision measurements at low current levels.

The probe’s compact size of 200x60x32 mm makes it practical for laboratory, industrial, and telecommunications use, as well as semiconductor power electronics and computer hardware testing environments. The package includes a probe ground lead, an instruction manual, and a certificate of traceable calibration to ensure reliability and quality.

Compatible with TCPA300 amplifier sold separately. Bandwidth DC to 100 MHz for wide frequency response. Low insertion impedance minimizes device loading. Split-core design for easy circuit clamping without disconnection.

Safety ratings CAT II and CAT III at 300V provide secure working conditions. Visual indicators for probe status and error conditions. Low DC drift and noise allow precise low-level current measurements. Compact dimensions optimize handling and application versatility.

Includes necessary accessories and calibration certificate.

This Tektronix TCP312A Current Oscilloscope Probe is ideal for industrial, laboratory, telecommunications, semiconductor, and commercial testing applications requiring reliable and precise current measurement solutions. EnvMart offers this high-quality probe for expert users demanding accuracy and safety in current diagnostics.
