Tektronix 1 GHz Bench Mixed Domain Oscilloscope 4 Channels MDO34

Free Delivery in India | Lowest Global Shipping Charges

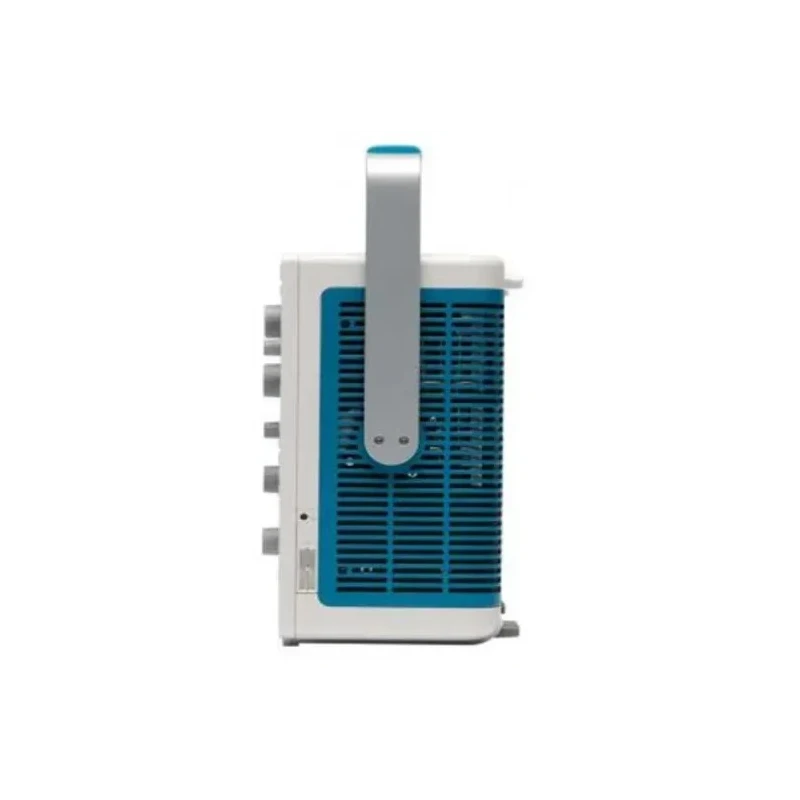

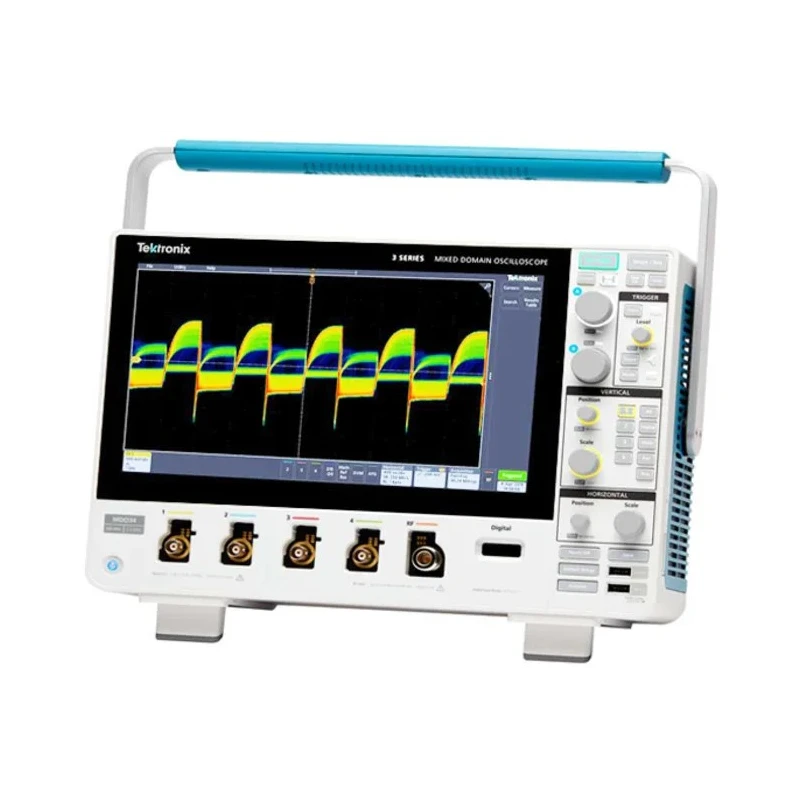

Tektronix 1 GHz Bench Mixed Domain Oscilloscope 4 Channels MDO34

Name: Tektronix 1 GHz Bench Mixed Domain Oscilloscope 4 Channels MDO34
Brand: TEKTRONIX
SKU: 424537
Price: 20.22 USD
Availability: InStock



Category Oscilloscopes Brand TEKTRONIX Condition New

Specifications

Country of Origin	China
Display Type	TFT LCD
Display	touchscreen
Brand	Tektronix
Height	252mm
Model	MDO34
Depth	148.6mm
Width	370mm
Bandwidth	1GHz
Sampling rate	on each analog channel
Series	MDO34
Interfaces	USB-488 - GPIB to USB Adapter
Number Of Channels	4
Vertical Resolution	8 bit
Memory Depth	128Mpts
Rise Time	400ns
Interface Type	CAN, CAN FD, I2C, I2S, LIN, MIL, SPI, UART, USB 2.0
Oscilloscope Type	Bench
Digital Channels	16
Safety Category Level	CAT II
Oscilloscope Form	Mixed Domain

Key Features

Large 11.6-inch HD color capacitive touchscreen display enhances user interaction.
Improved low-level signal measurement accuracy by up to 40 percent.
High sample rate of up to 5 GS/s on each analog channel.
Comprehensive triggering with over 125 trigger combinations.
Includes 16 digital channels with MSO for mixed signal analysis.
Supports multiple serial bus decode and trigger options for versatile testing.
Upgradeable bandwidth and software options for advanced analysis.
Equipped with DVM/Frequency Counter functionality free upon registration.

Product Description

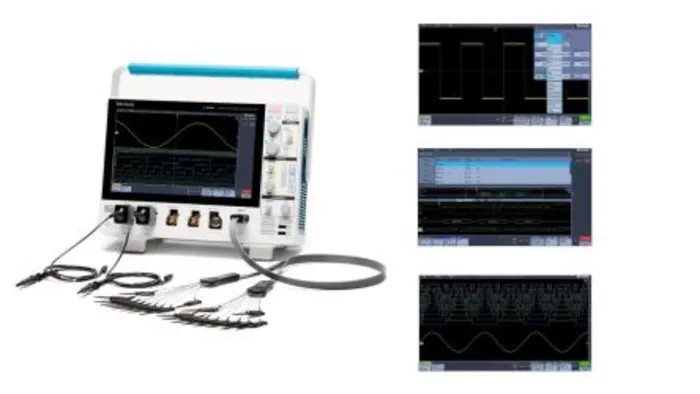

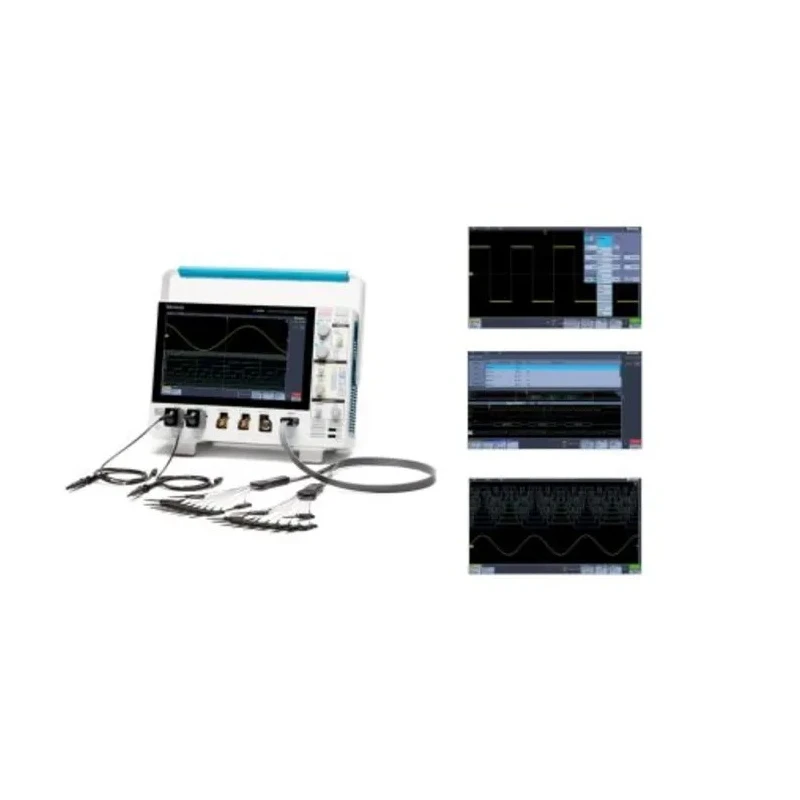

Tektronix MDO34 1 GHz Bench Mixed Domain Oscilloscope 4 Channels features a 1 GHz bandwidth with four analog channels and 16 digital channels, delivering high-performance mixed domain testing capabilities. It combines bench oscilloscope functionality with a built-in spectrum analyser and arbitrary/function generator options, making it ideal for industrial, laboratory, and advanced electronics testing.

The instrument offers a large 11.6-inch HD capacitive touchscreen for intuitive operation, supporting pinch, tap, and swipe gestures. It provides an improved low-level signal measurement accuracy enhancing signal clarity and analysis precision by as much as 40 percent compared to previous models.

Sample rates reach up to 5 GS/s per analog channel enabling detailed waveform capture and analysis. With over 125 trigger combinations and dozens of automated measurements, the MDO34 is versatile for complex signal acquisition and debugging tasks.

The accessory options include high-performance probes and signal sources, and software enhancements such as TekScope and TekDrive for remote-hybrid learning and PC workspace collaboration. It supports multiple serial bus protocols including CAN, I2C, UART, and SPI, facilitating comprehensive device communications analysis.

Large 11.6-inch HD capacitive touchscreen display for advanced control. High bandwidth and sampling rate for superior signal fidelity. Comprehensive serial bus decode and trigger support for protocol analysis. Built-in 1 GHz spectrum analyser for integrated RF testing.

Upgradeable options including bandwidth, digital channels, and function generators. Compatible with software suites for analysis, collaboration, and power measurements. Robust safety and compliance standards including CAT II and multiple international approvals.

Compact bench form factor with detailed measurement standard certifications.

This oscilloscope is widely used in industrial testing, research laboratories, aerospace, communications, and automotive electronics development environments. Its multi-domain measurement capability provides engineers and technicians with detailed insight for precision testing and troubleshooting.
