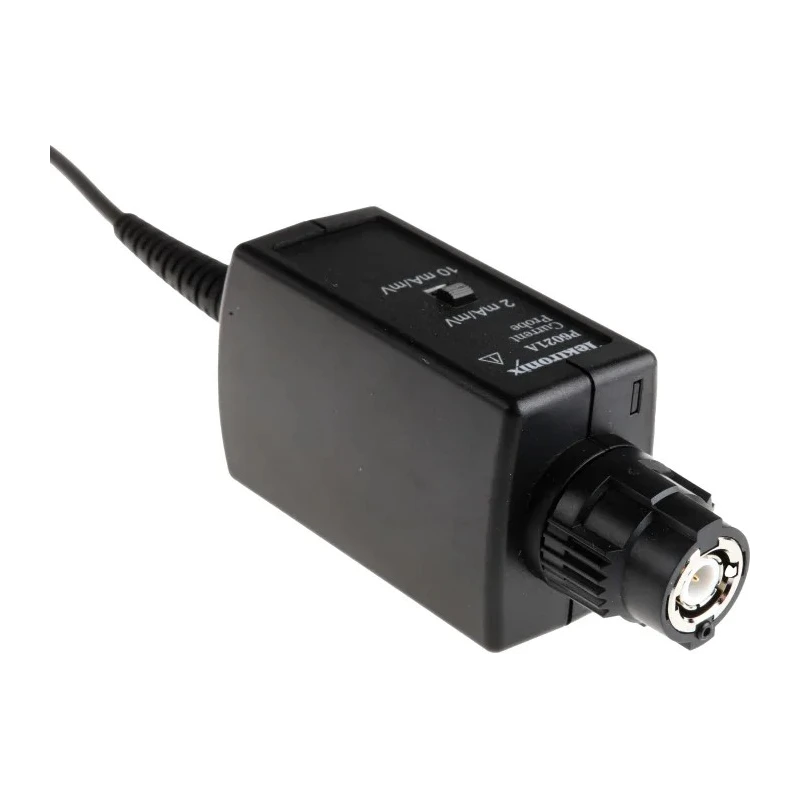

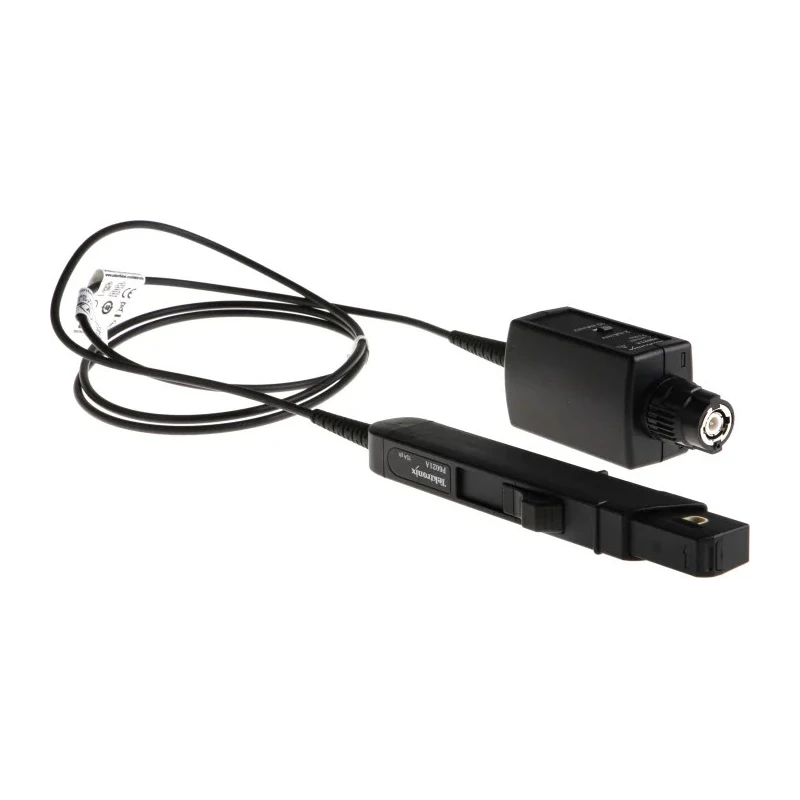

Tektronix P602 Series Current Type Oscilloscope Probe 60 MHz BNC Connector P6021A

Tektronix P6021A is a current type Oscilloscope Probe engineered to provide accurate current measurements across a broad bandwidth of 120 Hz to 60 MHz. This probe enables current measurement by clipping onto the conductor, eliminating the need to break the circuit under test, which is essential for non-intrusive diagnostics in electrical and electronic systems.

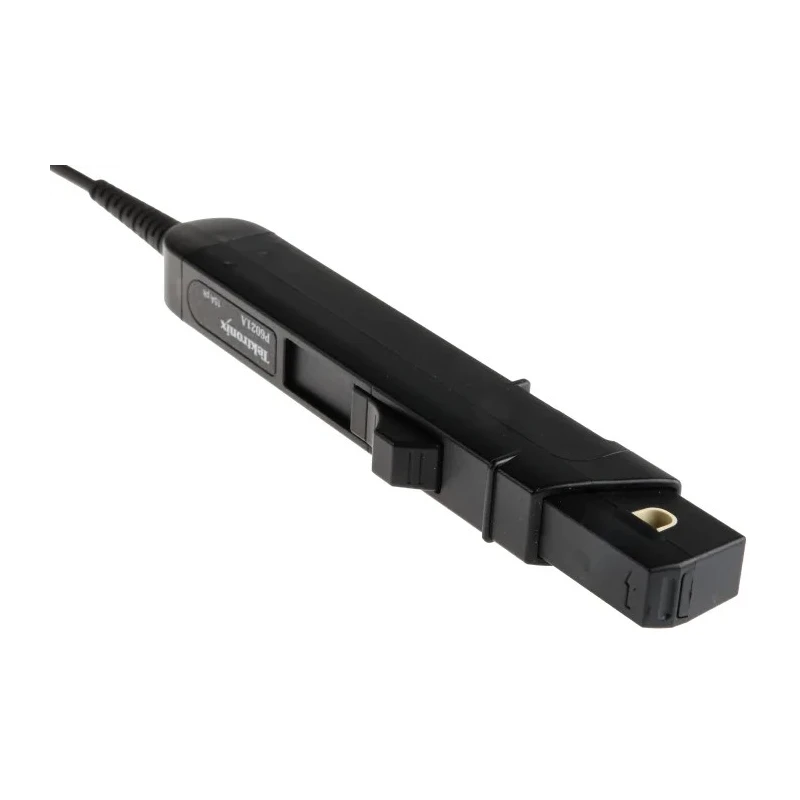

The probe features a switchable sensitivity allowing measurements at either 2 mA/mV or 10 mA/mV, accommodating a wide range of current detection needs. Its split core construction provides ease of connection while the shielded probe head, measuring approximately 200 mm by 16 mm by 32 mm, helps prevent accidental grounding, enhancing user safety and circuit integrity.

Equipped with a 1.5-meter cable terminating in a BNC connector, the Tektronix P6021A probe offers compatibility with a broad range of oscilloscopes and ensures reliable signal transmission. It supports current levels up to 10.6 Amp RMS and peak currents up to 250 Amp, making it suitable for demanding industrial, laboratory, and field testing environments.

This probe finds application in various areas including motor drives, power inverters and converters, power supplies, and avionics, where precise current monitoring is critical. The design is optimized for durability and precision in industrial measurement and test scenarios.

Bandwidth range covers 120 Hz to 60 MHz for versatile frequency measurements. Switchable probe sensitivity at 2 mA/mV and 10 mA/mV enhances measurement flexibility. Split core construction enables circuit connection without interruption.

Shielded probe head prevents unintended grounding during use. 1.5 m cable length offers convenient reach to measurement instruments. Supports currents up to 10.6 Amp RMS and 250 Amp peak values. BNC connector ensures broad oscilloscope compatibility.

Applicable in motor drives, power inverters, power supplies, and avionics testing.

Tektronix is a trusted brand in measuring and testing instruments, and the P6021A probe continues this heritage by providing robust, reliable current measurement solutions suitable for industrial, laboratory, HVAC, manufacturing, and electrical engineering applications. Browse the full range of Tektronix instruments at EnvMart for comprehensive test and measurement equipment.
