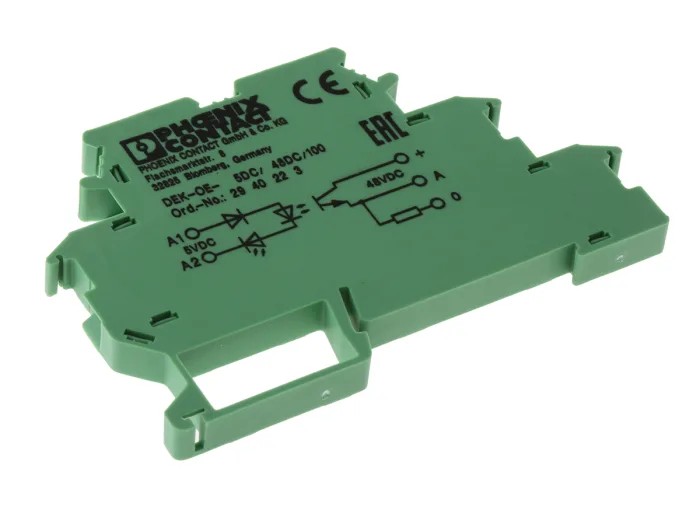

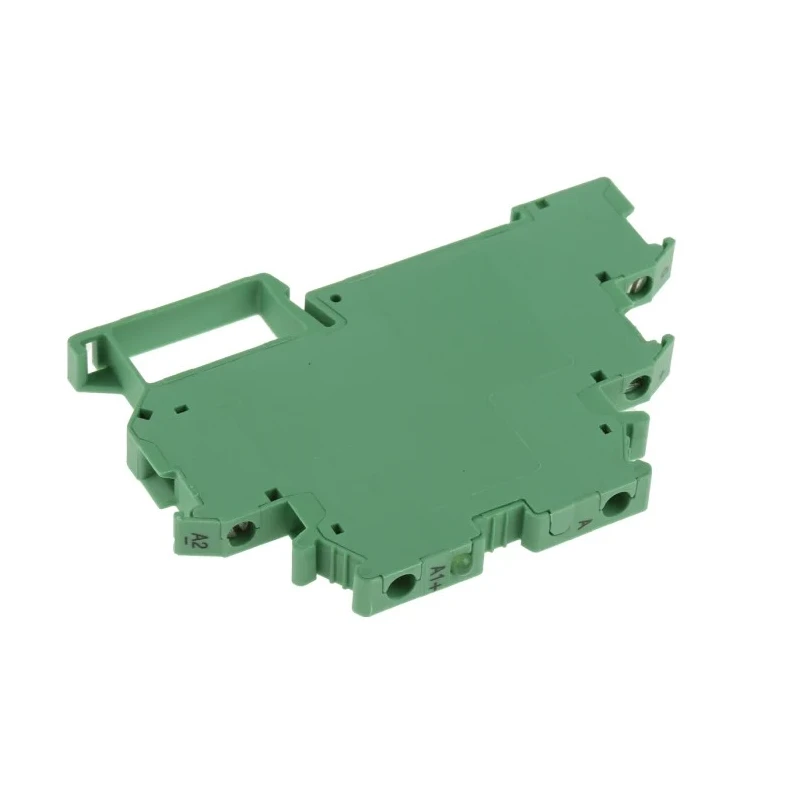

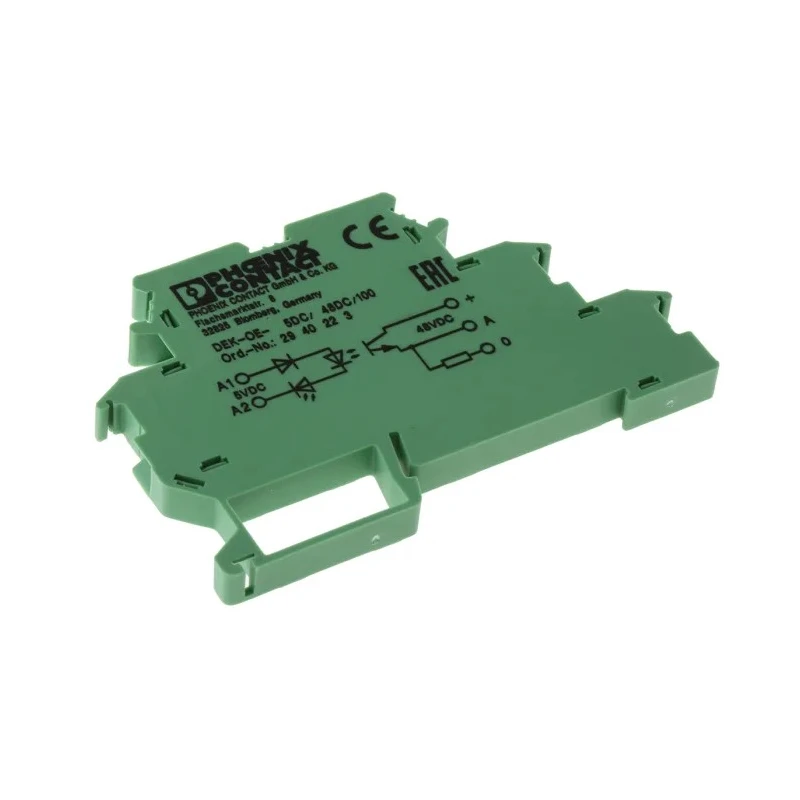

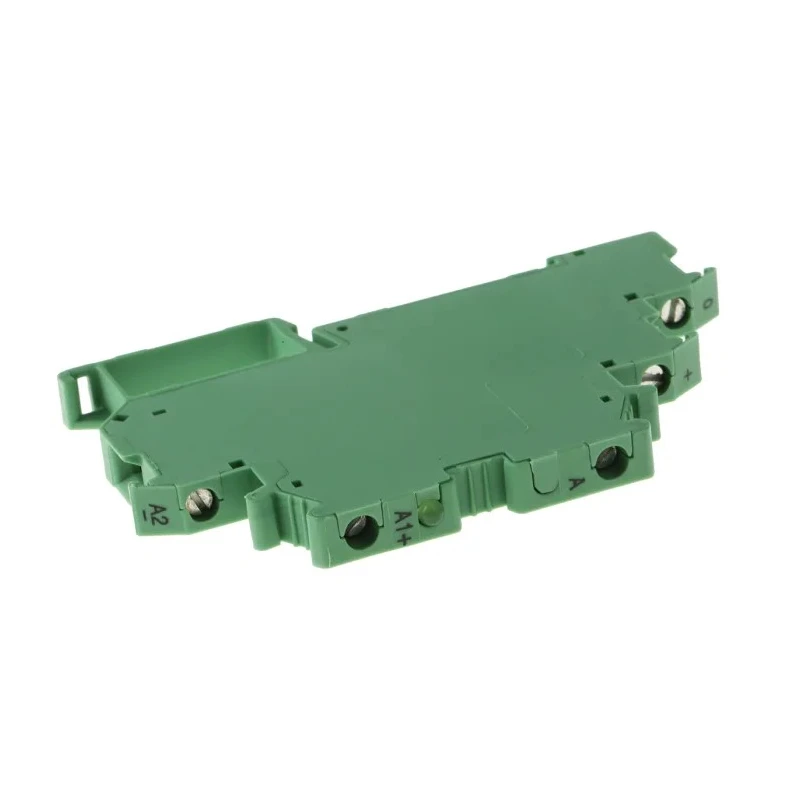

Phoenix Contact DEK-OE- 5DC/ 48DC/100 Solid State Interface Relay 3 V DC, 48 V DC DIN Rail Screw Terminal 2940223

Phoenix Contact 2940223 Solid State Interface Relay is a high-quality DIN rail screw terminal relay suitable for industrial automation and control systems operating at 3 V DC input and 48 V DC output voltages.

This solid state relay module integrates an input circuit, output protective circuit, and a yellow LED status indicator, making it suitable for compact space installations with its 6.2 mm width profile.

It supports wear-free switching with ratings up to 24 V DC/10 A or 240 V AC/800 mA, featuring zero voltage switching at AC output to ensure minimal switching losses and noise. Screw terminals provide reliable and sturdy connections in industrial environments.

Additional protection includes reverse polarity protection and free-wheeling diode protection, enhancing relay longevity and protecting connected equipment.

This device is ideal for a variety of industrial applications including power amplification, electrical isolation, and voltage adjustment in frequency varying voltage systems. It mounts easily on standard NS 35/7.5 DIN rails.

The relay uses screw-type terminals for secure connections. Compact DIN rail mountable design with 6.2 mm width. Offers zero voltage switching at AC output and wear-free switching up to 24 V DC/10 A or 240 V AC/800 mA. Includes a yellow LED status indicator for operational monitoring.

Equipped with reverse polarity and free-wheeling diode protection for enhanced durability. Suitable for power amplification and electrical isolation applications. Designed for mounting on NS 35/7.5 DIN rails, saving installation space.

Dimensions: 6.2 x 80 x 56 mm. Manufactured in China, this product is new and adheres to high quality standards, making it well suited for industrial electrical and automation uses. Explore EnvMart's extensive range of Solid State Interface Relays for advanced industrial control solutions.
